Monitored Item

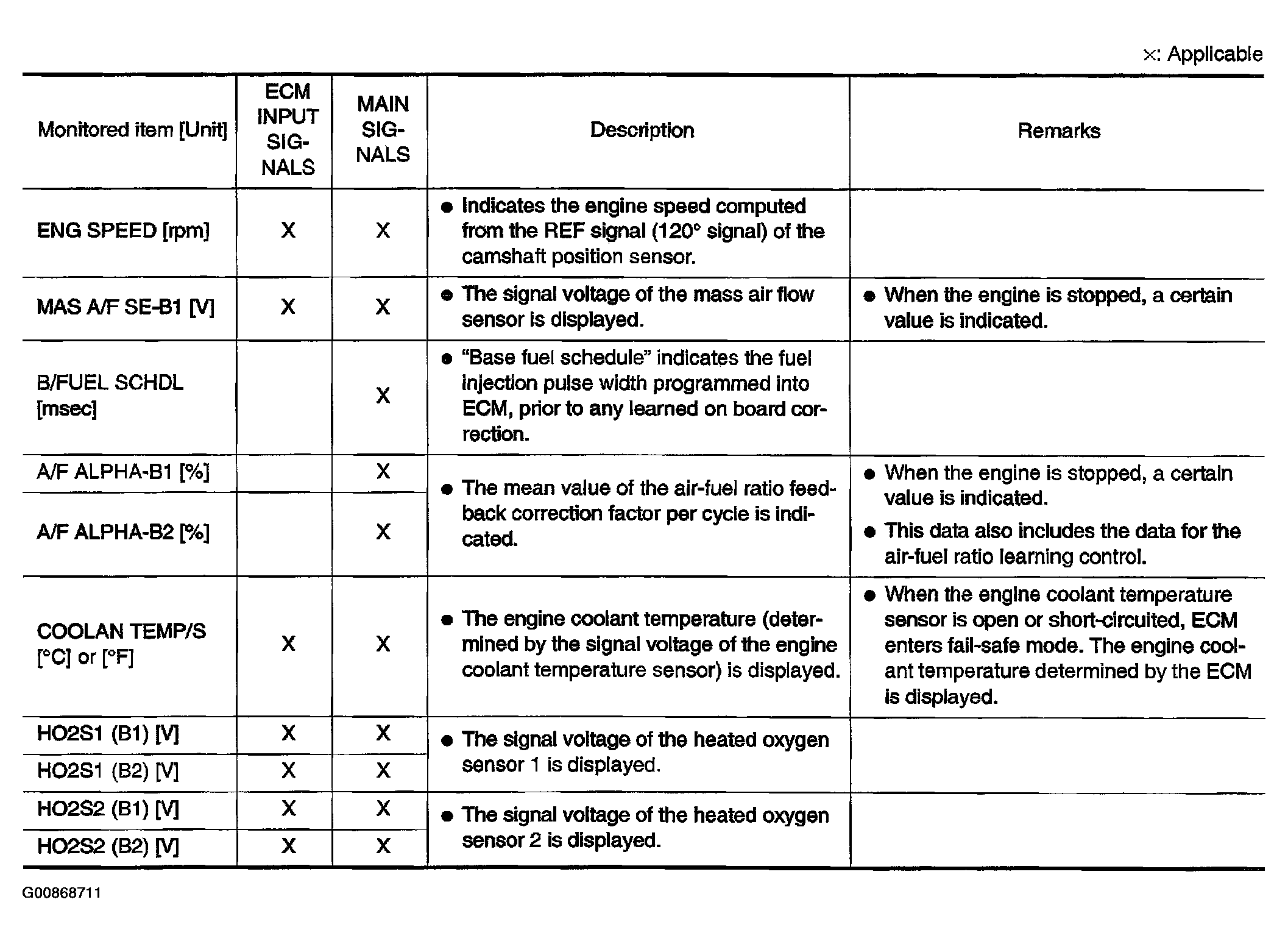

Fig 1: DATA MONITOR MODE (Monitored Item) Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

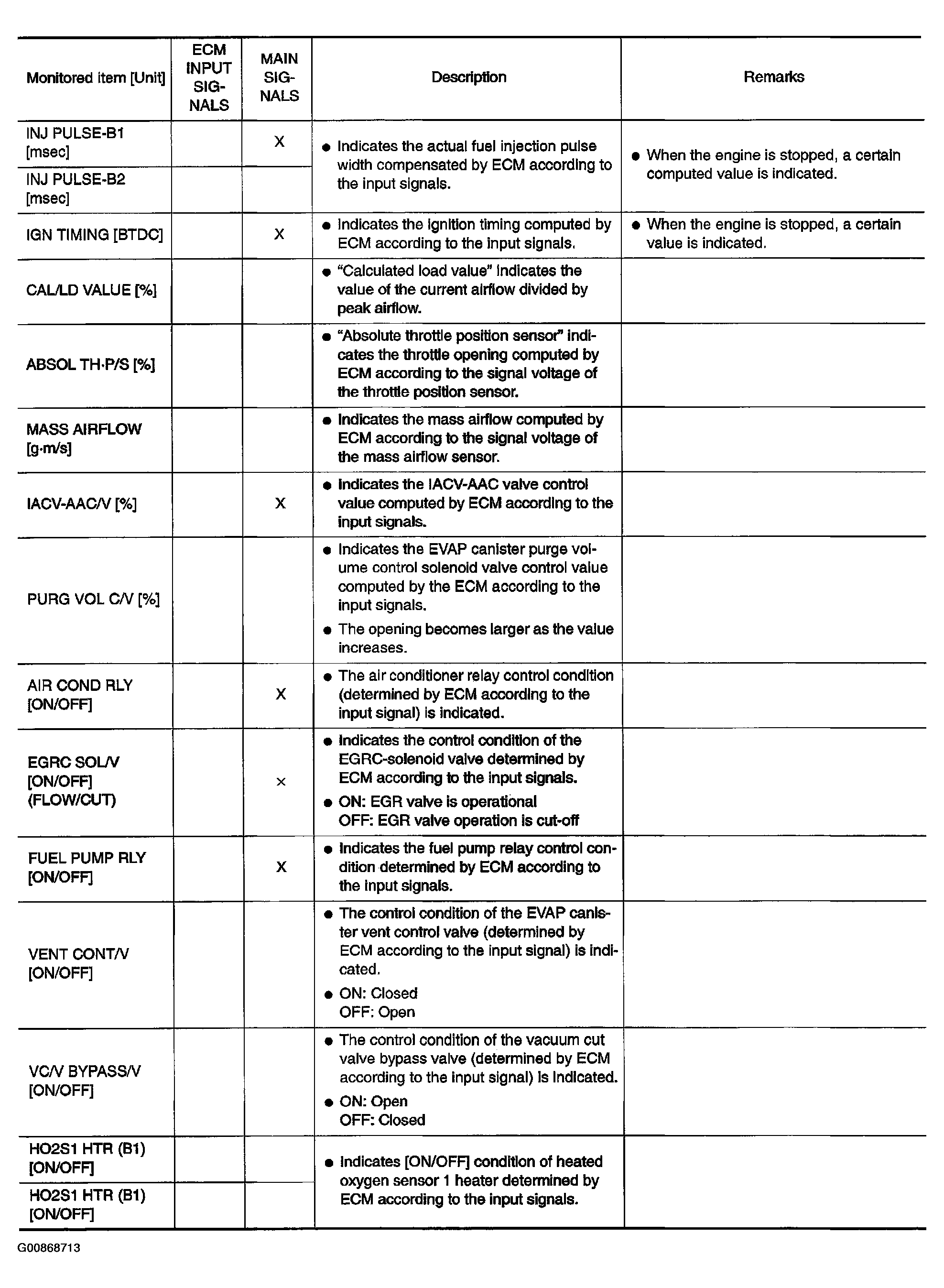

Fig 2: DATA MONITOR MODE (Monitored Item) Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

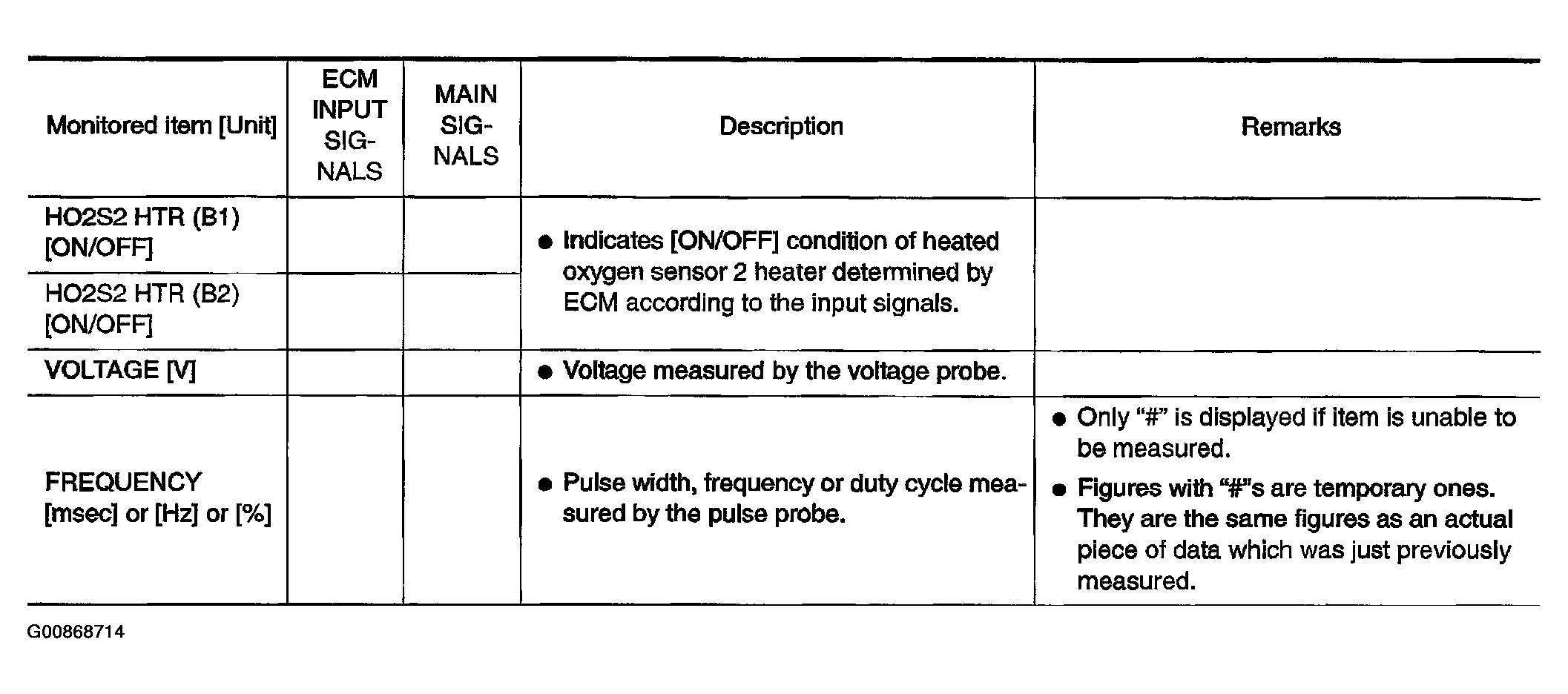

Fig 3: DATA MONITOR MODE (Monitored Item) Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

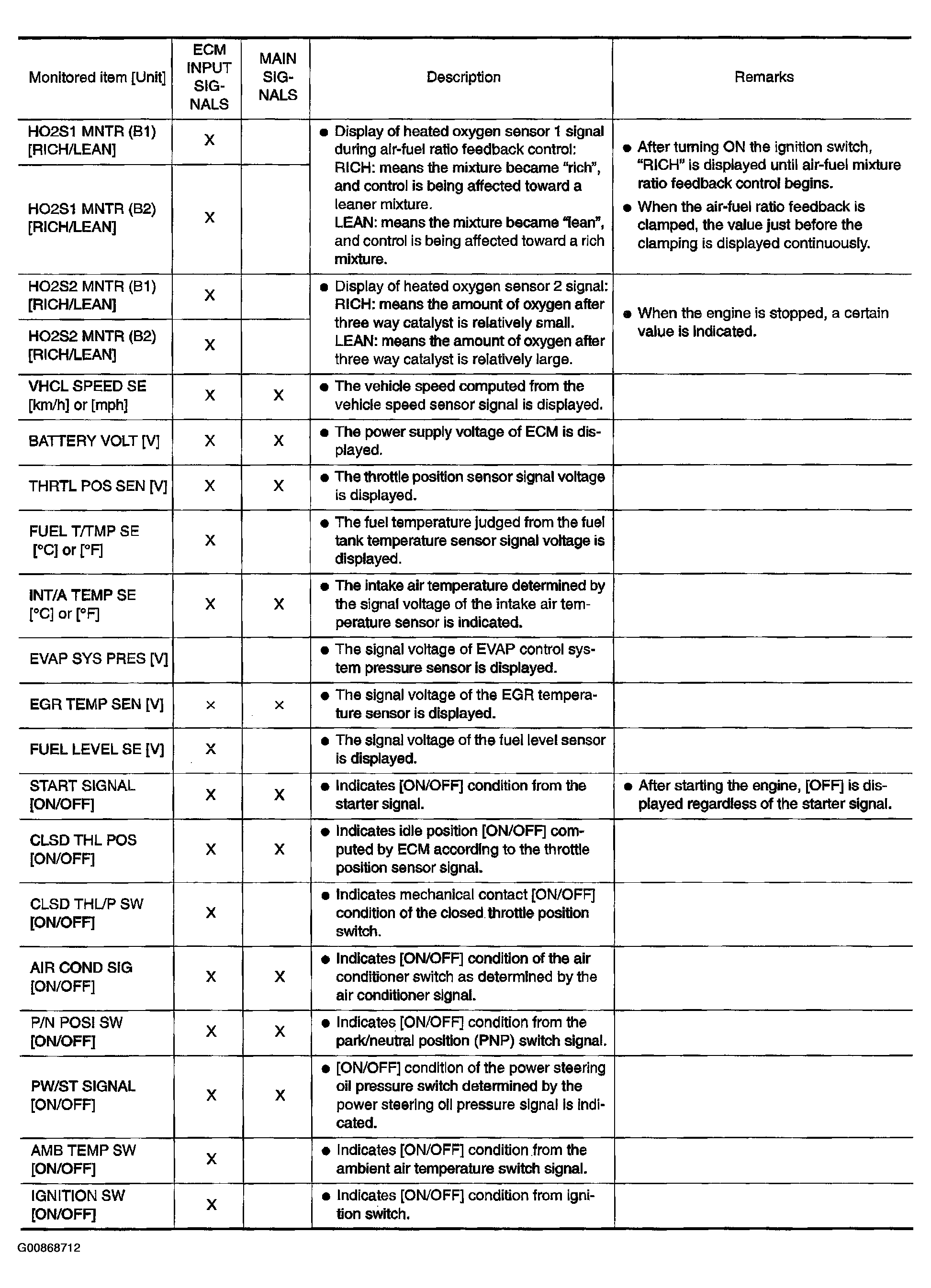

Fig 4: DATA MONITOR MODE (Monitored Item) Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
