Engine Control System - VG33E
›
Trouble Diagnosis
›
CONSULT-II Function
›
Work Support Mode
Work Support Mode

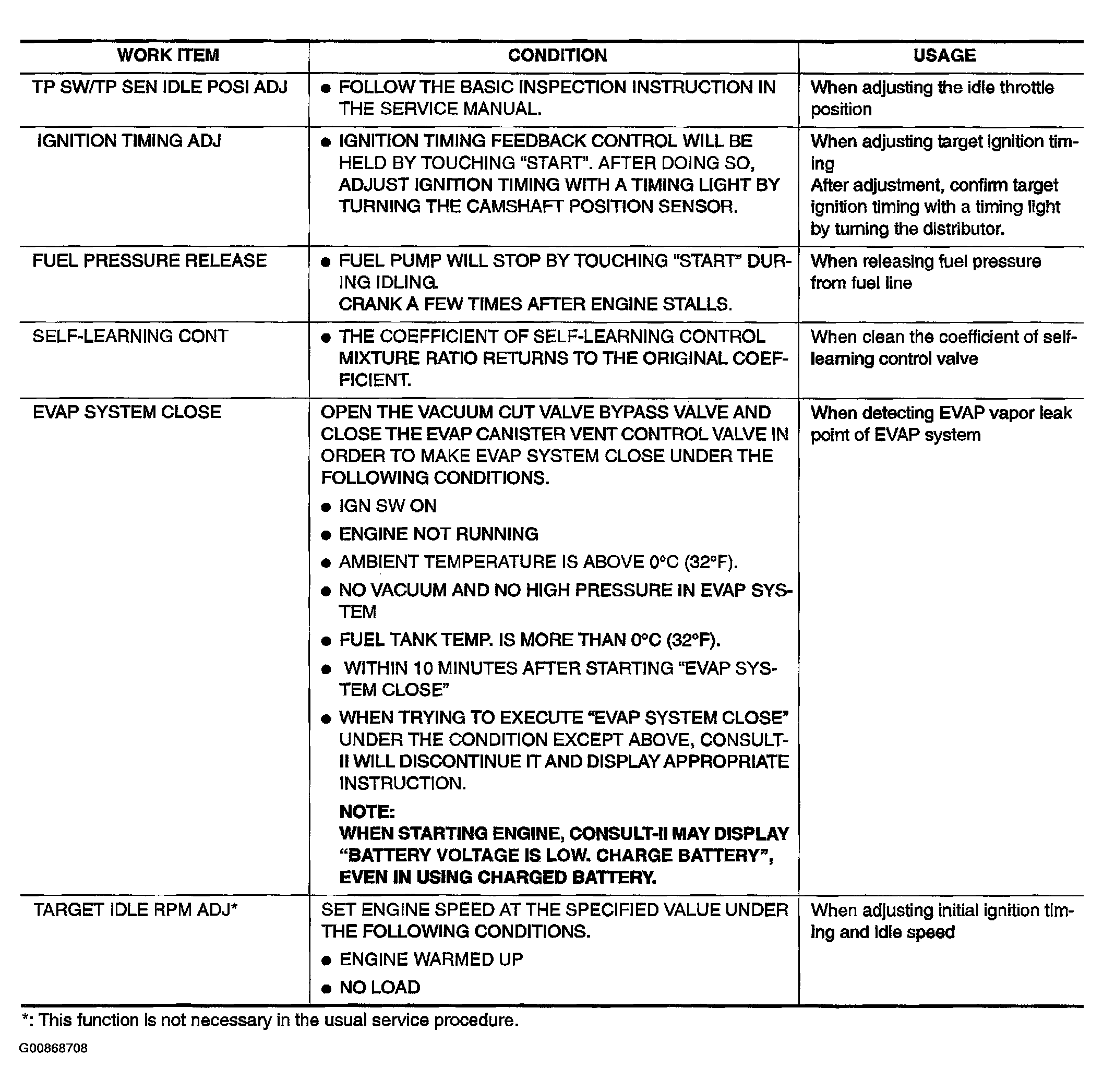

Fig 1: Work Item Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
