Engine Control System - VG33E
›
Trouble Diagnosis
›
Symptom Matrix Chart
›
System - Basic Engine Control System
System - Basic Engine Control System

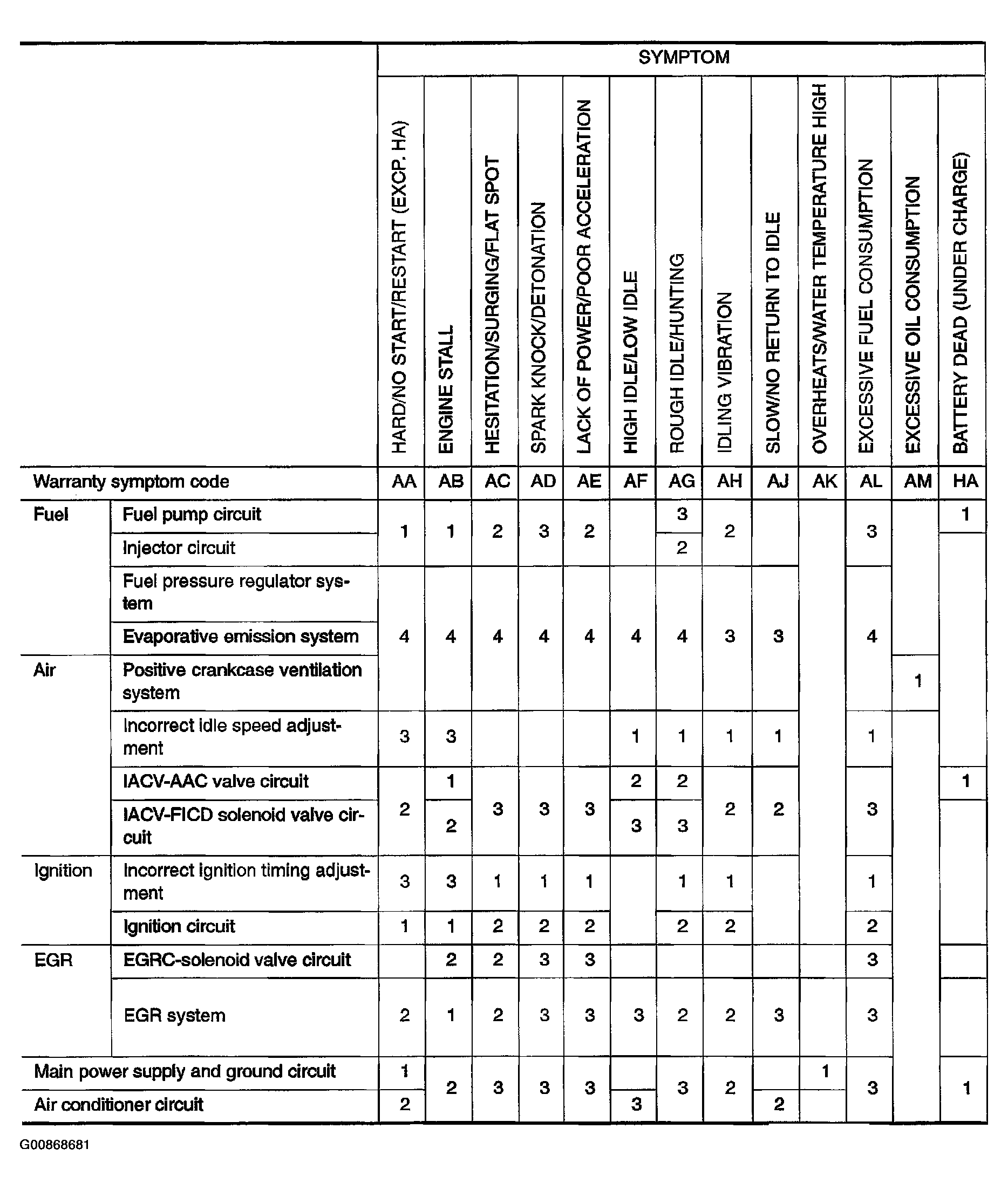

Fig 1: Symptom Matrix Chart (System - Basic Engine Control System) (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

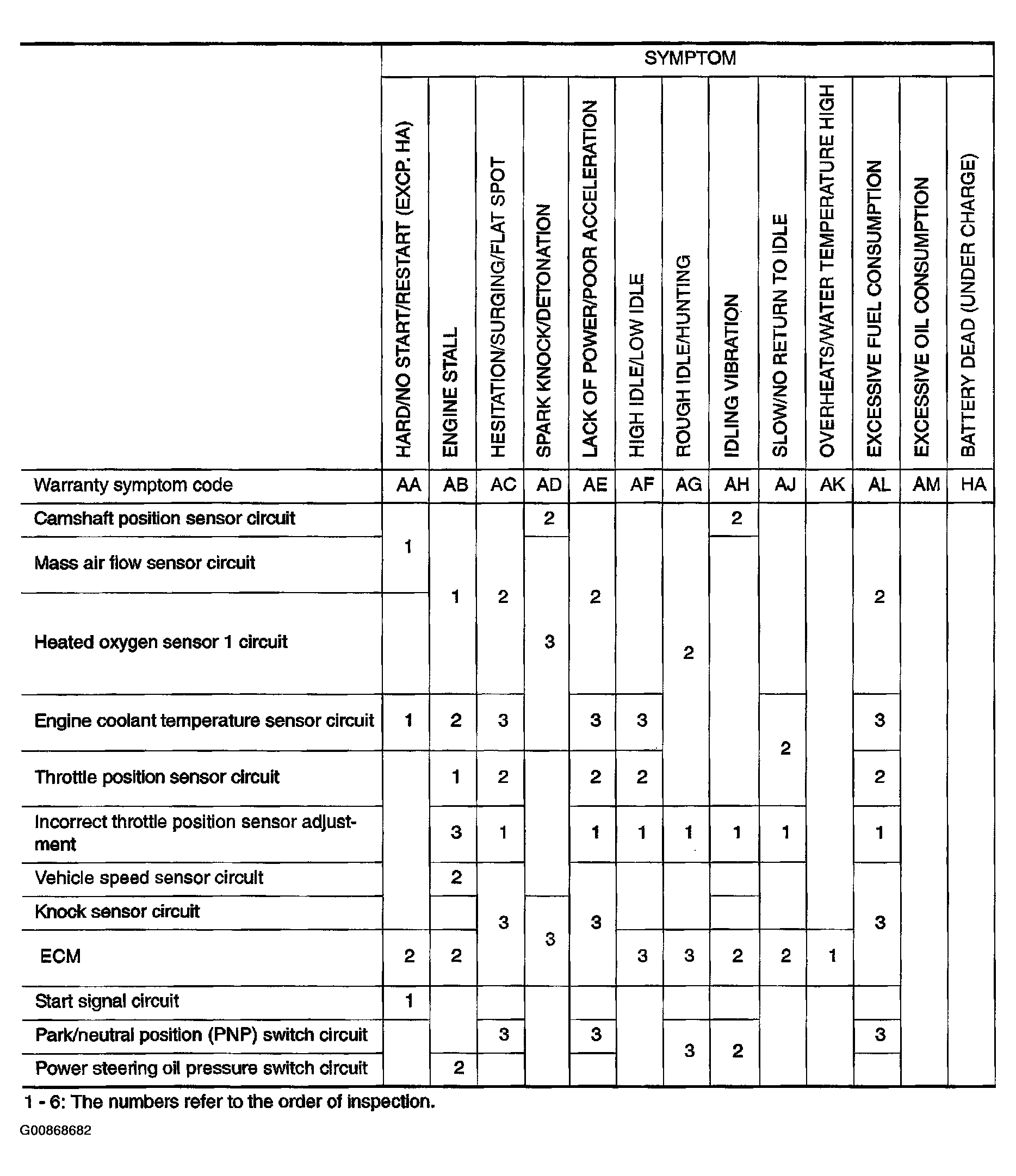

Fig 2: Symptom Matrix Chart (System - Basic Engine Control System) (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
