Data Monitor Mode
Data Monitor Mode

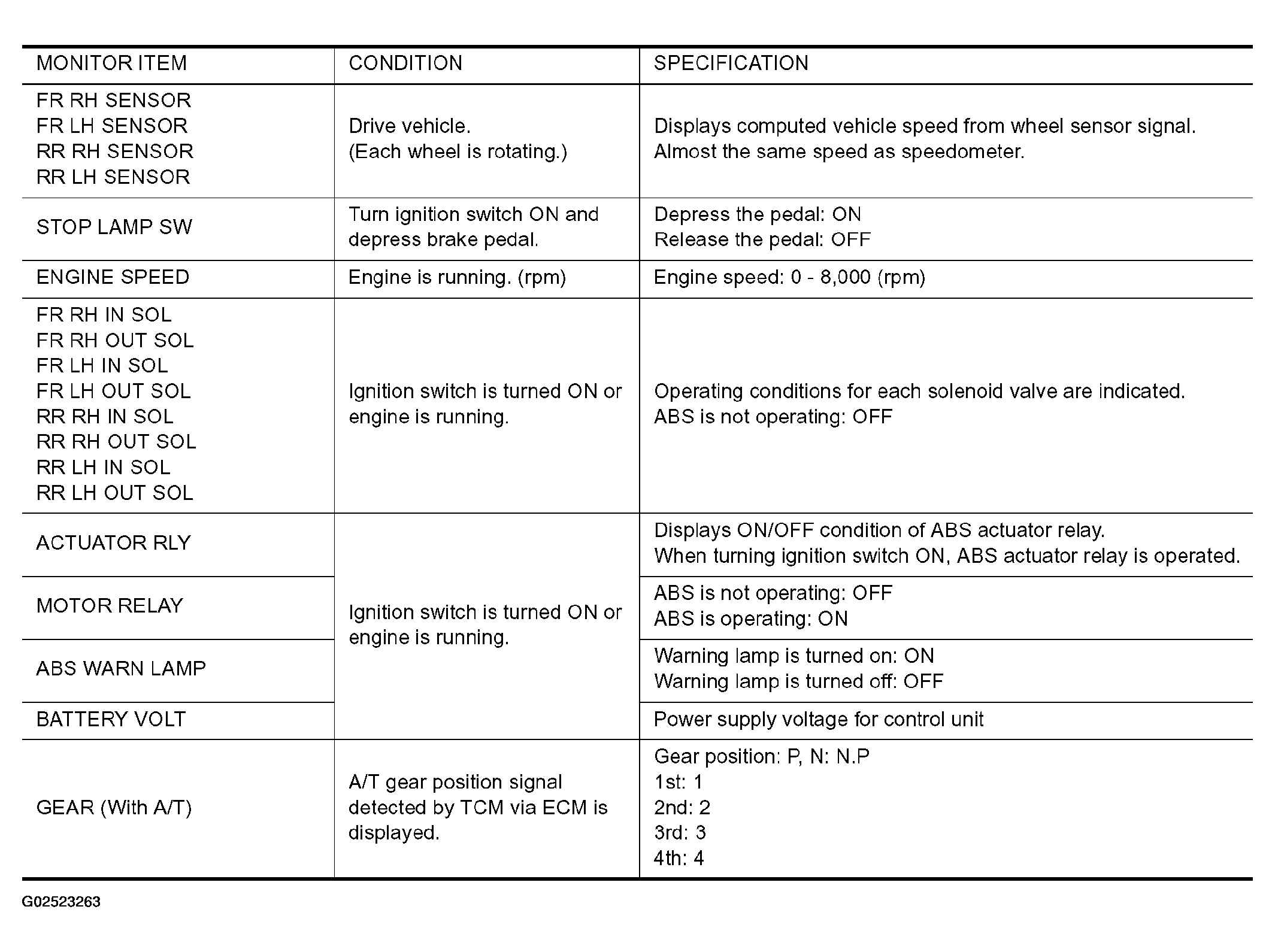

Fig 1: Data Monitor Mode Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

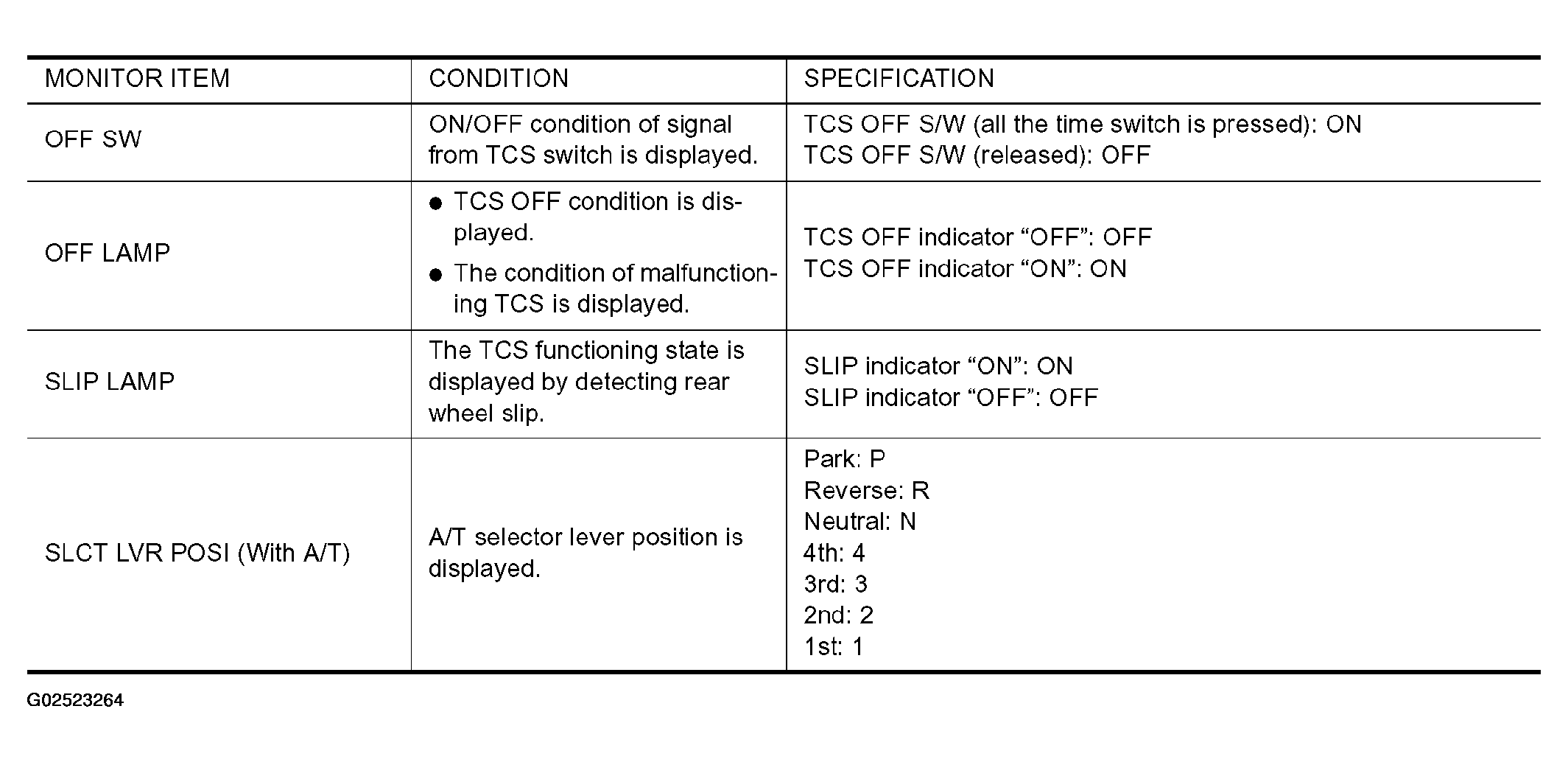

Fig 2: Data Monitor Mode Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
