Generic Scan Tool (GST) Function: Function

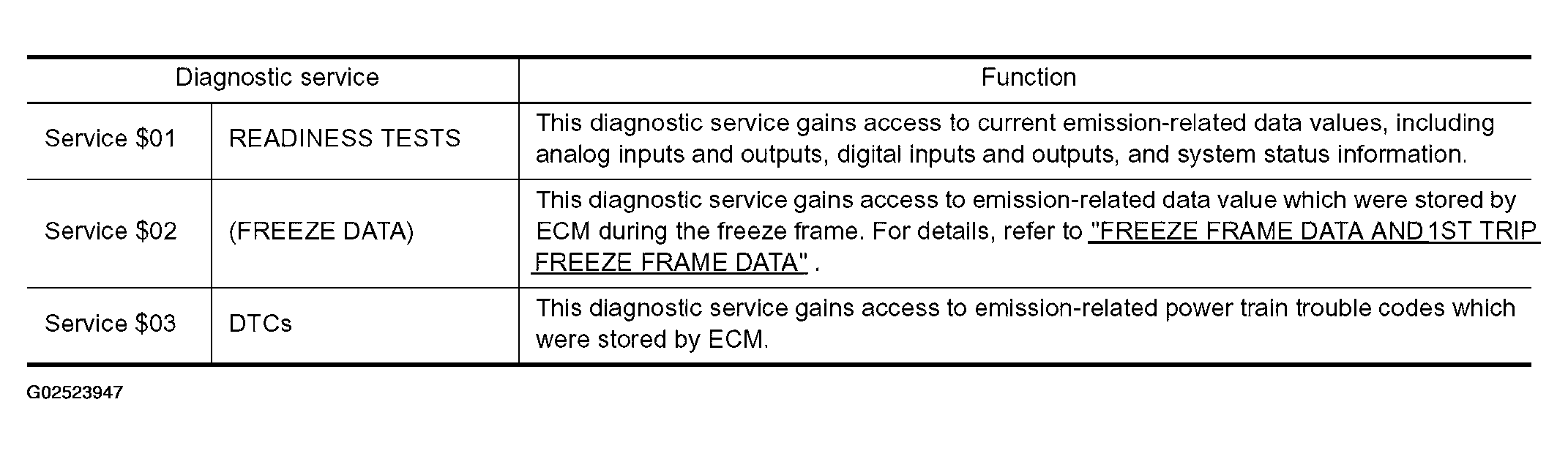

Fig 1: Function Description (1 Of 2)

G02523947

Courtesy of NISSAN MOTOR CO., U.S.A.

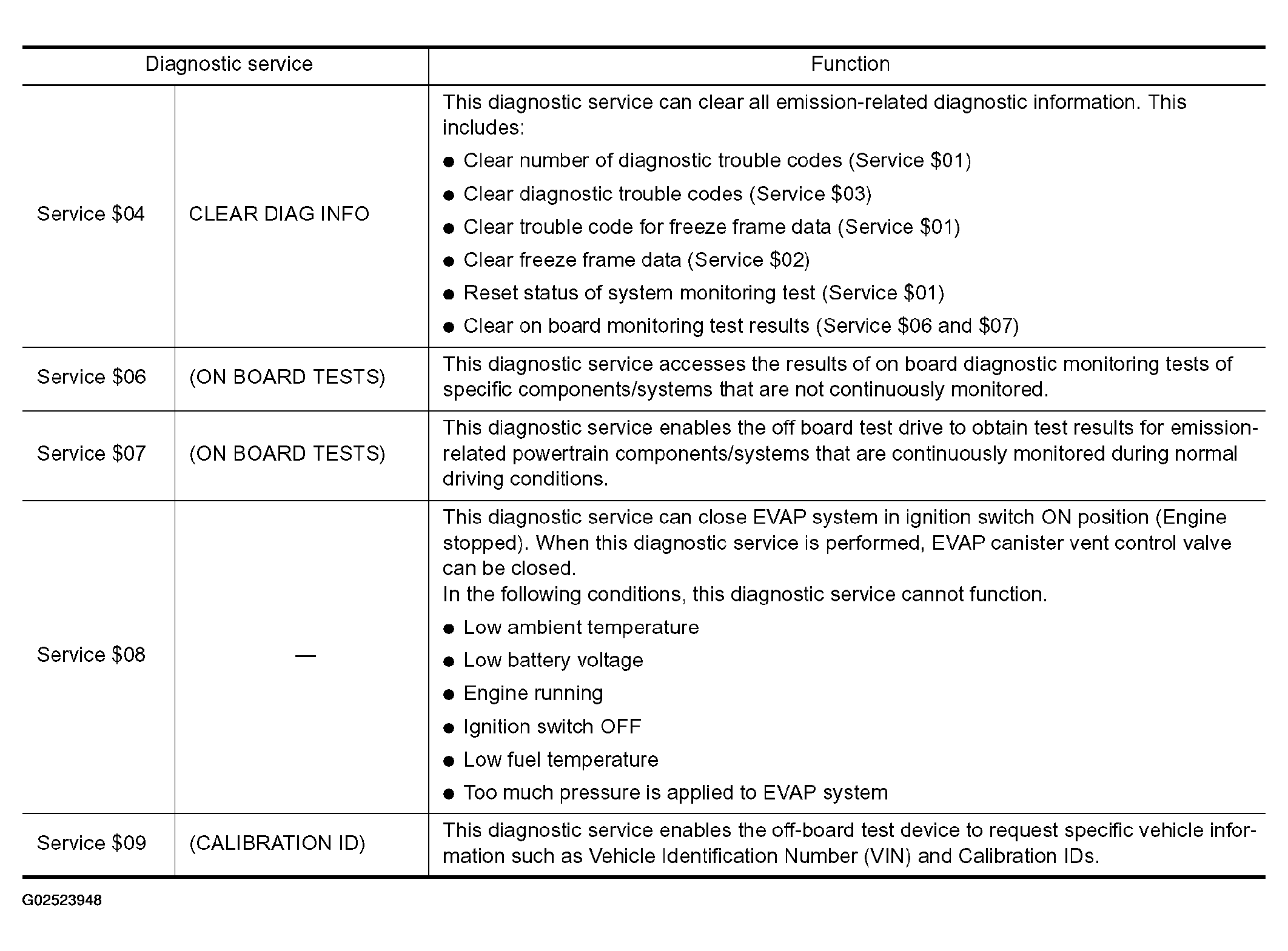

Fig 2: Function Description (2 Of 2)

G02523948

Courtesy of NISSAN MOTOR CO., U.S.A.
