Major Components And Control System

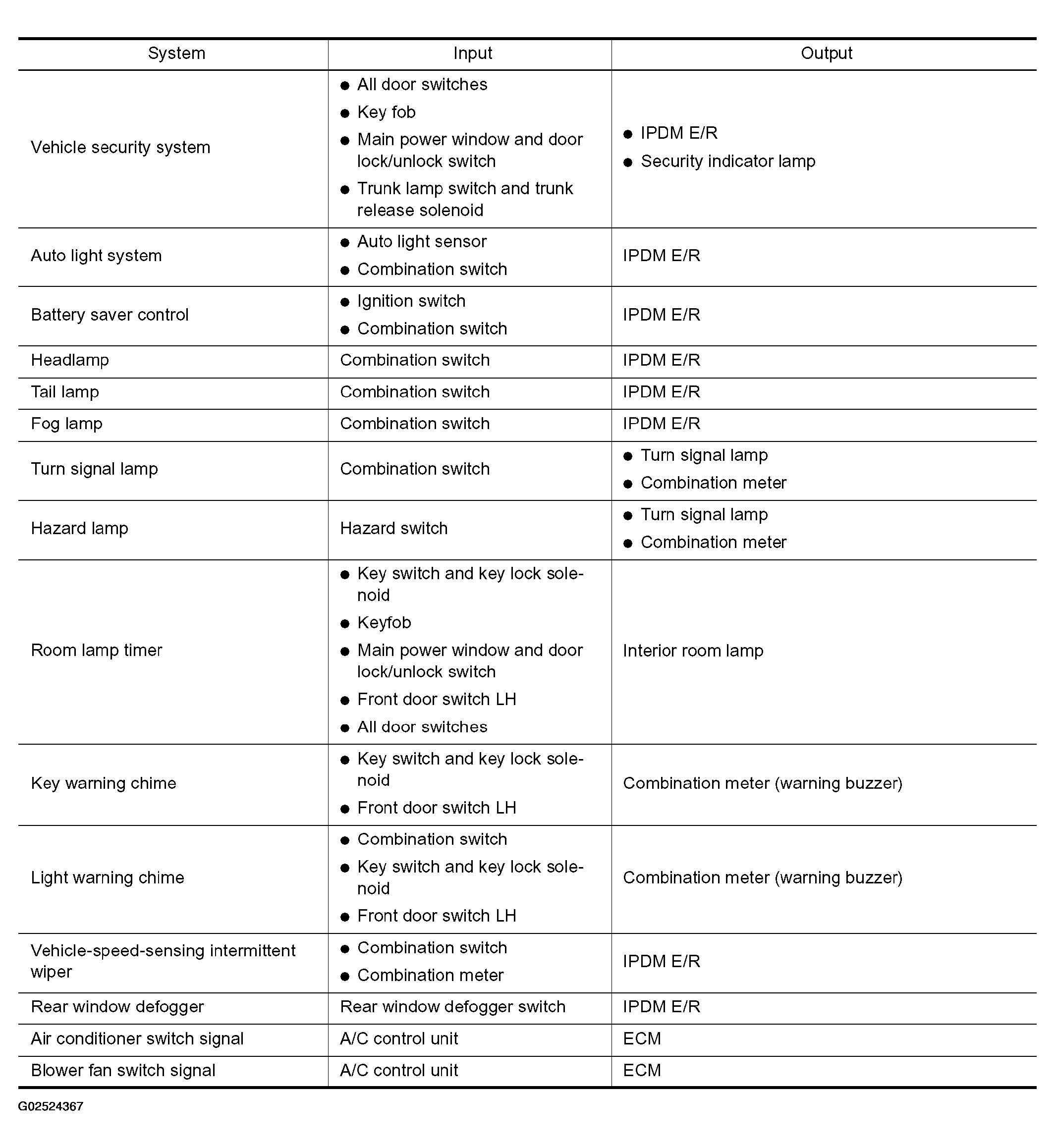

Fig 1: Major Components And Control System Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

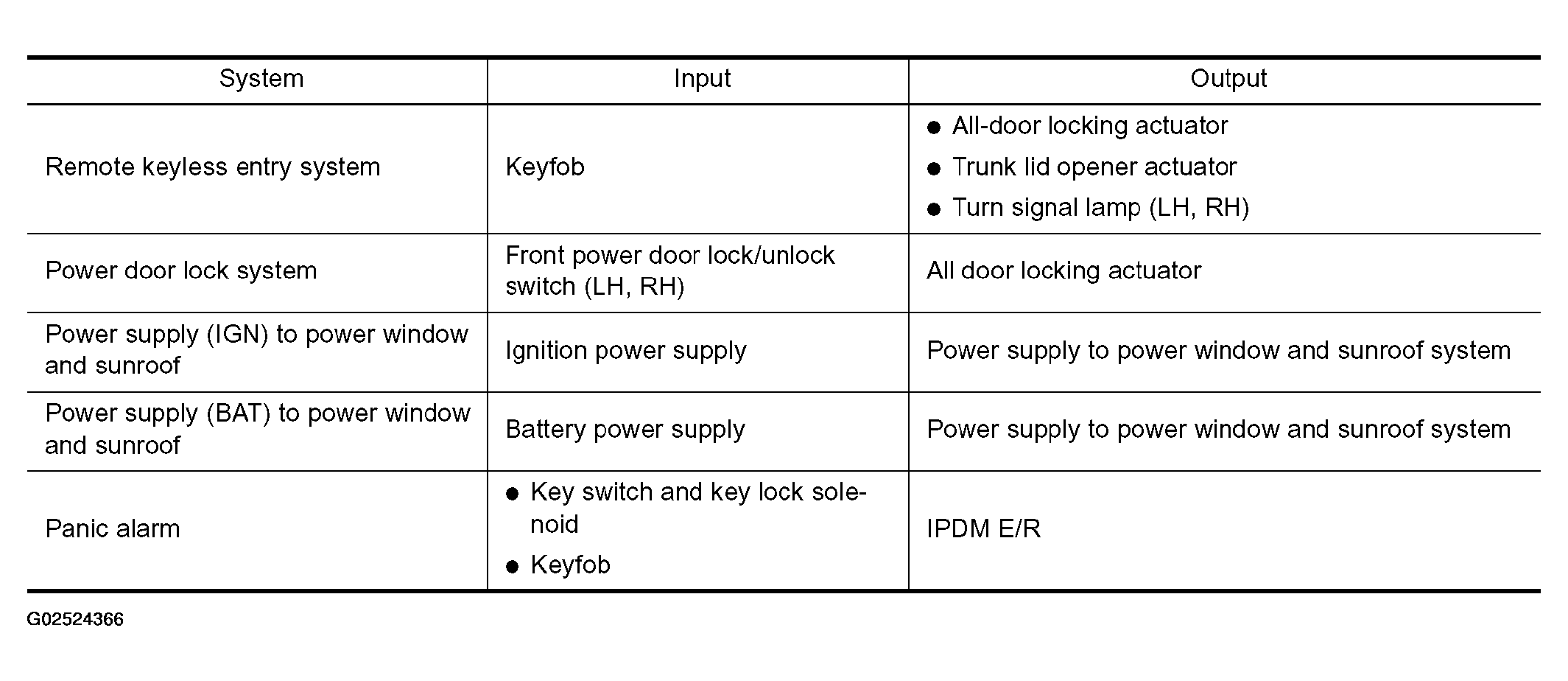

Fig 2: Major Components And Control System Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
