Alphabetical Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".

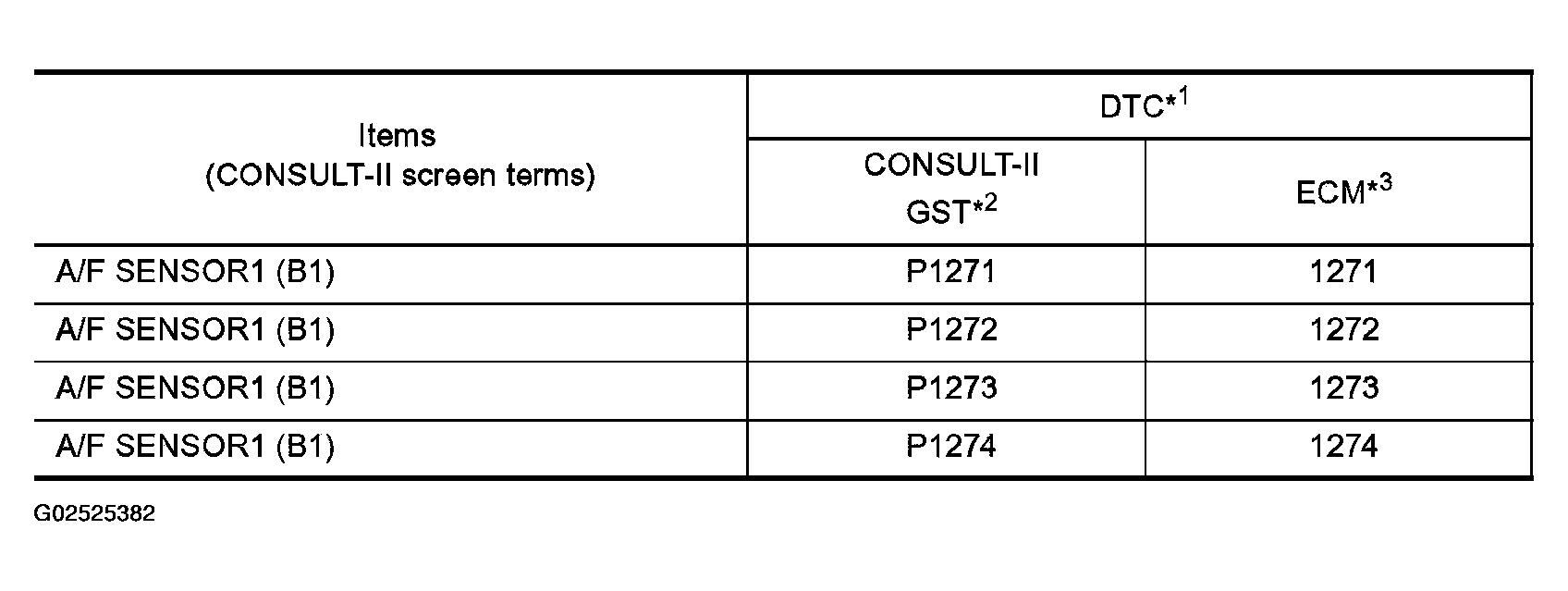

Fig 1: DTC Alphabetical Chart (1 Of 5)

G02525382

Courtesy of NISSAN MOTOR CO., U.S.A.

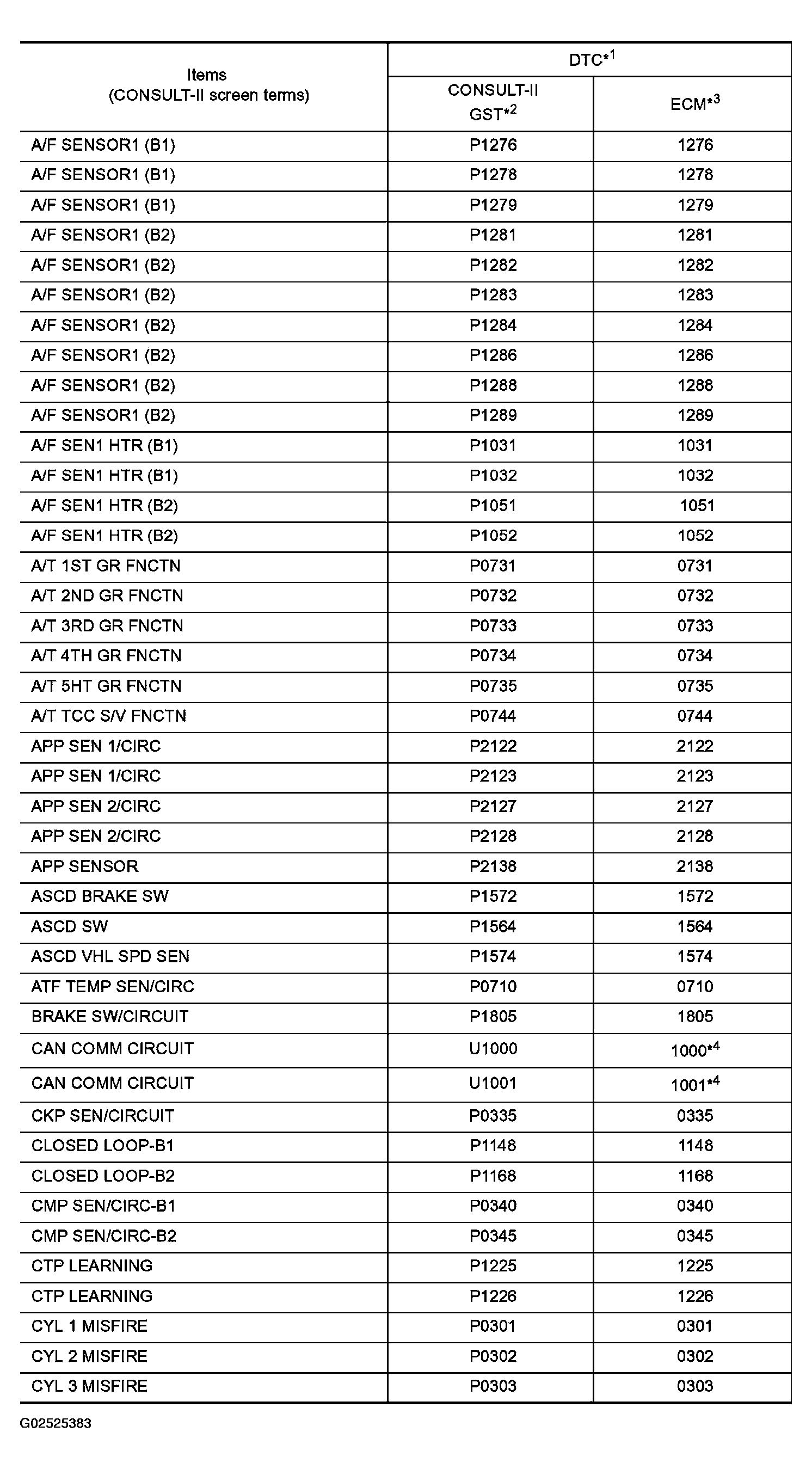

Fig 2: DTC Alphabetical Chart (2 Of 5)

G02525383

Courtesy of NISSAN MOTOR CO., U.S.A.

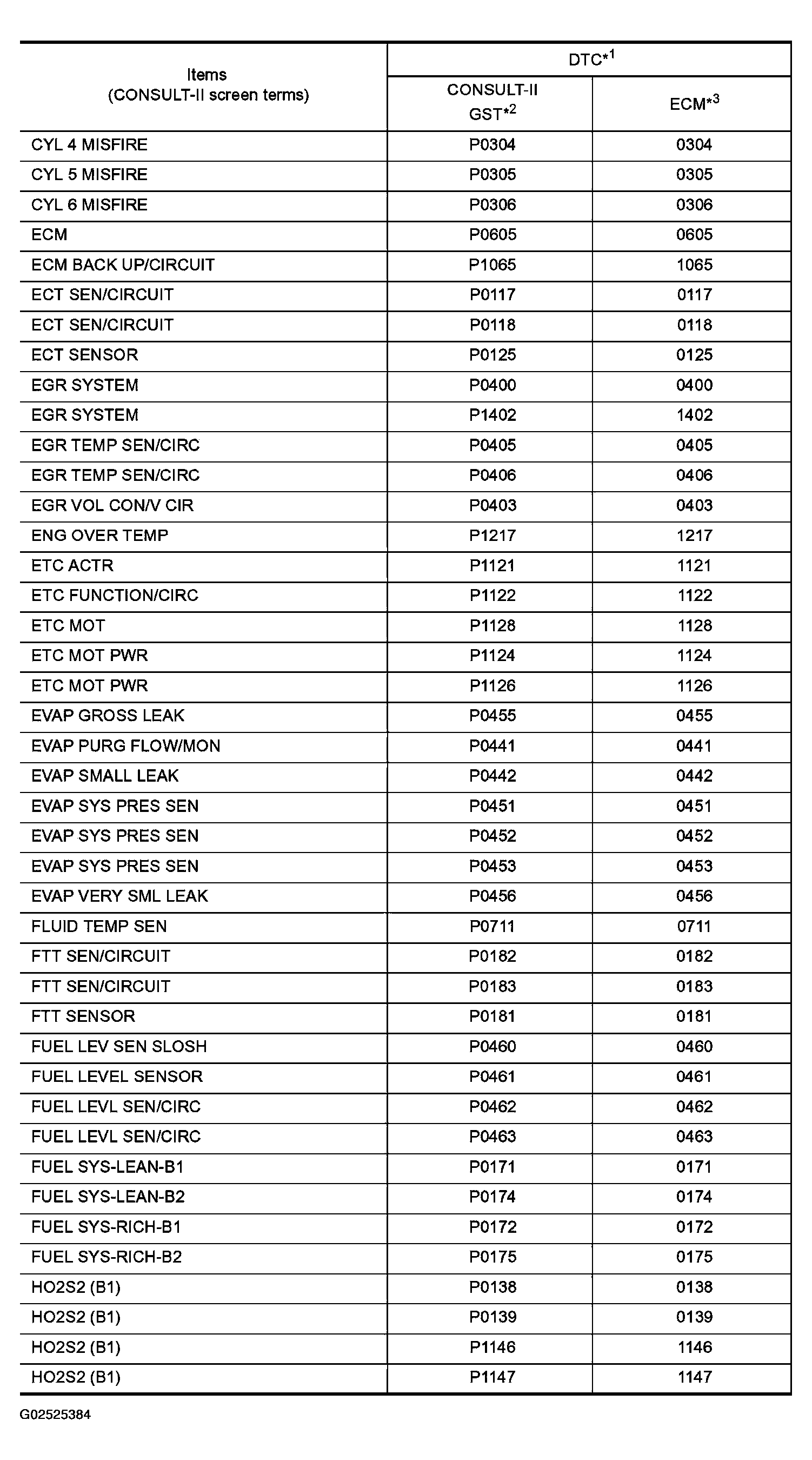

Fig 3: DTC Alphabetical Chart (3 Of 5)

G02525384

Courtesy of NISSAN MOTOR CO., U.S.A.

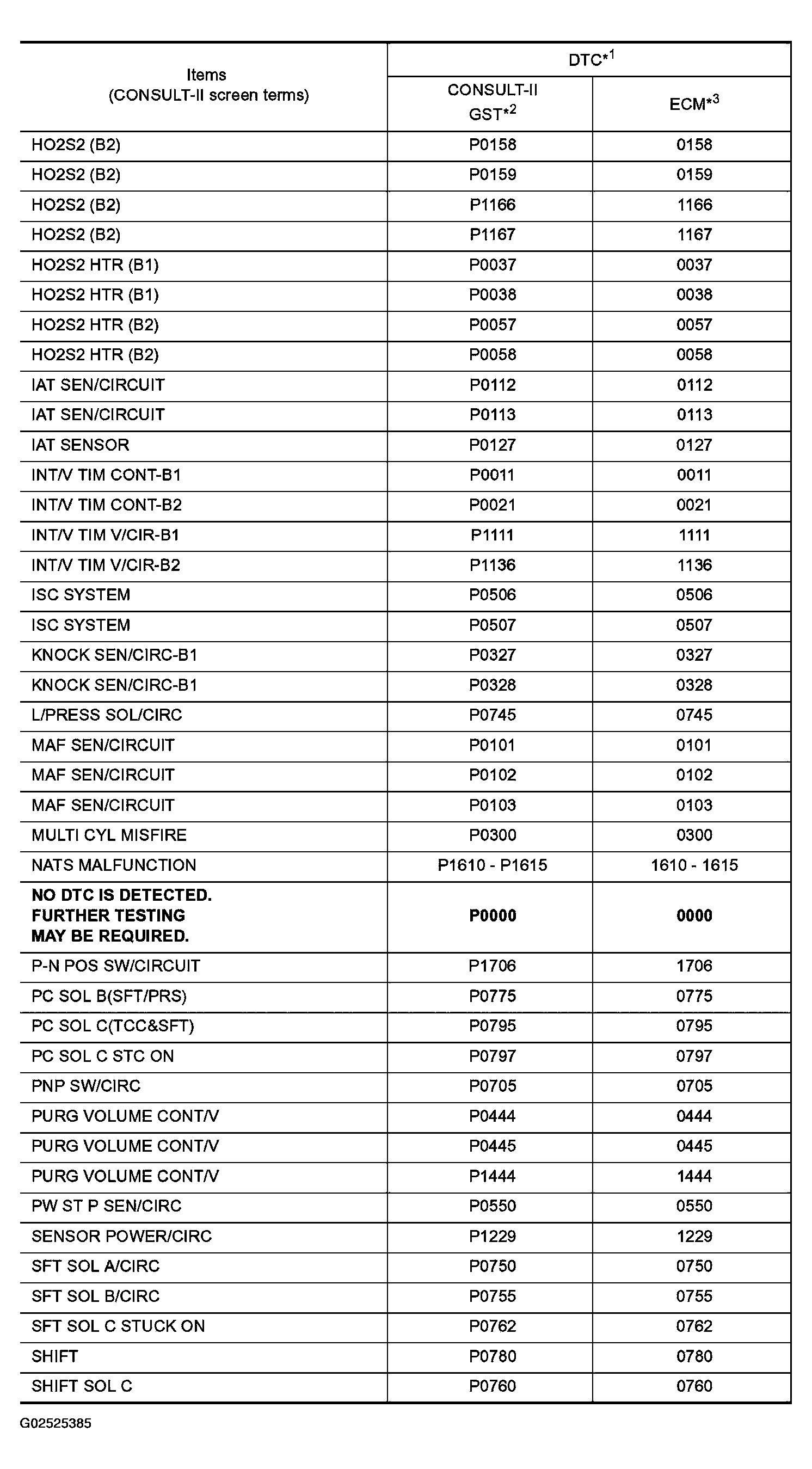

Fig 4: DTC Alphabetical Chart (4 Of 5)

G02525385

Courtesy of NISSAN MOTOR CO., U.S.A.

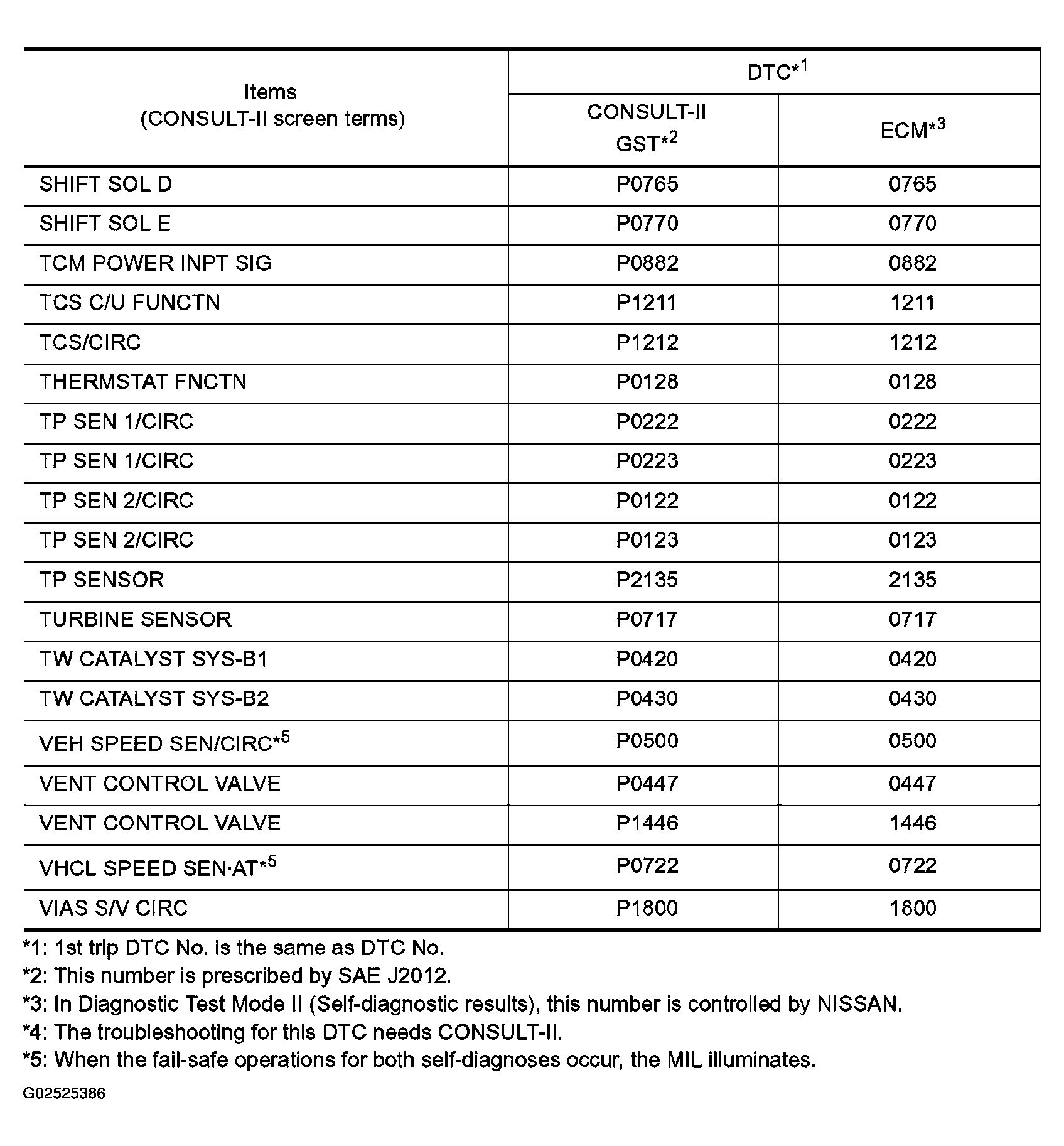

Fig 5: DTC Alphabetical Chart (5 Of 5)

G02525386

Courtesy of NISSAN MOTOR CO., U.S.A.
