CONSULT-II Reference Value in Data Monitor

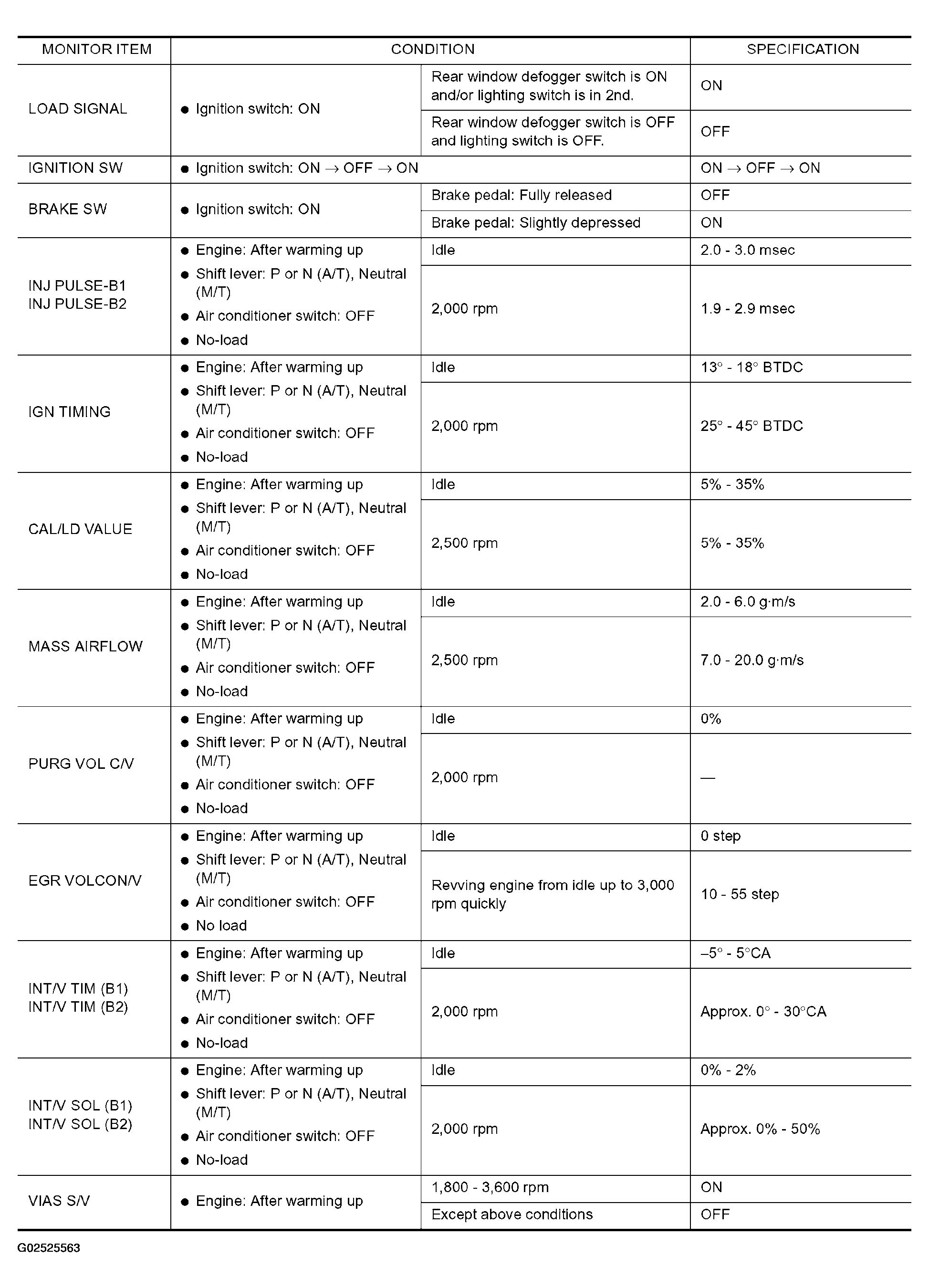

Fig 1: Monitor Item Condition And Specification Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

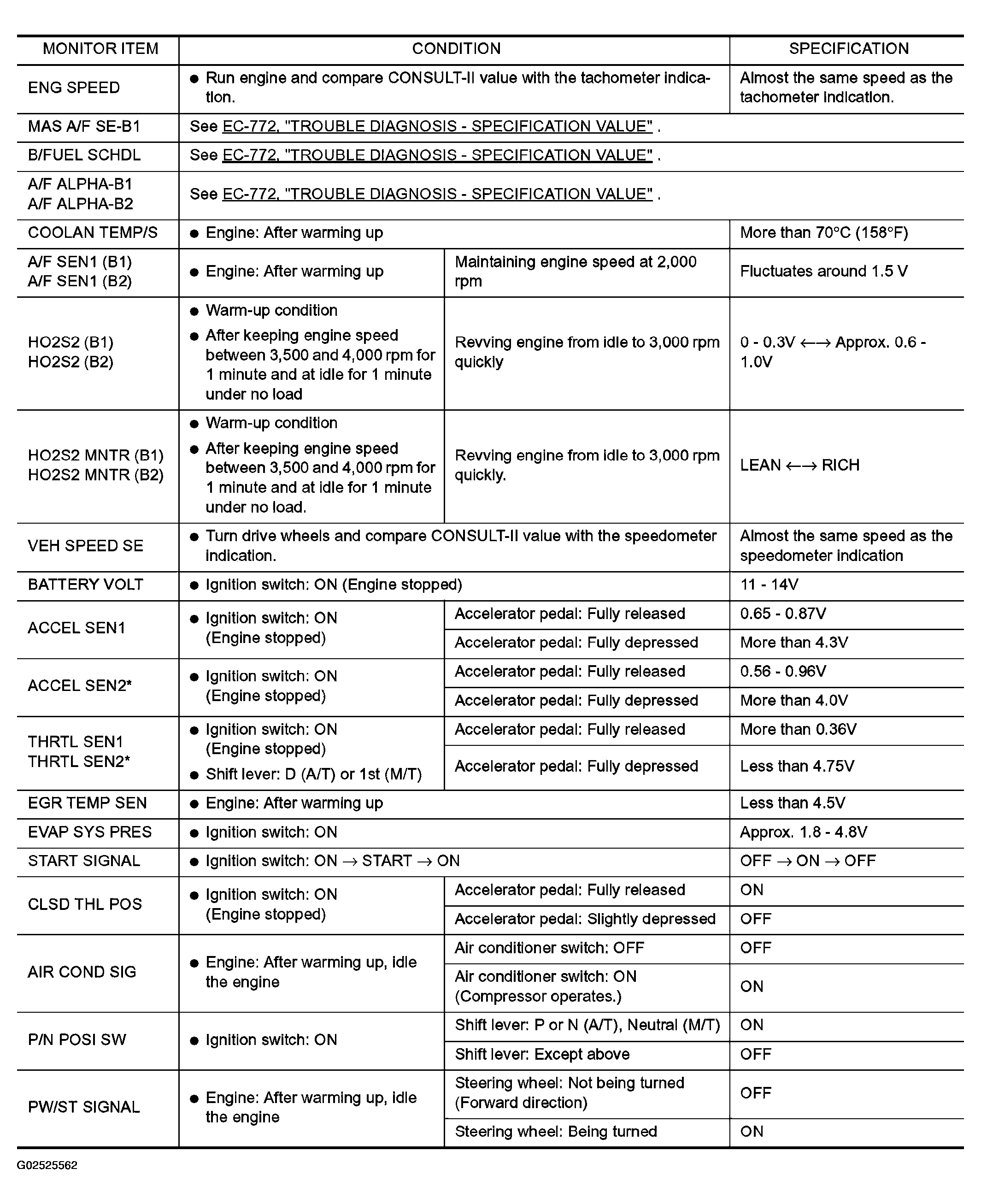

Fig 2: Monitor Item Condition And Specification Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

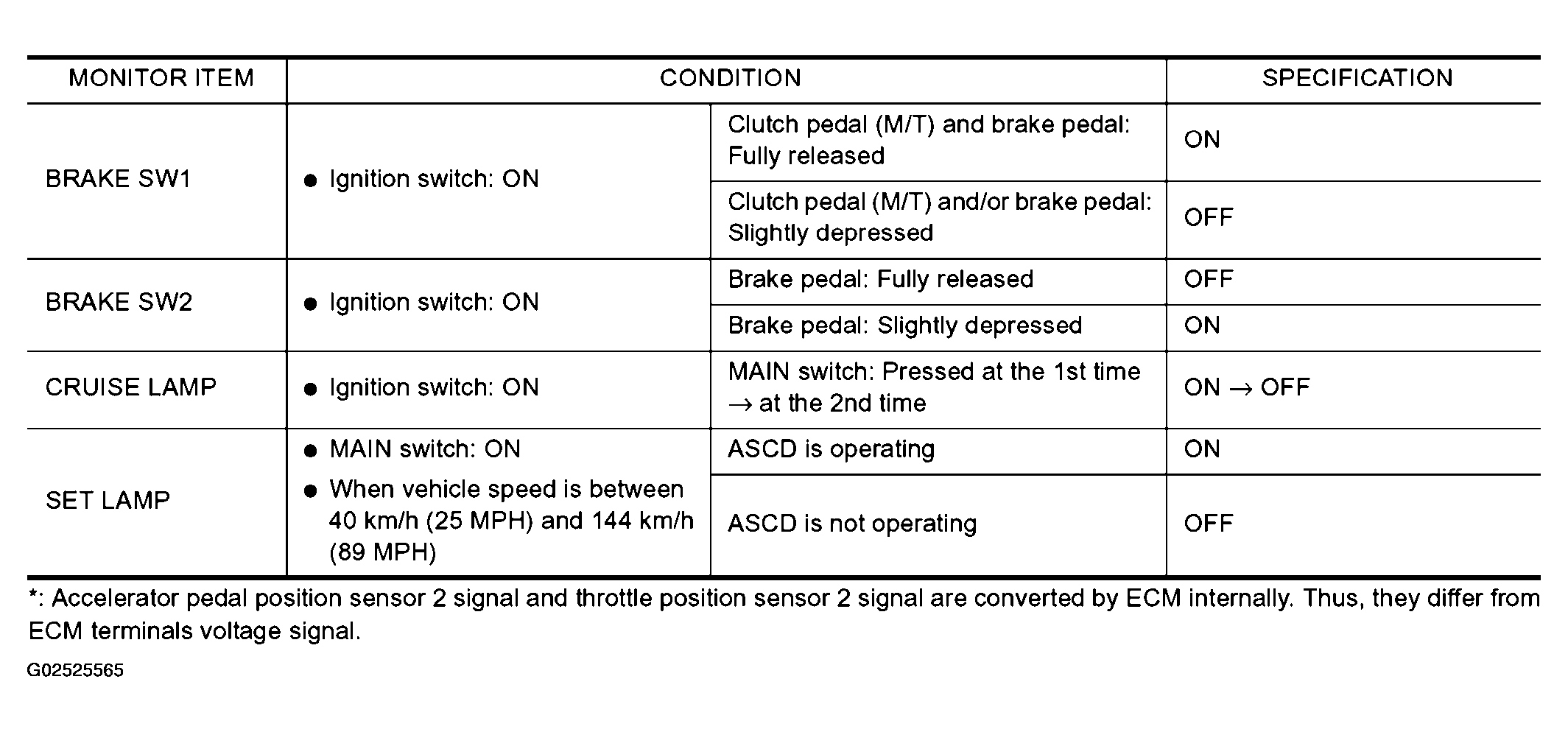

Fig 3: Monitor Item Condition And Specification Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

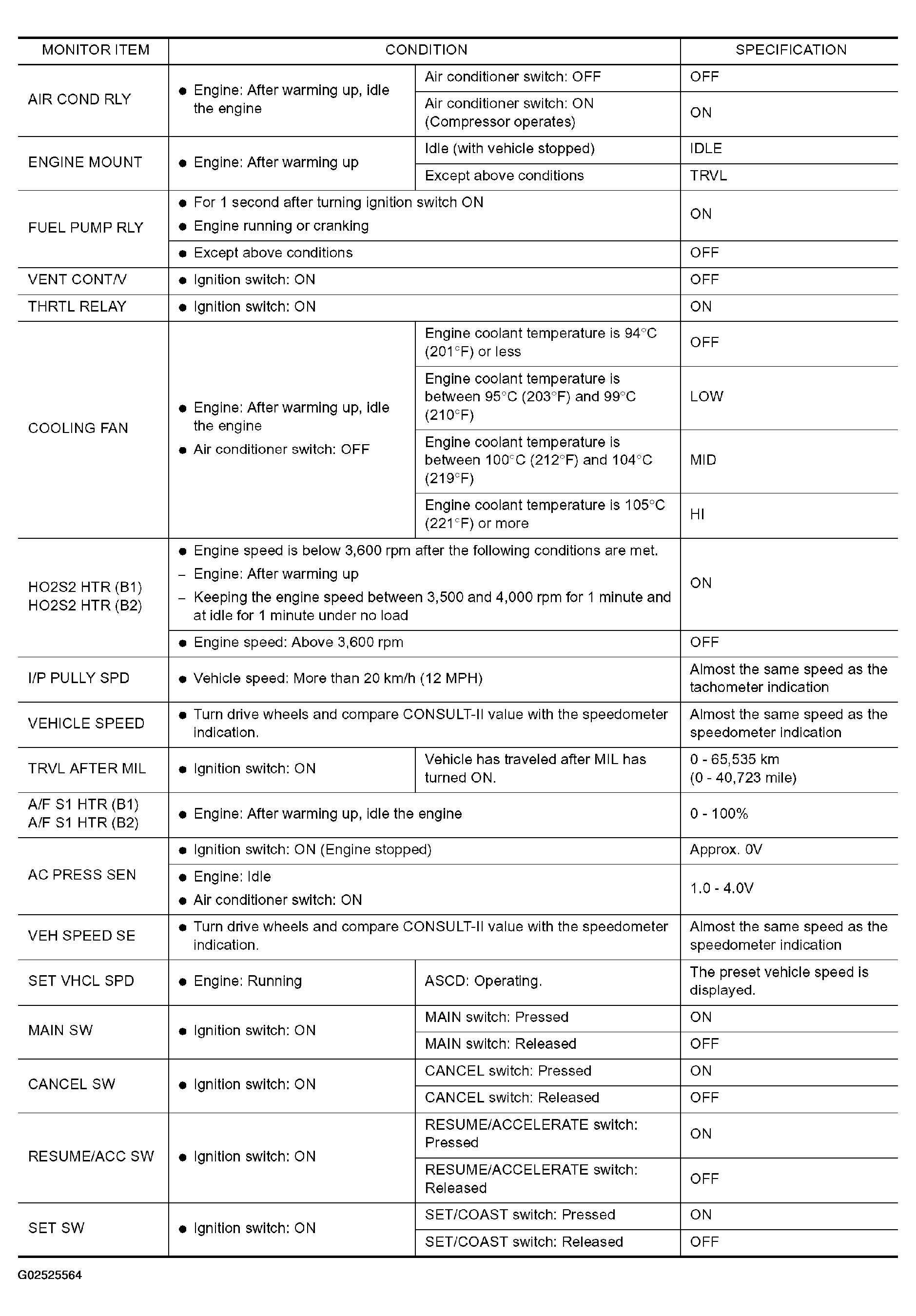

Fig 4: Monitor Item Condition And Specification Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
