Passenger Compartment

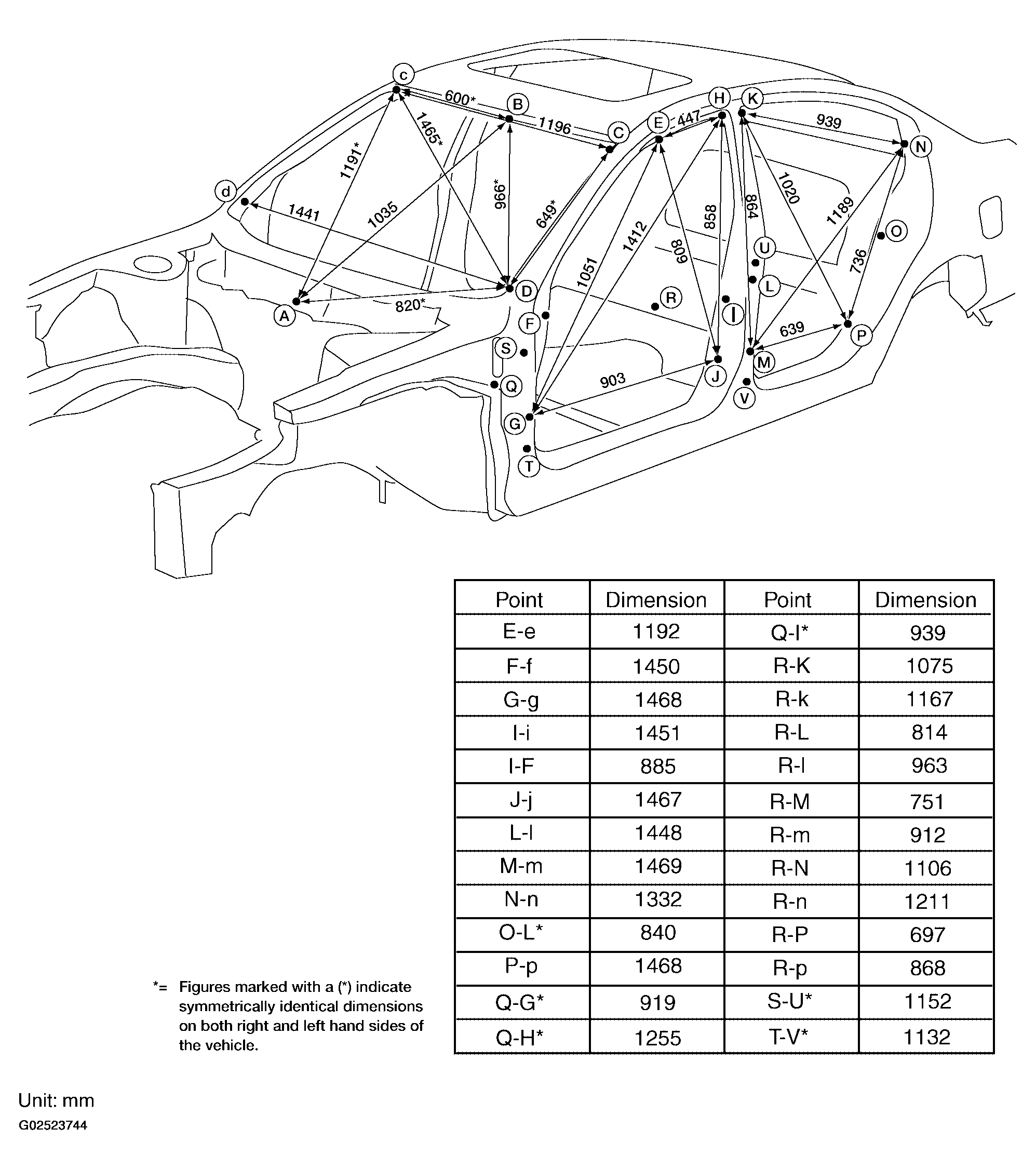

Fig 1: Measurement Of Passenger Compartment
Courtesy of NISSAN MOTOR CO., U.S.A.

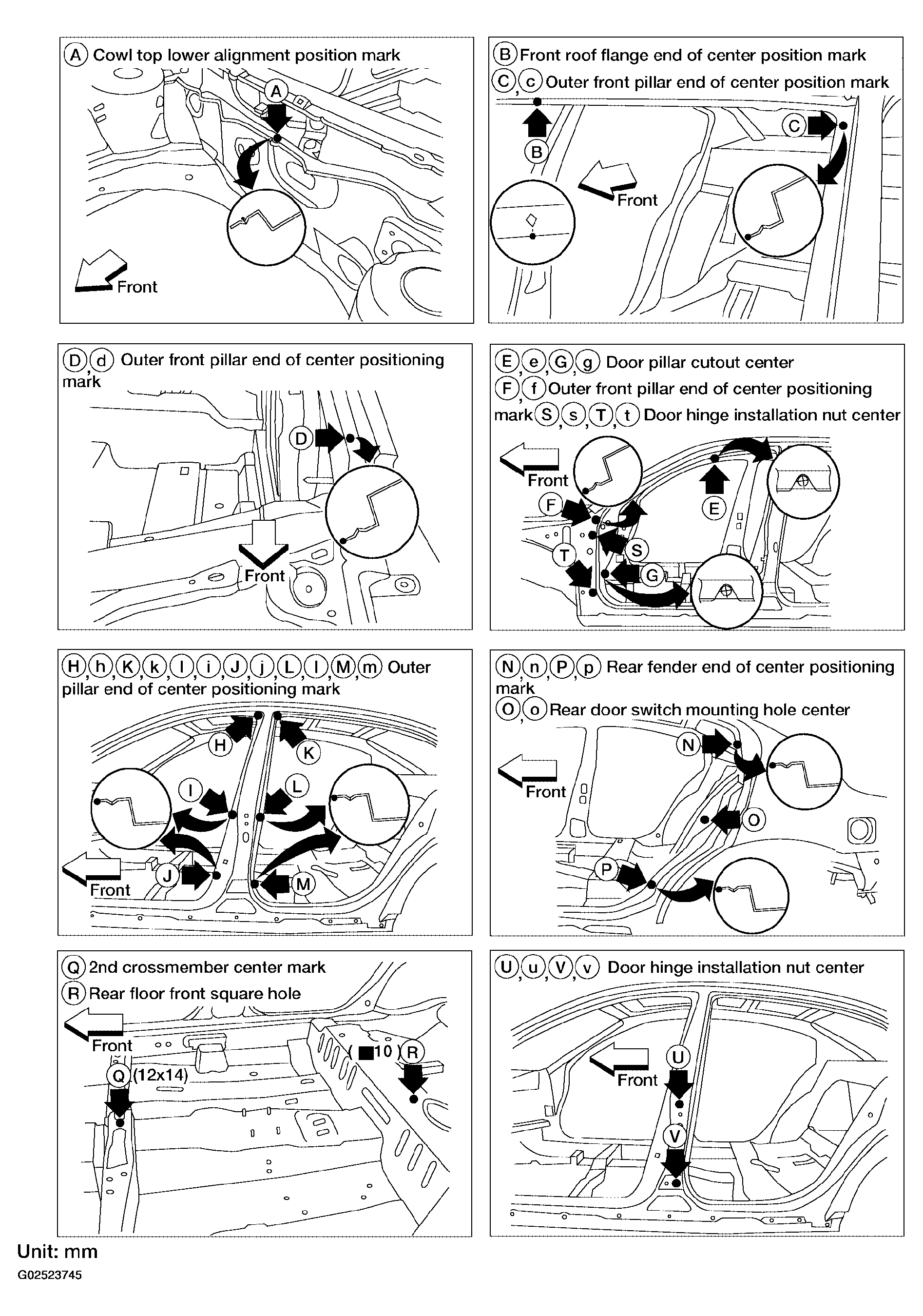

Fig 2: Identifying Measurement Points
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
