Body Alignment: Underbody

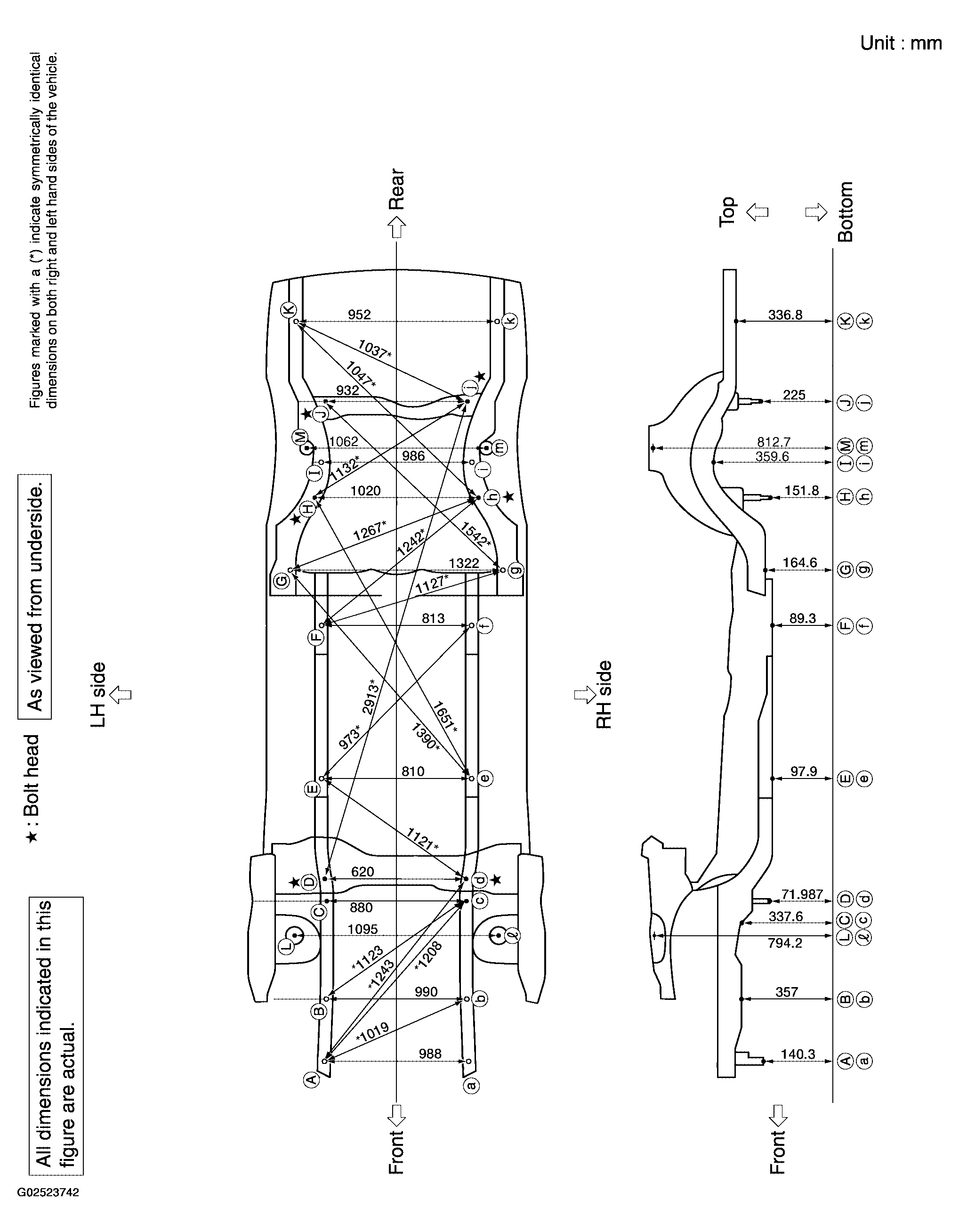

Fig 1: Measurement Of Underbody
G02523742Courtesy of NISSAN MOTOR CO., U.S.A.

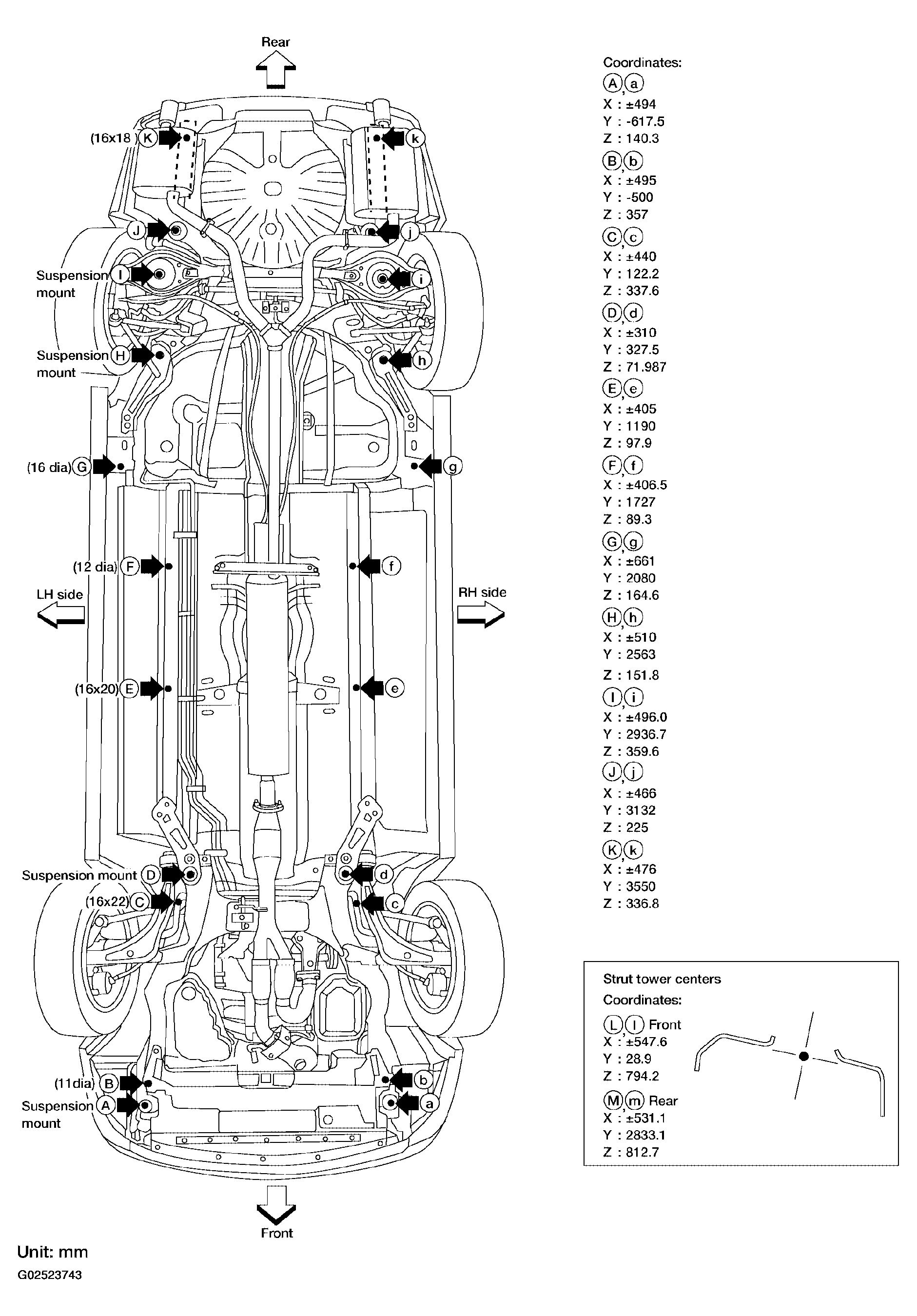

Fig 2: Identifying Measurement Points
G02523743Courtesy of NISSAN MOTOR CO., U.S.A.
