Center Pillar
Center Pillar

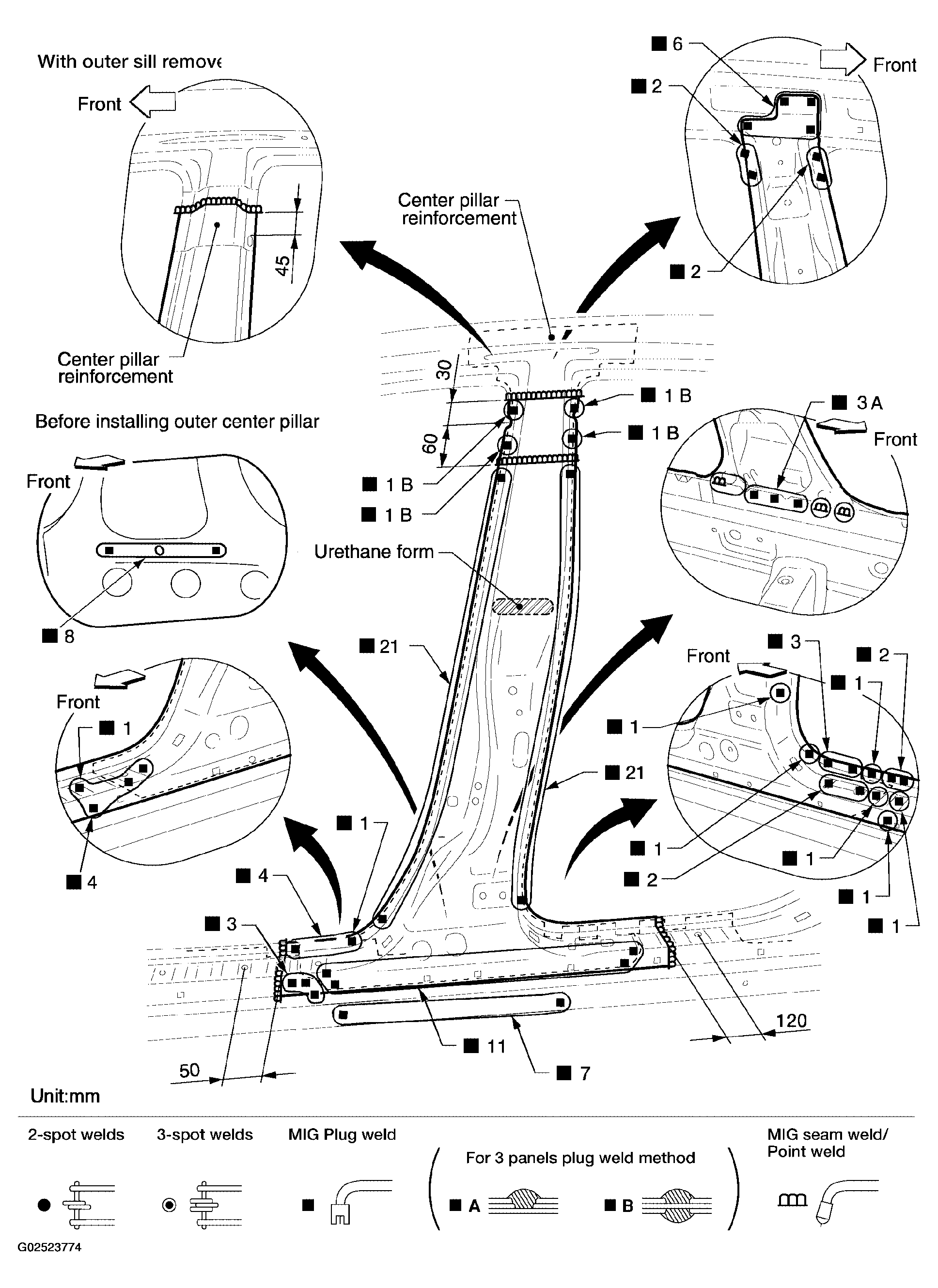

Fig 1: Identifying Center Pillar Service Joints
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
