Front Side Member (Partial Replacement)
Front Side Member (Partial Replacement)
Work after radiator core support has been removed.

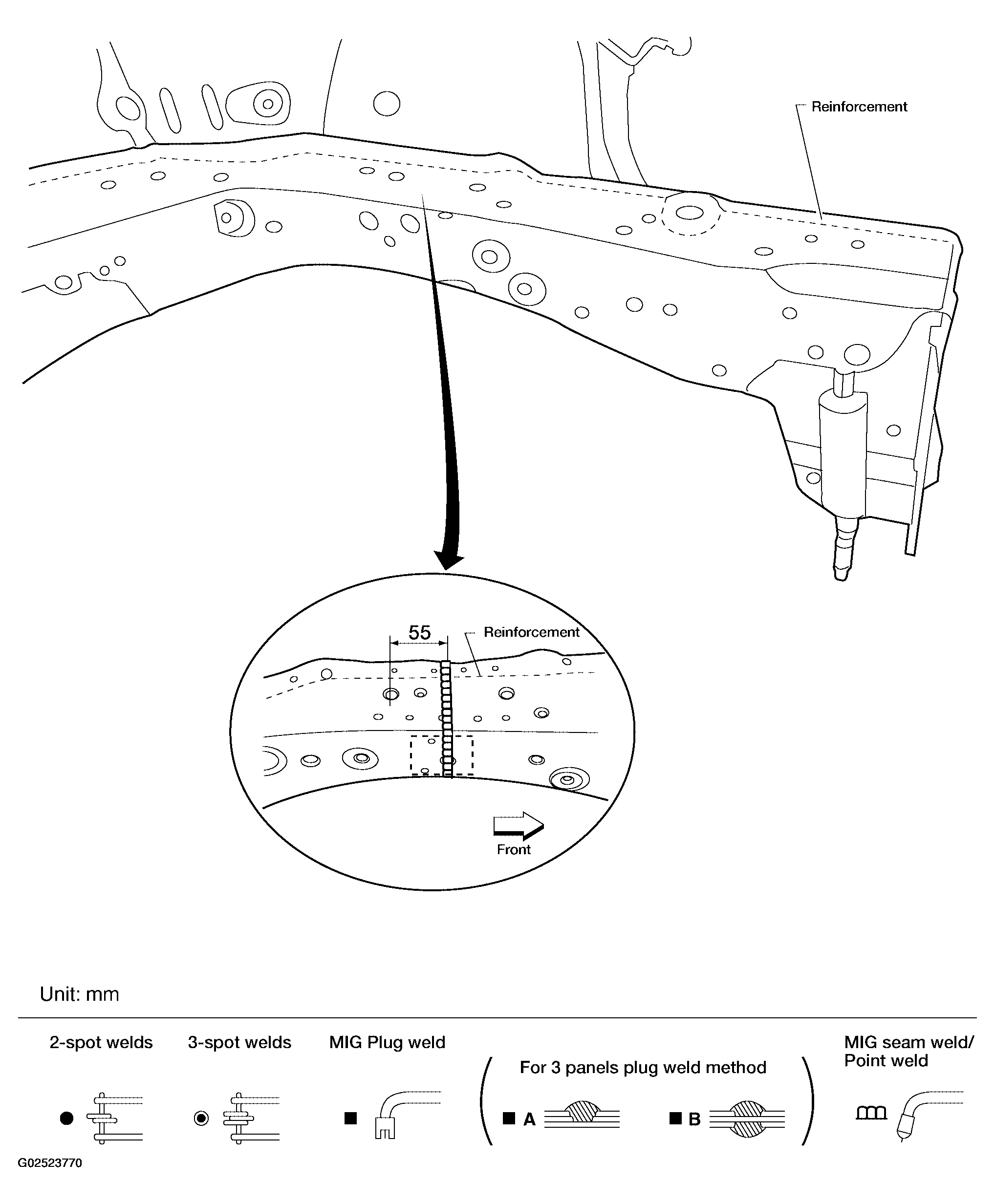

Fig 1: Identifying Front Side Member Service Joints
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
