Home › Nissan-Datsun › 2005 › Altima SE-R, Automatic › Repair and Diagnosis › Body & Frame › Door Locks › Body, Lock & Security System › Rear Door Lock › Components

Rear Door Lock: Components

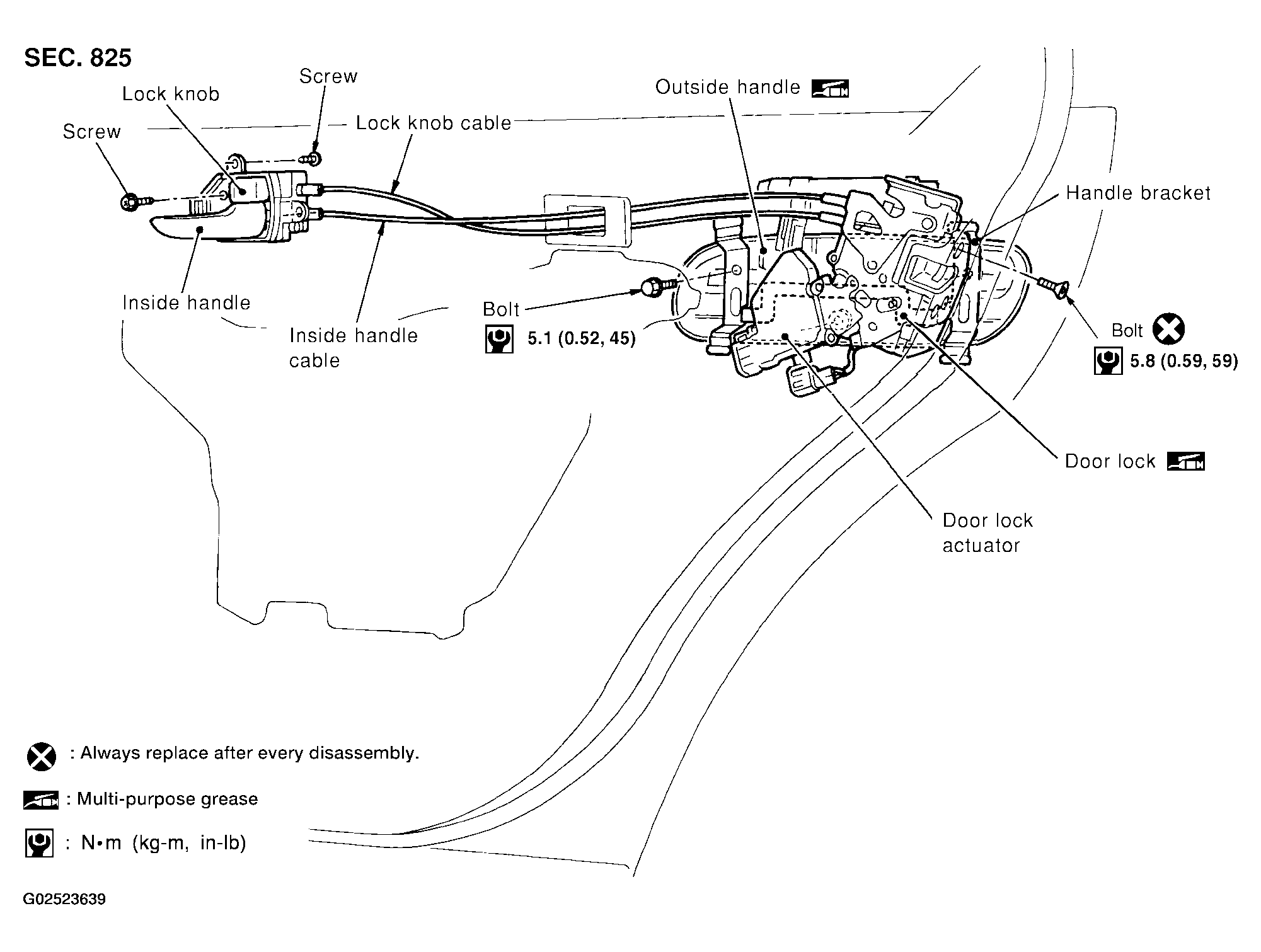

Fig 1: Identifying Rear Door Lock Components
G02523639Courtesy of NISSAN MOTOR CO., U.S.A.
