Brake Control System - Abs
›
Trouble Diagnosis
›
CONSULT-II Function (ABS)
›
Data Monitor Mode
Data Monitor Mode

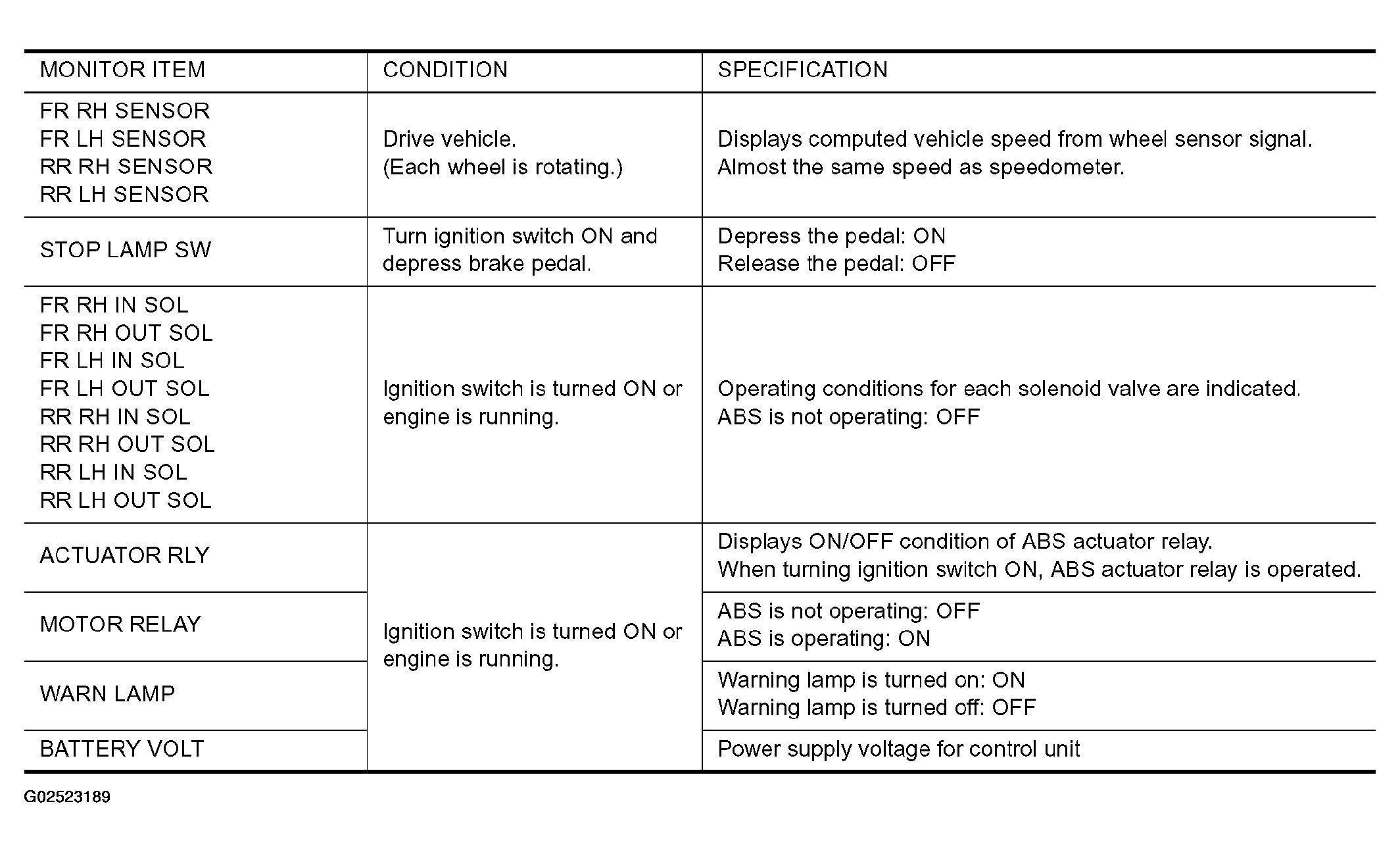

Fig 1: Data Monitor Mode Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
