Altima SE-R, Automatic
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Brake Control System - TCS/Abs
›
General Information
›
Hydraulic Circuit
Hydraulic Circuit

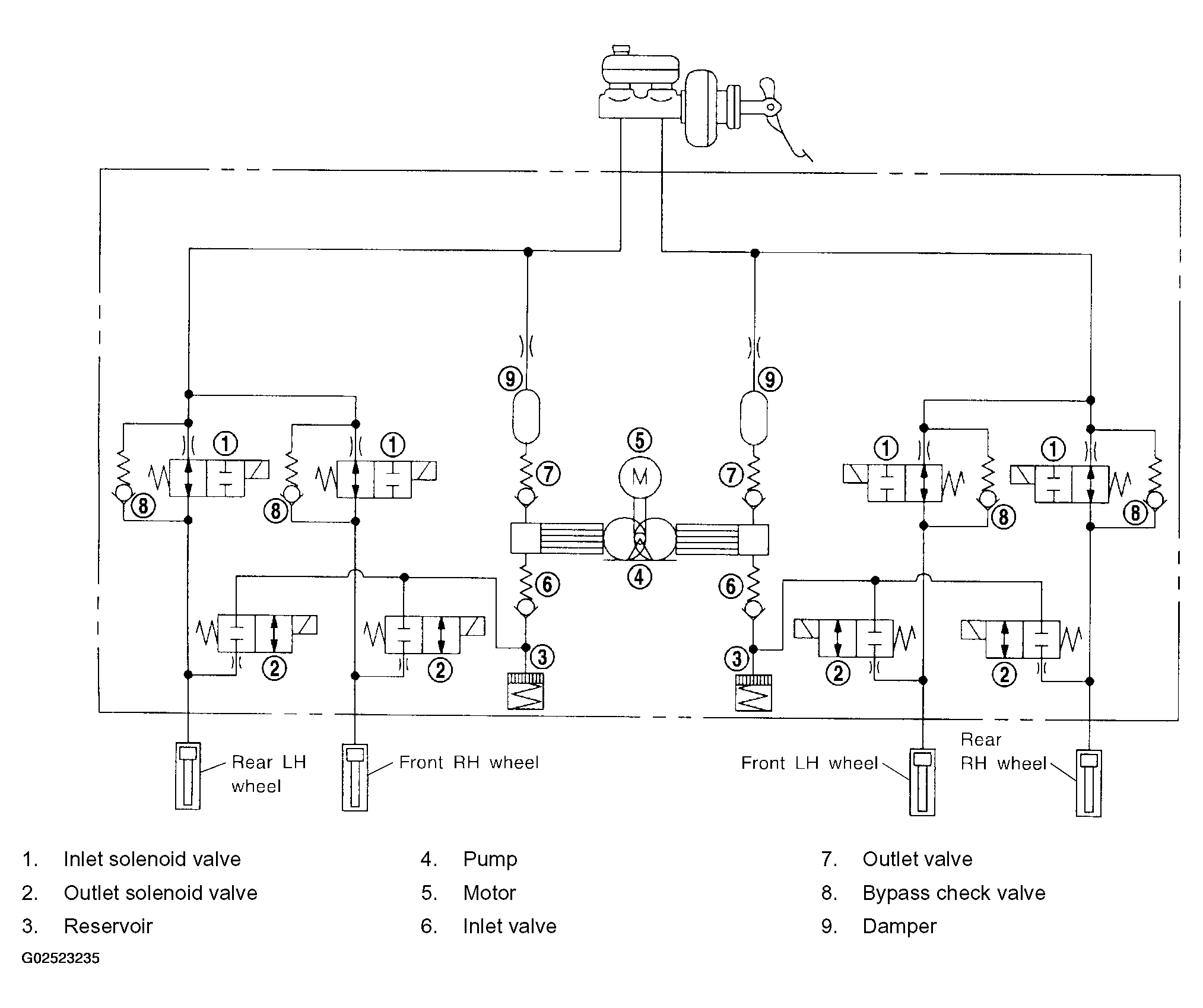

Fig 1: Hydraulic Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
