Active Test Mode

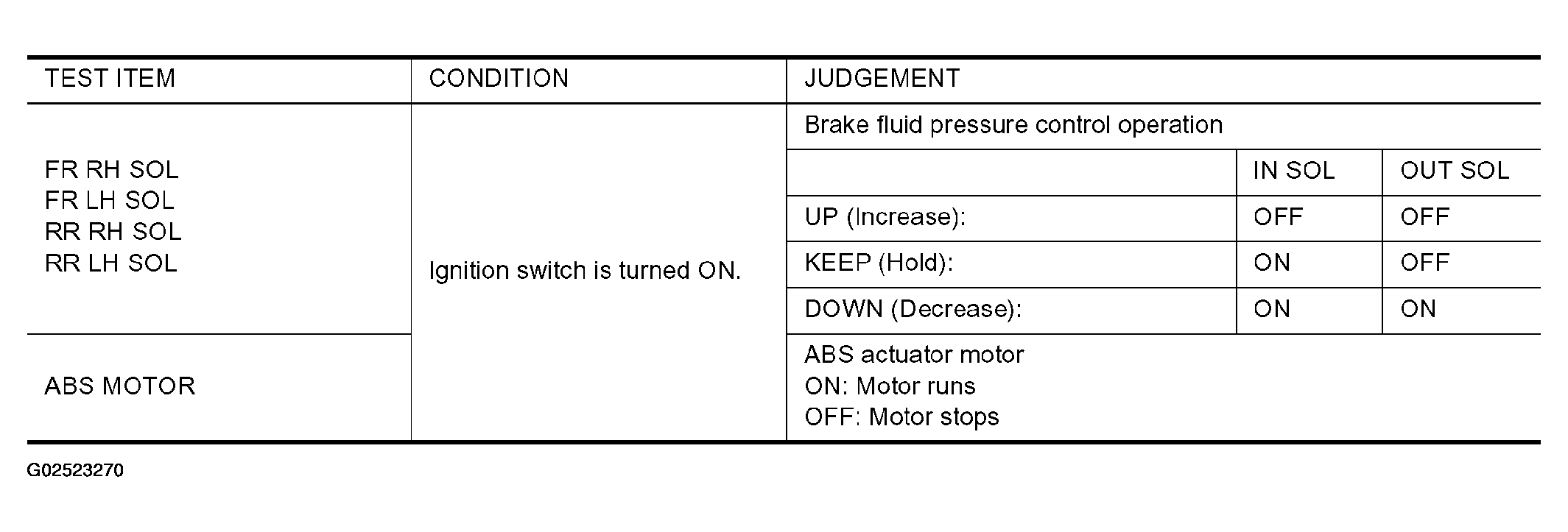

Fig 1: Active Test Mode Table
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED is displayed.)
Courtesy of NISSAN MOTOR CO., U.S.A.
