Consult-II Basic Operation Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn the ignition switch ON.

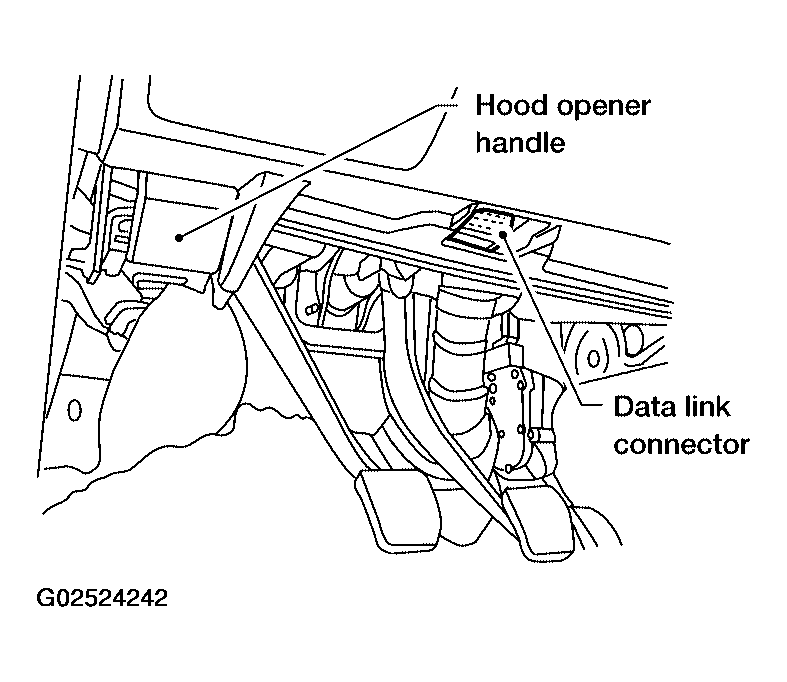

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Identifying Scan Tools Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

Fig 3: Identifying Scan Tools Display (Select System)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BUZZER" or "BCM".
Select "DATA MONITOR" "ACTIVE TEST" or "SELF-DIAG RESULTS".

Fig 4: Identifying Scan Tools Display (Select Test Item)
Courtesy of NISSAN MOTOR CO., U.S.A.
