Terminals And Reference Value For BCM

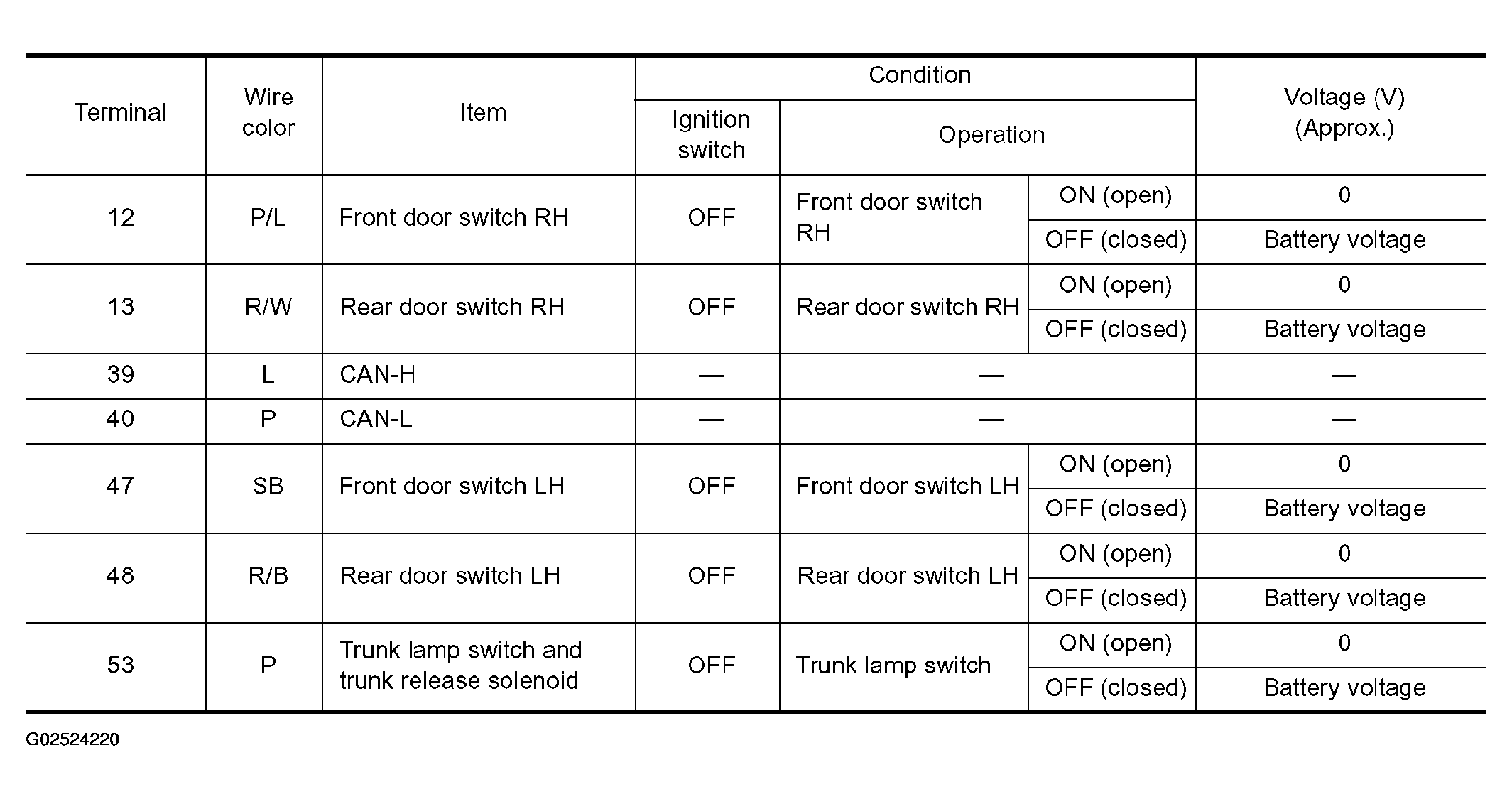

Fig 1: BCM Terminals And Reference Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
