DTC P0181: FTT Sensor: Wiring Diagram

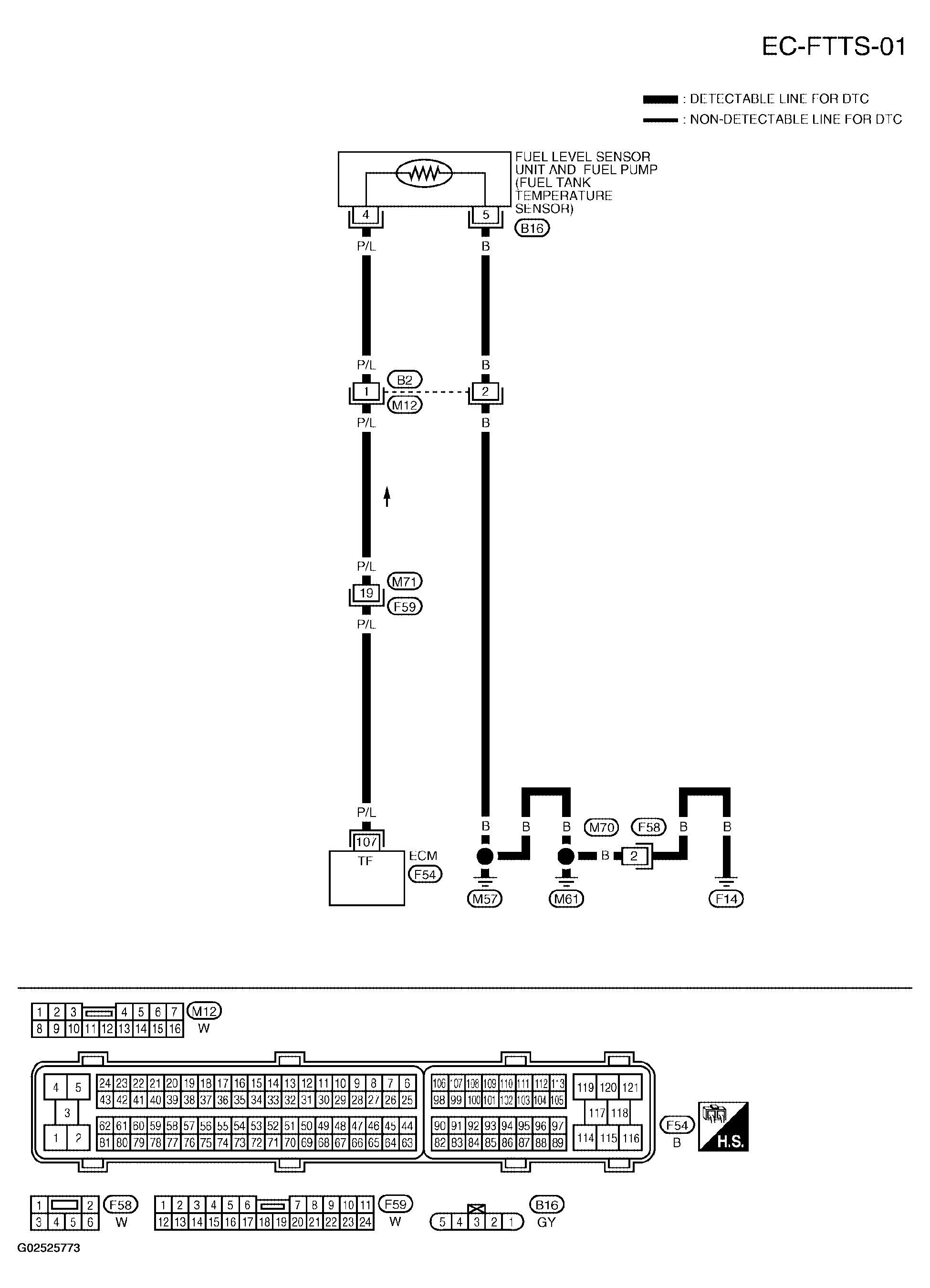

Fig 1: Wiring Diagram EC-FTTS-01
G02525773Courtesy of NISSAN MOTOR CO., U.S.A.
