Repair and Diagnosis
›
Engine Performance
›
Engine Control System - VQ35DE
›
Engine Control System
›
Electronic Ignition (EI) System
›
Input/Output Signal Chart
Input/Output Signal Chart

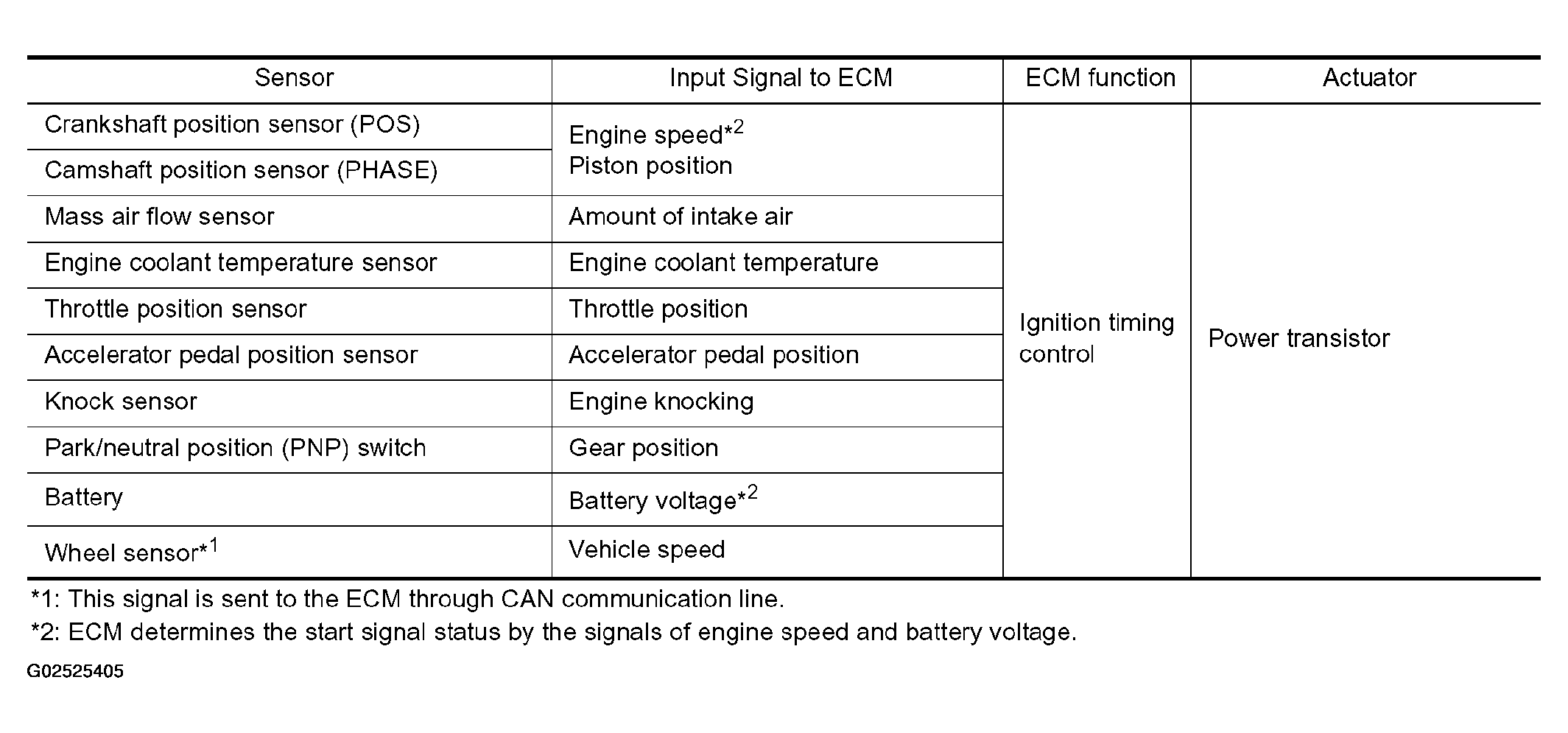

Fig 1: Electronic Ignition System Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
