Engine Control System - VQ35DE
›
Trouble Diagnosis
›
CONSULT-II Function (ENGINE)
›
Active Test Mode
›
Test Item
Test Item

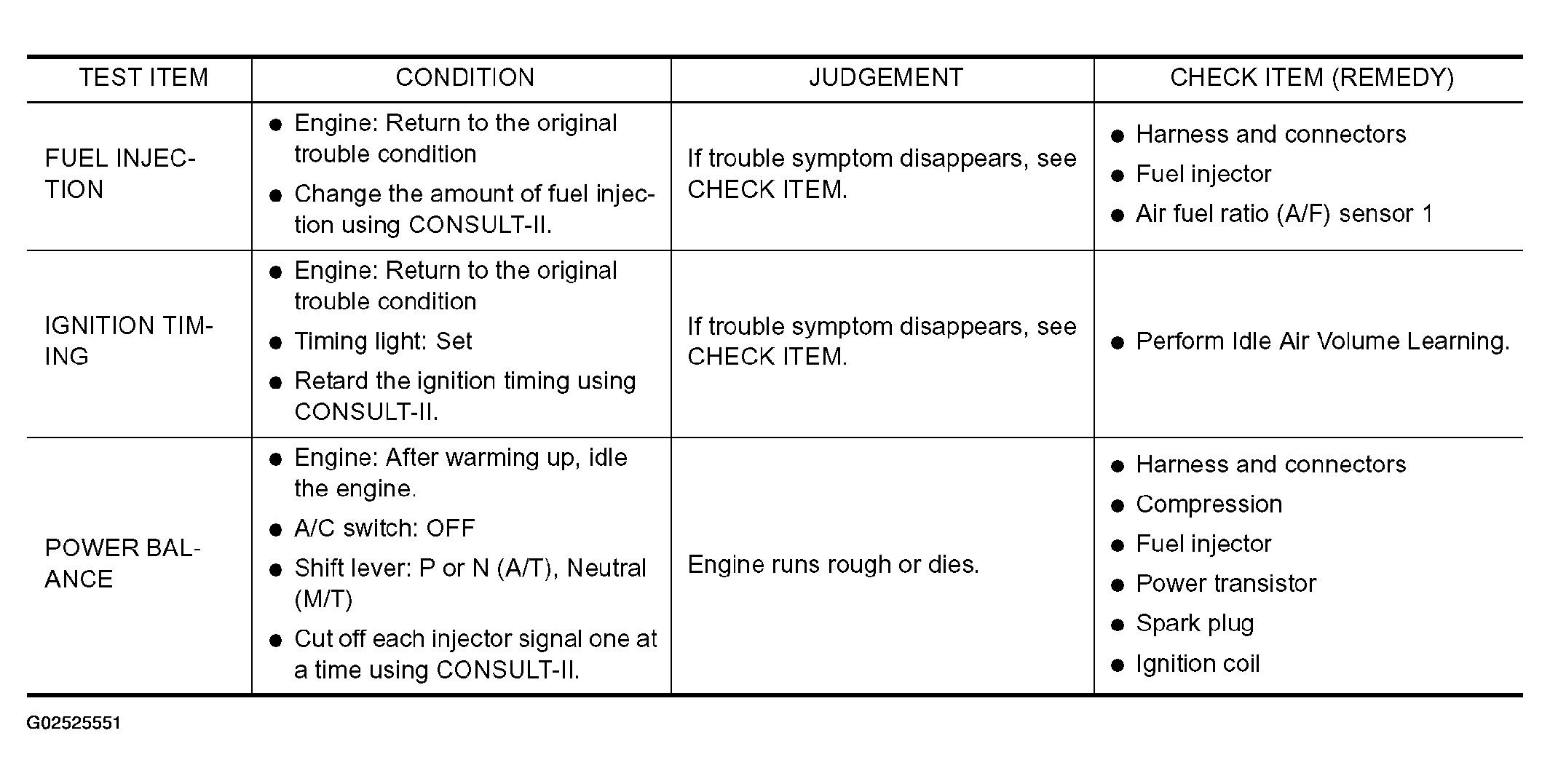

Fig 1: Test Item Reference Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

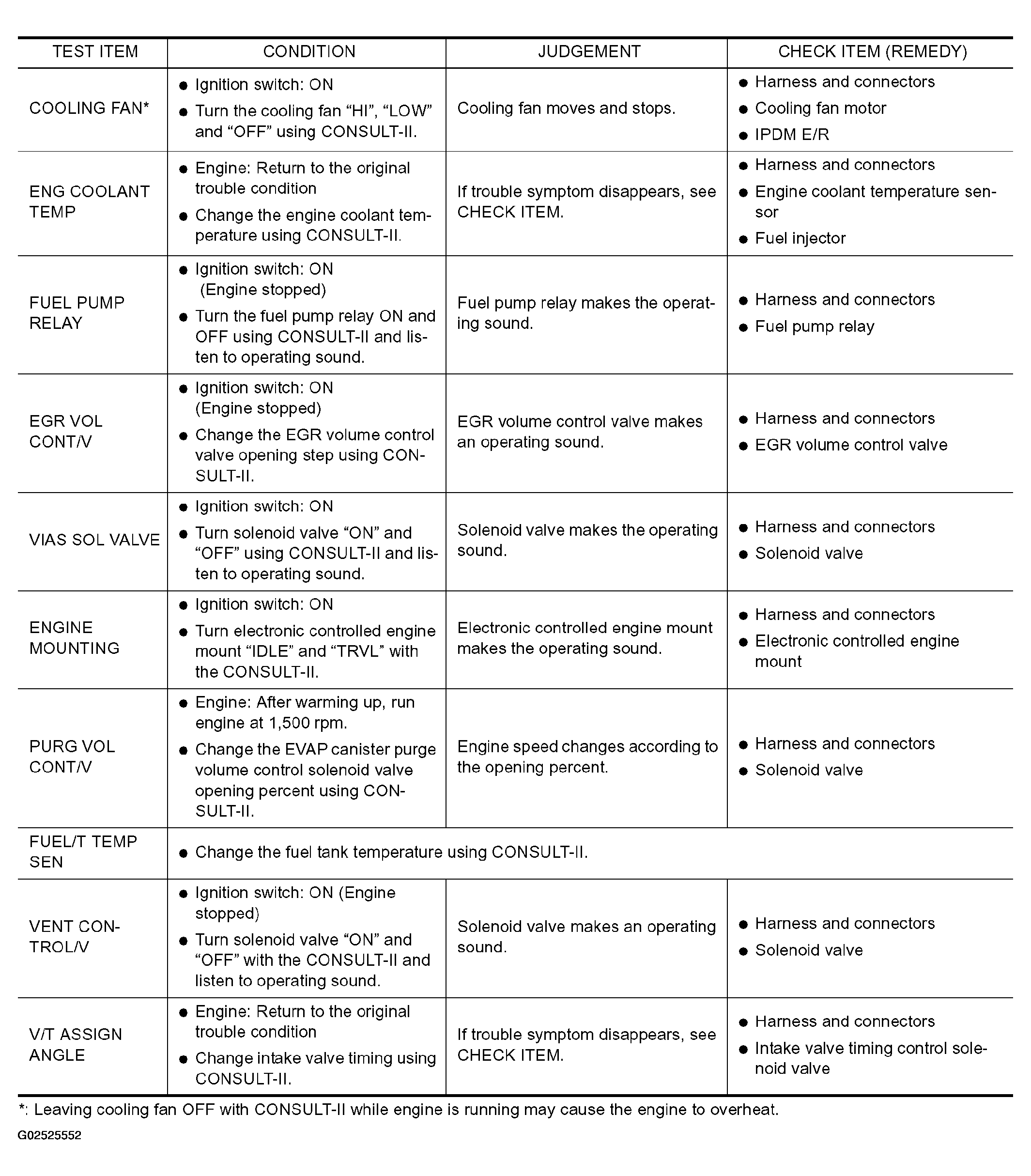

Fig 2: Test Item Reference Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
