Engine Control System - VQ35DE
›
Trouble Diagnosis
›
CONSULT-II Function (ENGINE)
›
Work Support Mode
›
Work Item
Work Item

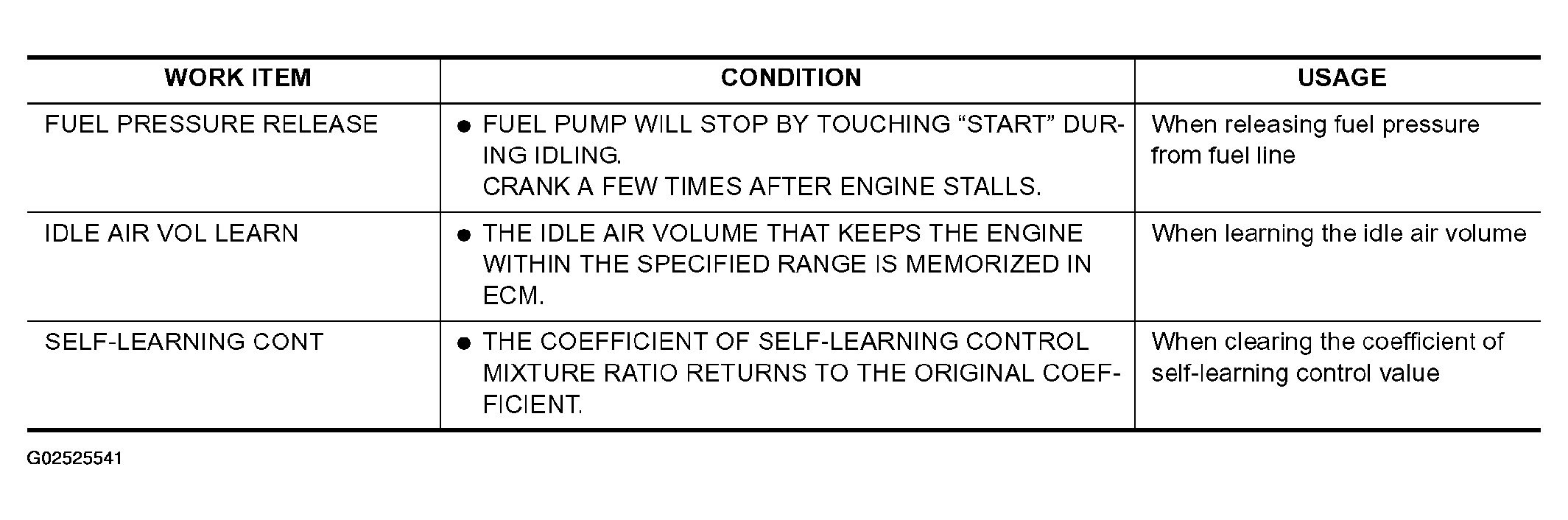

Fig 1: Work Item Condition Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

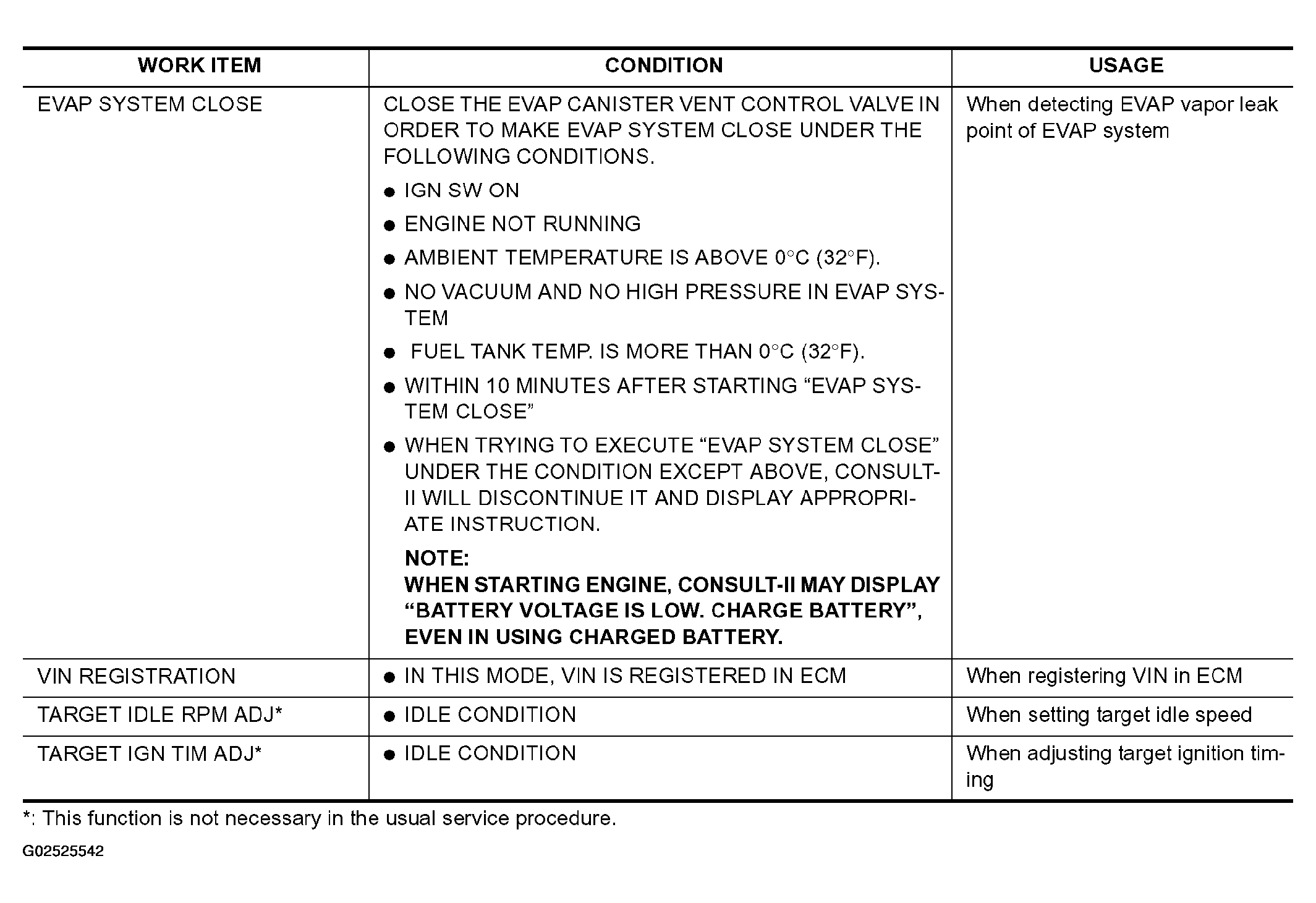

Fig 2: Work Item Condition Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
