Se-R Models

NOTE: Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

Refer to "SYSTEM DIAGRAM " for Vacuum Control System.

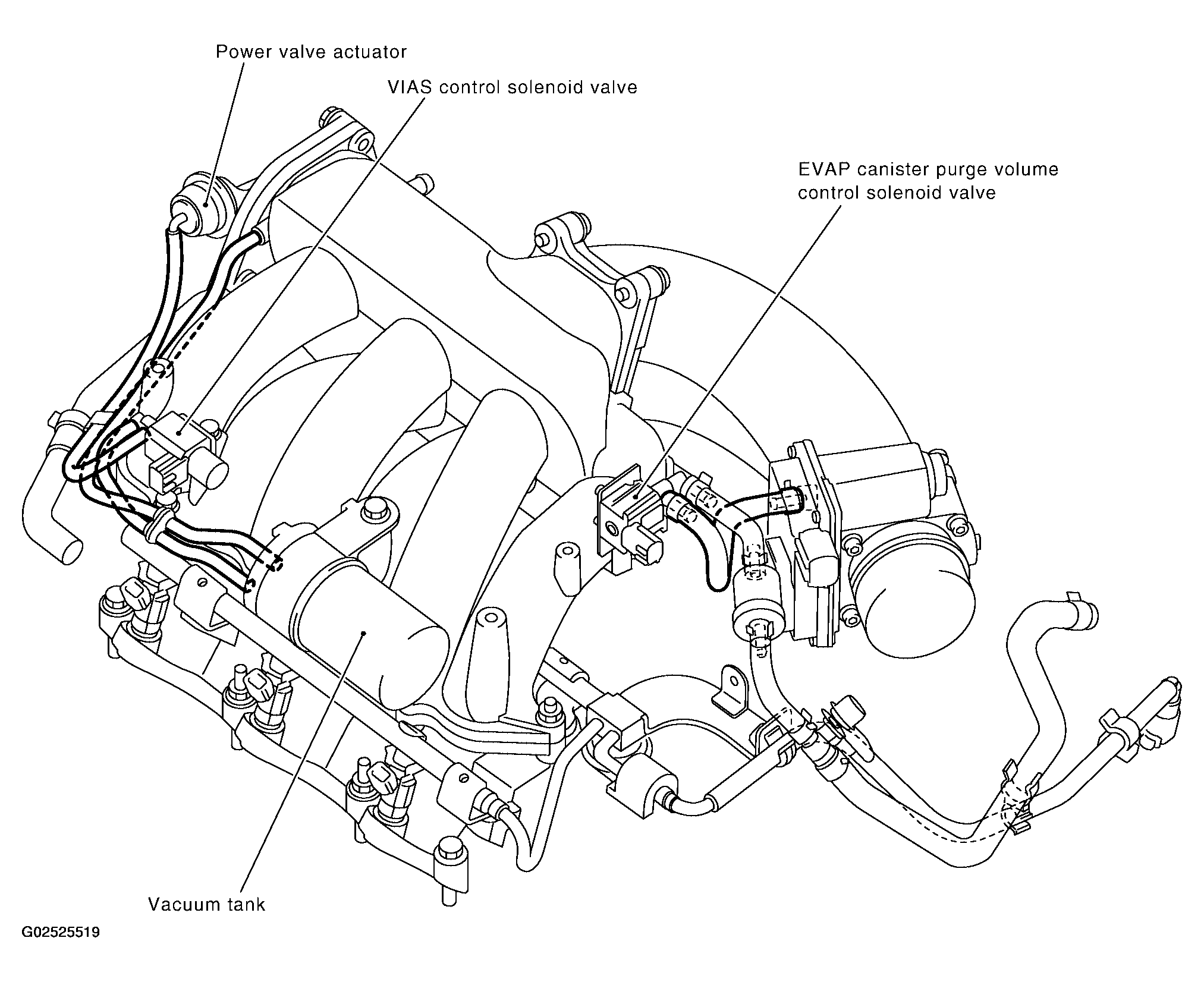

Fig 1: Identifying Vacuum Hose Drawing - SE-R Models

Courtesy of NISSAN MOTOR CO., U.S.A.
