Removal and Installation: Notes

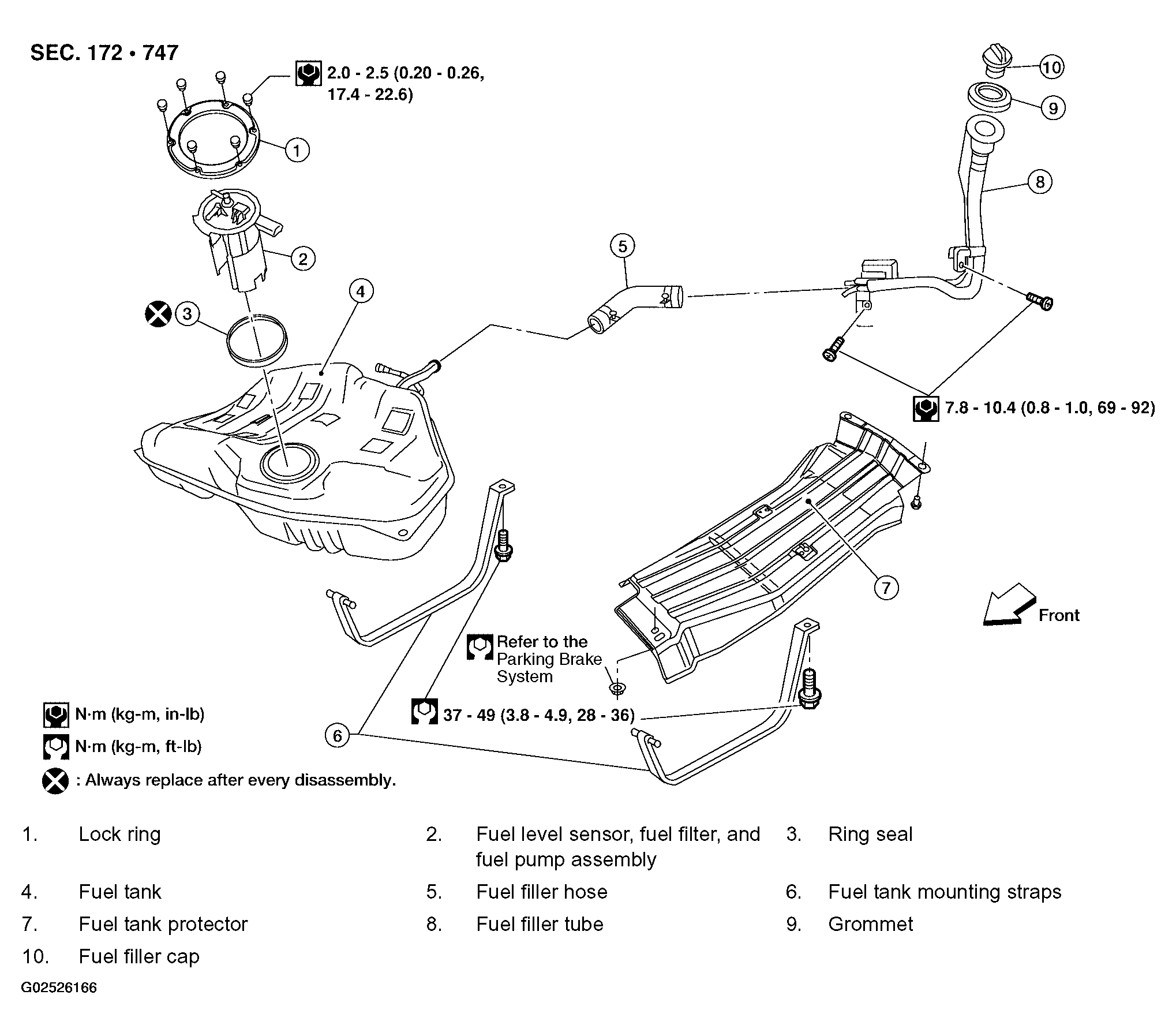

Fig 1: Identifying Fuel Tank Components All Except PZEV Models

Courtesy of NISSAN MOTOR CO., U.S.A.

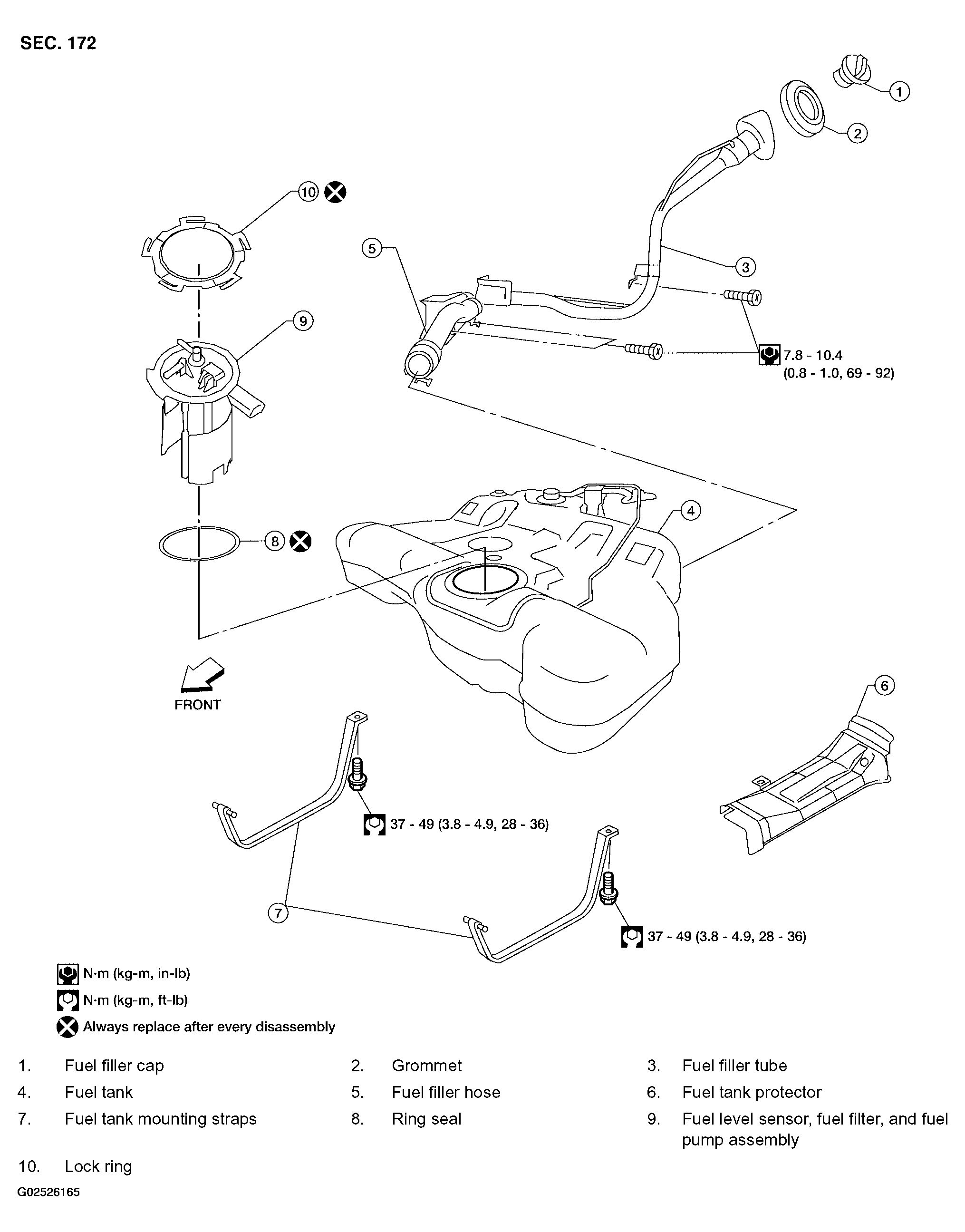

Fig 2: Identifying Fuel Tank Components PZEV Models Only

Courtesy of NISSAN MOTOR CO., U.S.A.
