Removal and Installation: Notes

WARNING: This page is about a different variant/trim than selected.

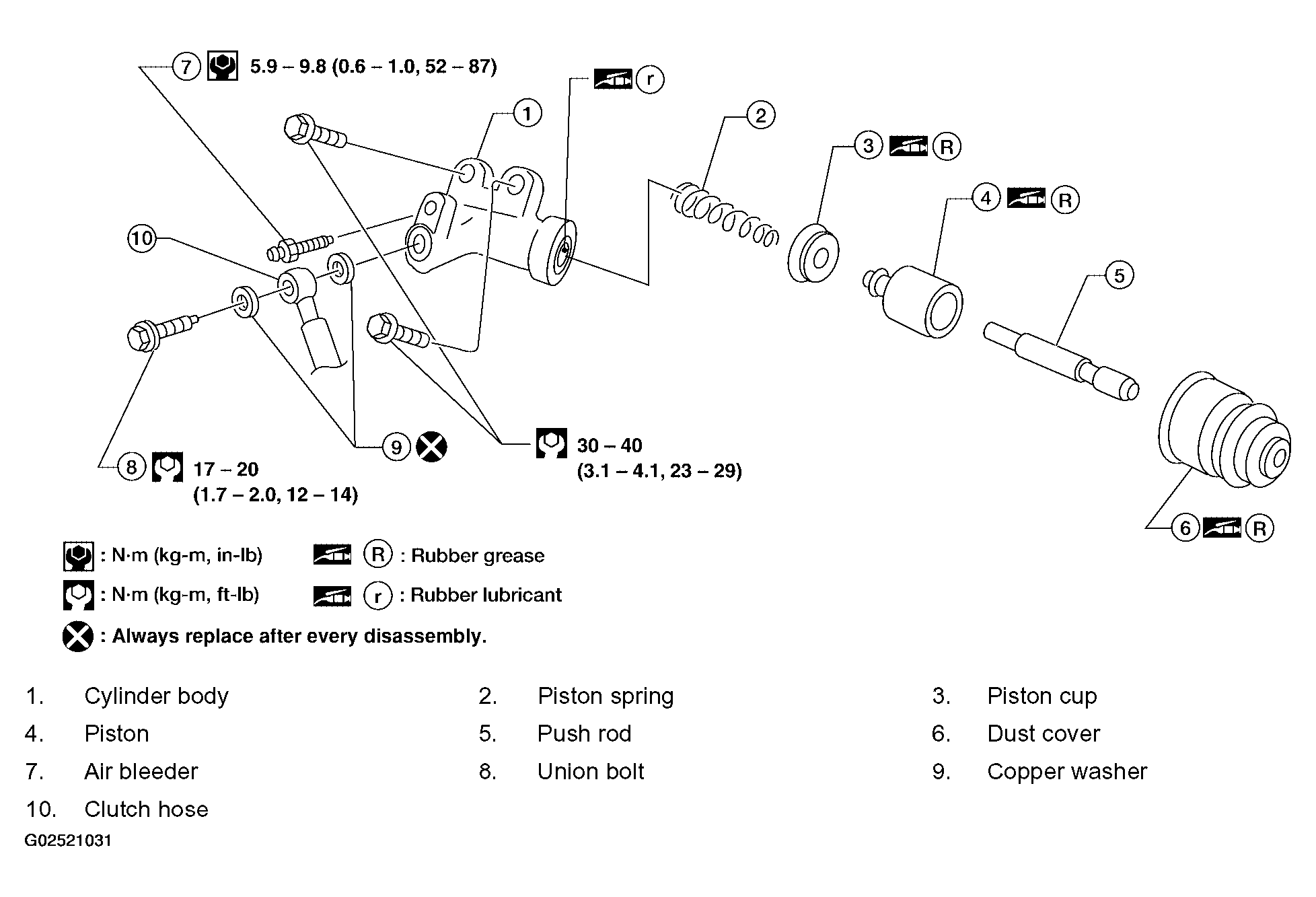

Fig 1: Identifying Operating Cylinder Components
G02521031Courtesy of NISSAN MOTOR CO., U.S.A.
