CONSULT-II Start Procedure

NOTE: Turning ignition switch off when performing CAN diagnosis could cause CAN memory to be erased.
  1. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
  2. If necessary turn on the ignition switch.

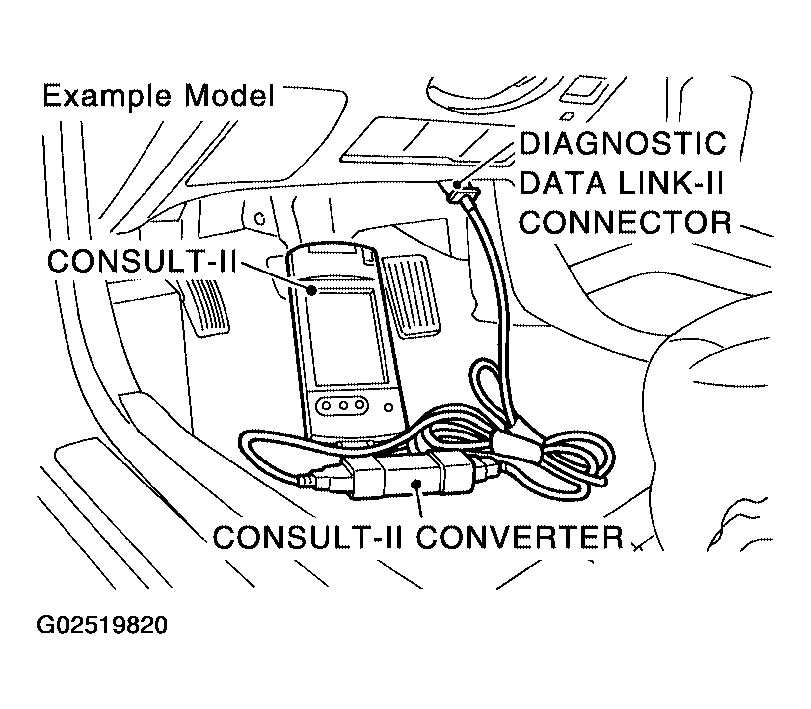

    Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
    G02519820Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "START (NISSAN BASED VHCL)" or "System Shortcut" (e.g.: ENGINE) on the screen.
    Fig 2: Identifying CONSULT-II Display Screen
    G02519821Courtesy of NISSAN MOTOR CO., U.S.A.
