Disassembly And Assembly: Assembly

Assembly is in the reverse order of disassembly, noting the following instructions.

• Install new O-rings and make sure they are properly installed.
• Install new oil seal using a drift, and make sure oil seal direction is as shown in the illustration.
• Cam ring, rotor and vanes must be replaced as a set if necessary.
• Coat each part with Genuine NISSAN PSF when assembling.
  Fig 1: Installing Oil Seal

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Pay attention to the direction of rotor.

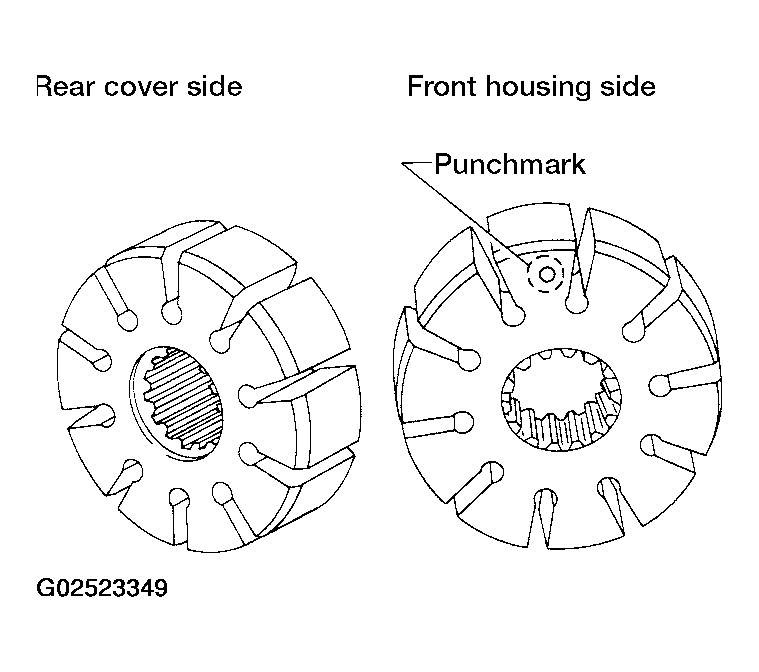

  Fig 2: Identifying Direction Of Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.
• When assembling vanes to rotor, rounded surfaces of vanes must face cam ring side.
  Fig 3: Installing Vanes To Rotor

  Courtesy of NISSAN MOTOR CO., U.S.A.

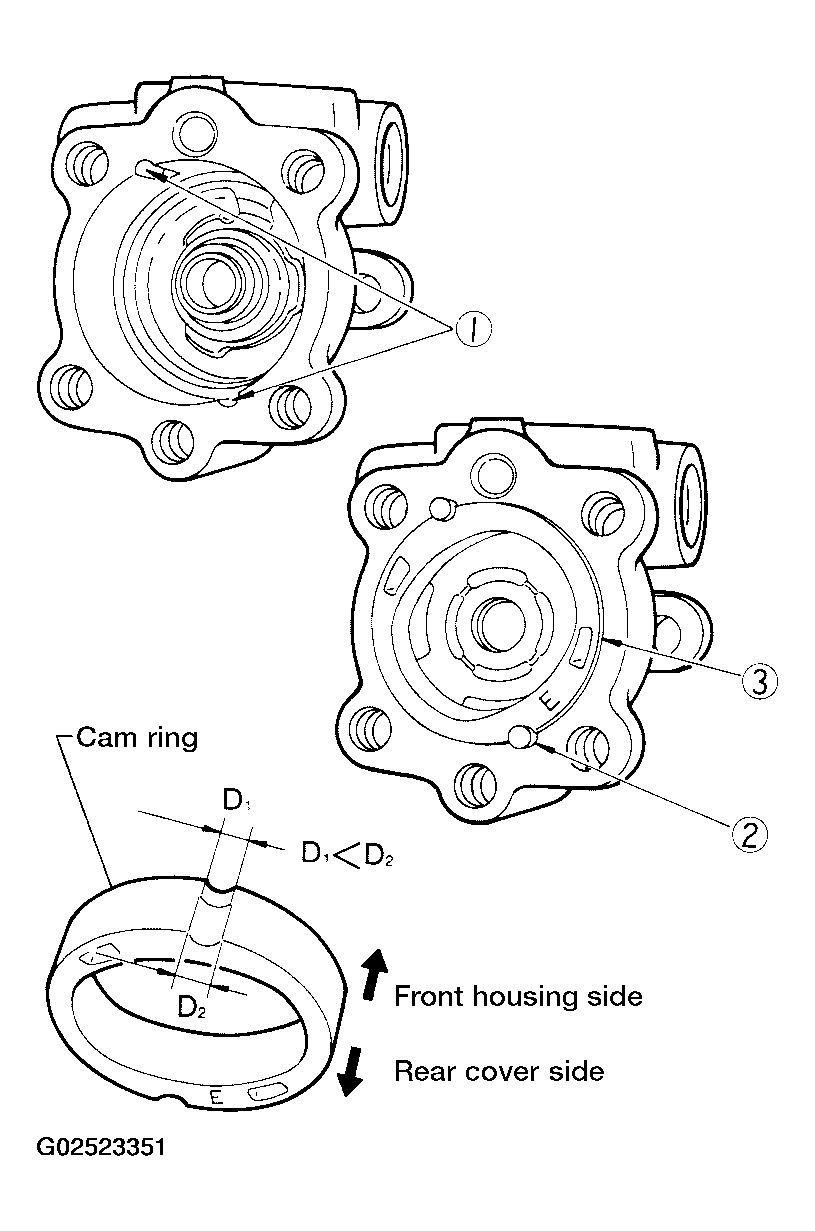

• Insert pin 2 into pin groove 1 of front housing and front side plate. Then install cam ring 3 as shown in the illustration.

  Cam ring : D1 is less than D2

  Fig 4: Inserting Pin 2 Into Pin Groove 1 Of Front Housing And Front Side Plate

  Courtesy of NISSAN MOTOR CO., U.S.A.
