Steering Gear And Linkage

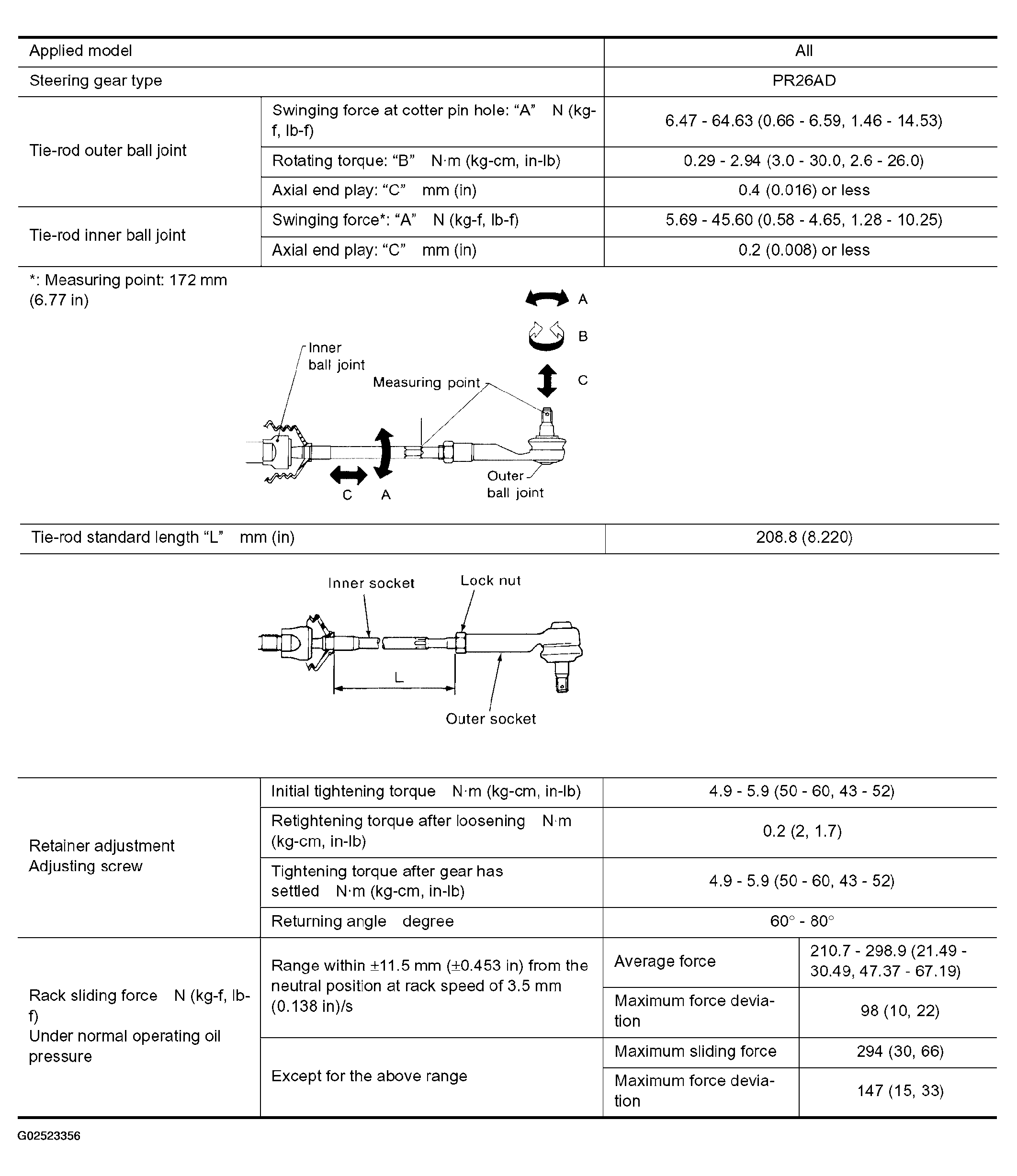

Fig 1: Steering Gear And Linkage Specifications (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Steering Gear And Linkage Specifications (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
