CONSULT-II Function (BCM)
›
Active Test
Active Test

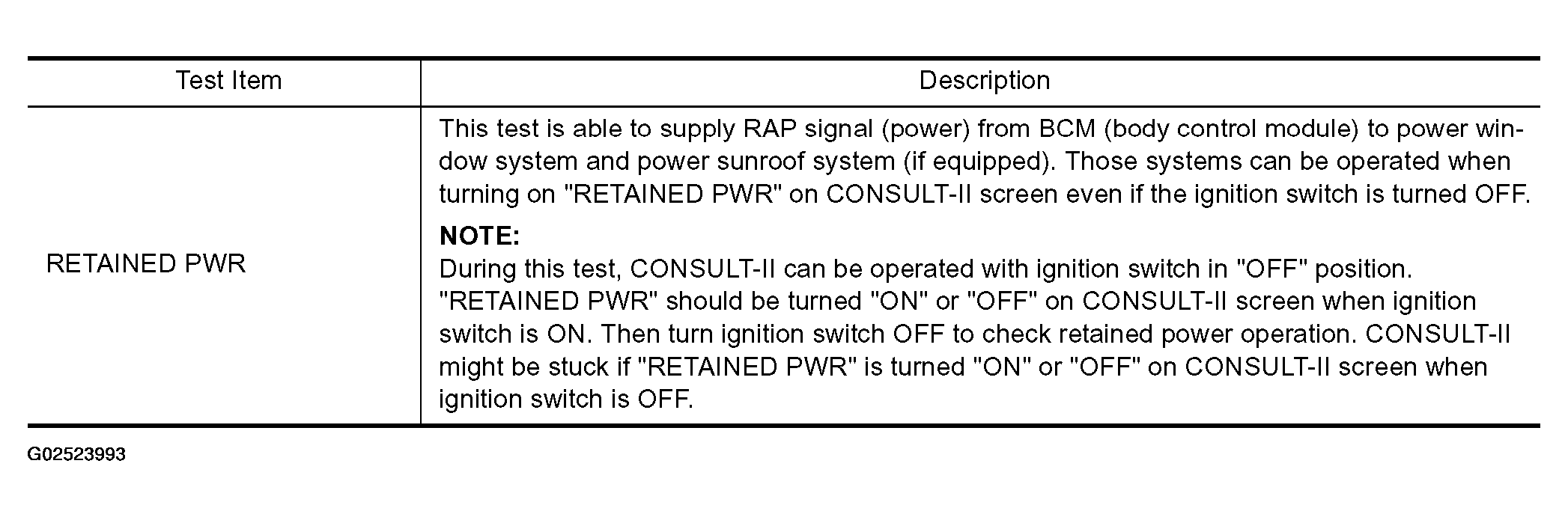

Fig 1: Active Test Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
