Terminal and Reference Value for Main Power Window and Door Lock/Unlock Switch

With left front only power window anti-pinch system

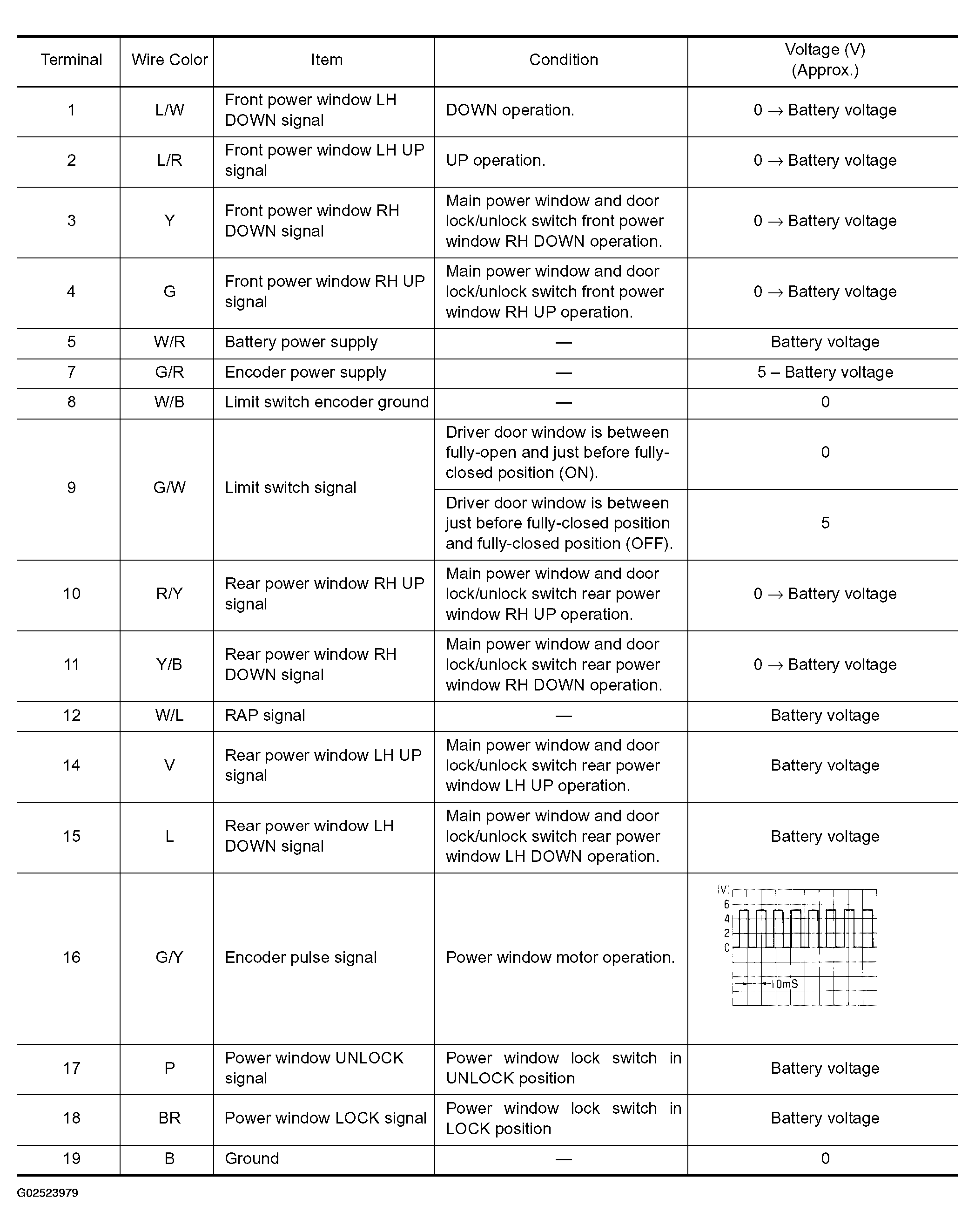

Fig 1: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Table

Courtesy of NISSAN MOTOR CO., U.S.A.

With left and right front power window anti-pinch system.

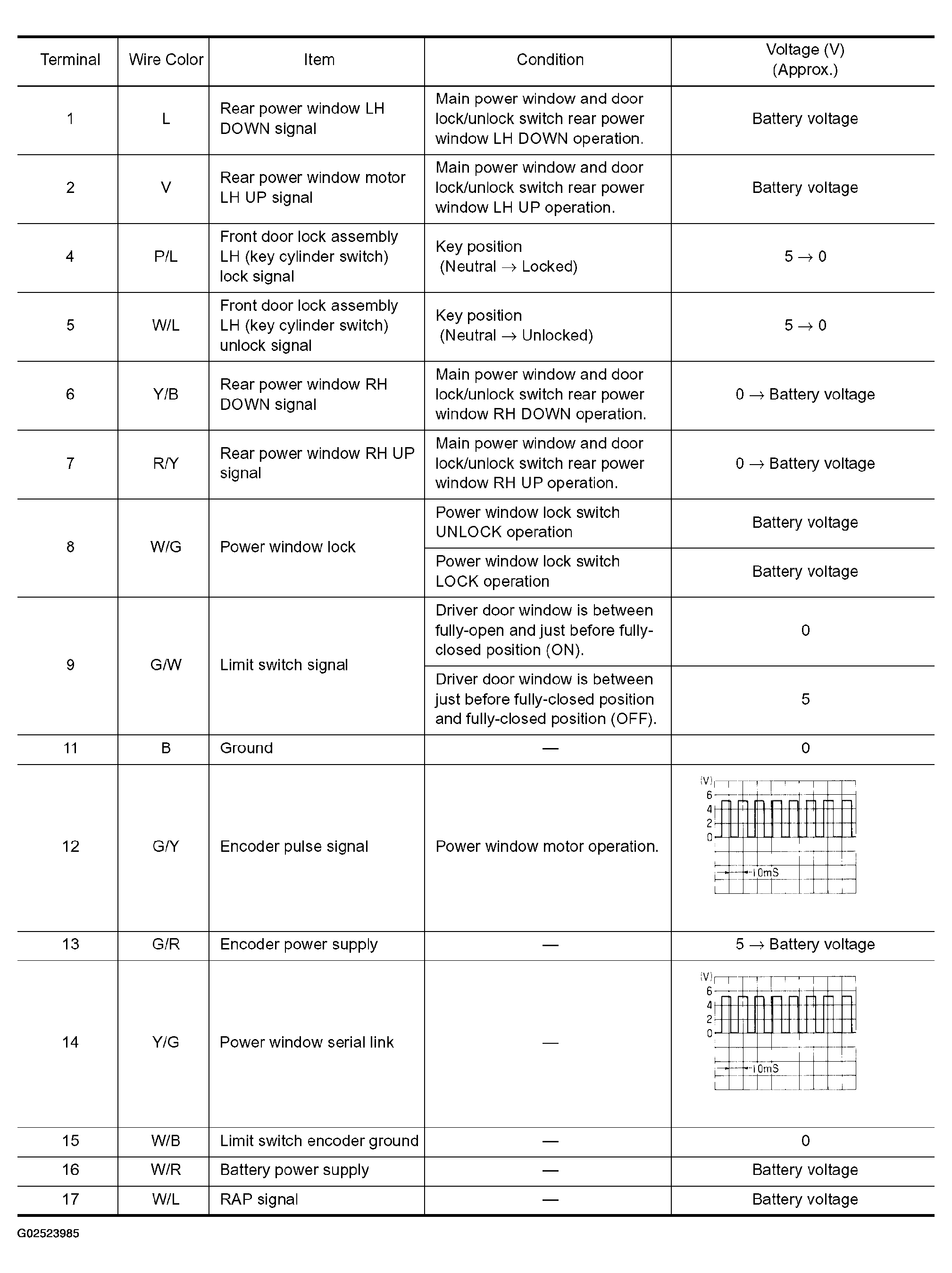

Fig 1: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

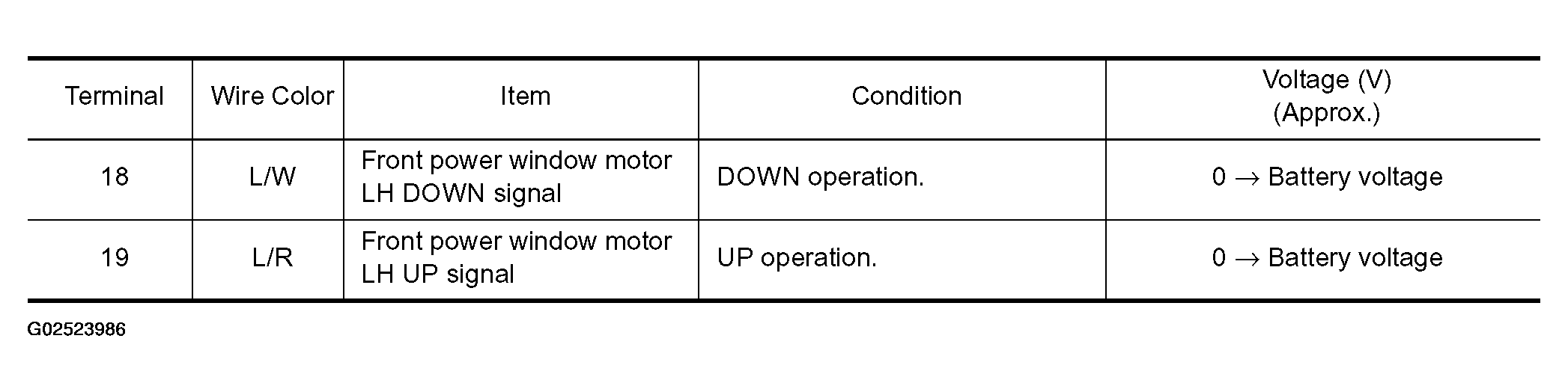

Fig 2: Terminal And Reference Value For Main Power Window And Door Lock/Unlock Switch Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
