Fuse Check

• Check if any of the following fuses for BCM and IPDM E/R are blown.

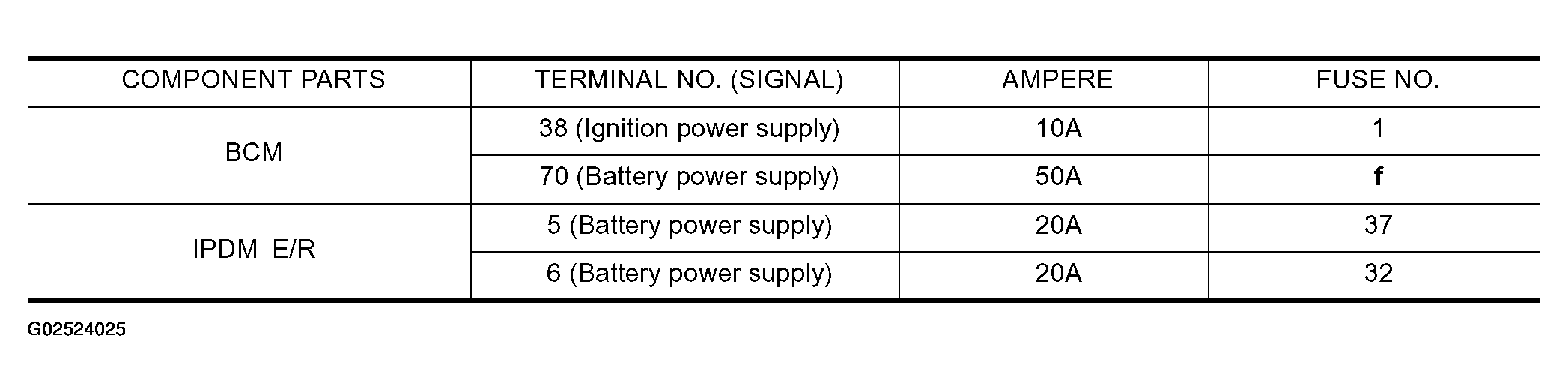

  Fig 1: Fuse Inspection Table

  Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Inspection End.
• NG: If fuse is blown, be sure to eliminate cause of problem before installing new fuse, Refer to "POWER SUPPLY ROUTING CIRCUIT ".
