Terminal and Reference Value for BCM
Terminal and Reference Value for BCM

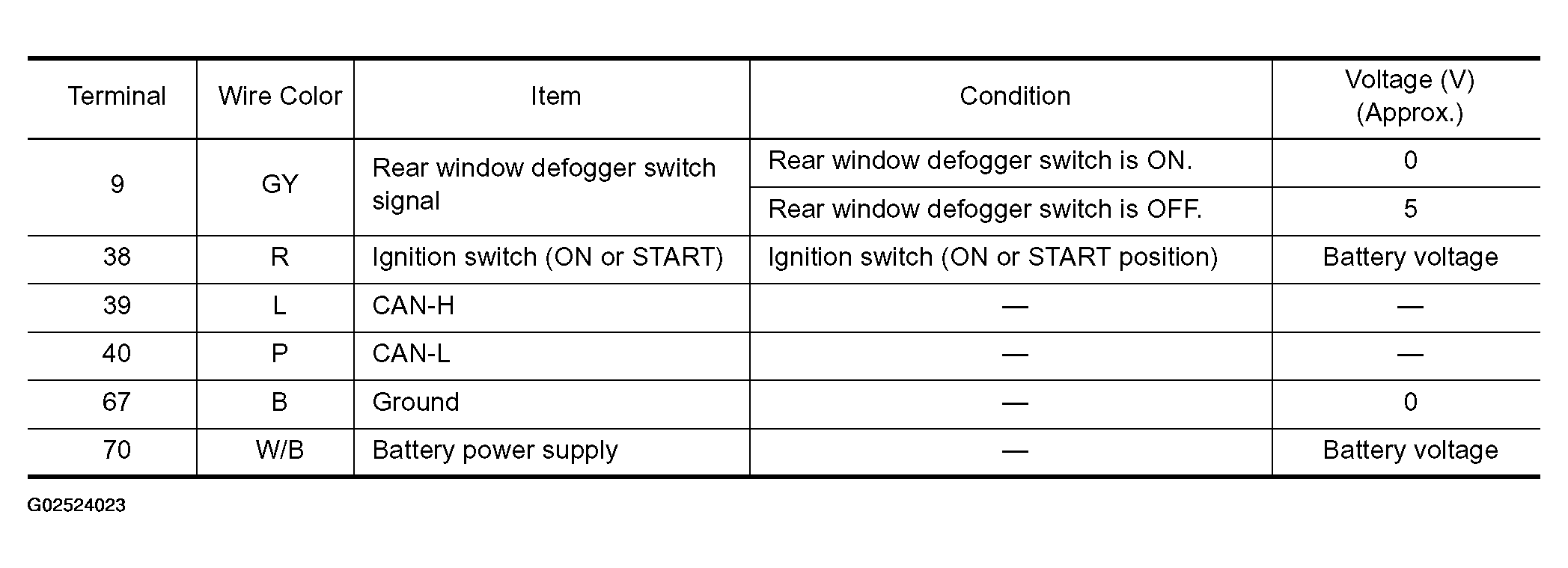

Fig 1: Terminal And Reference Value For BCM Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
