Terminal and Reference Value for IPDM E/R
Terminal and Reference Value for IPDM E/R

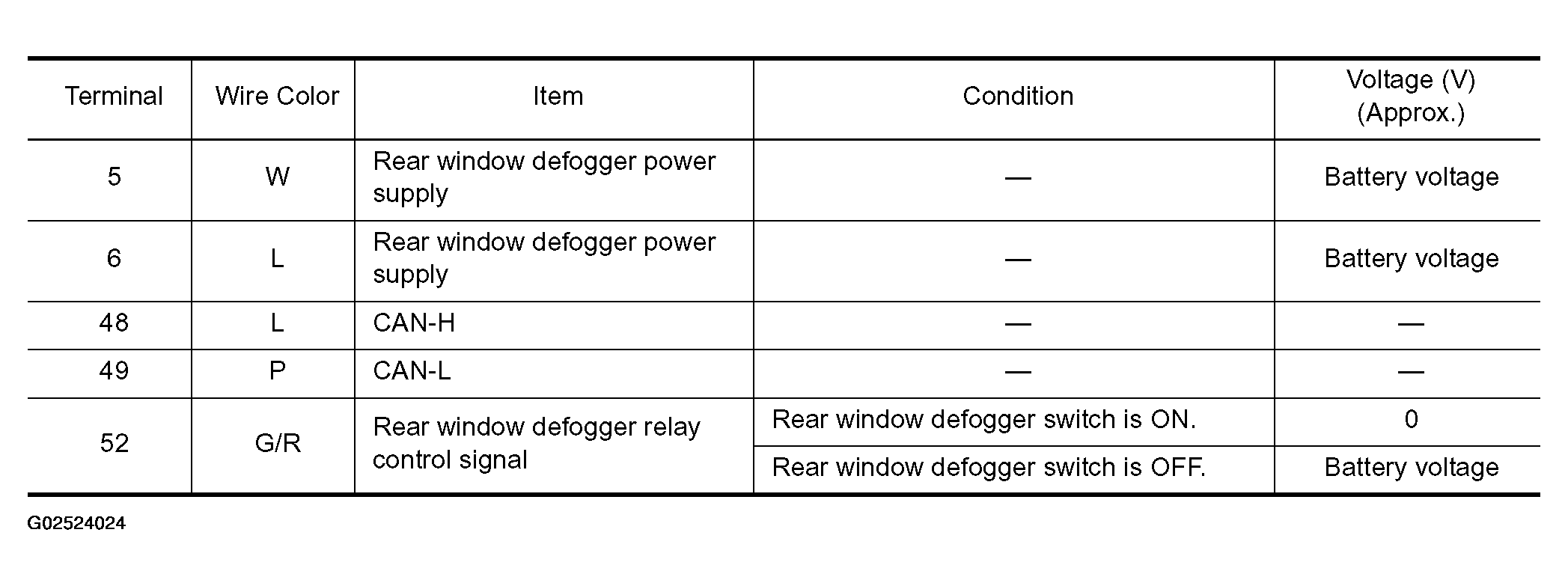

Fig 1: Terminal And Reference Value For IPDM E/R Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
