Wiring Diagram-AT/IND-4-SPEED A/T
›
Notes
Wiring Diagram-AT/IND-4-SPEED A/T: Notes

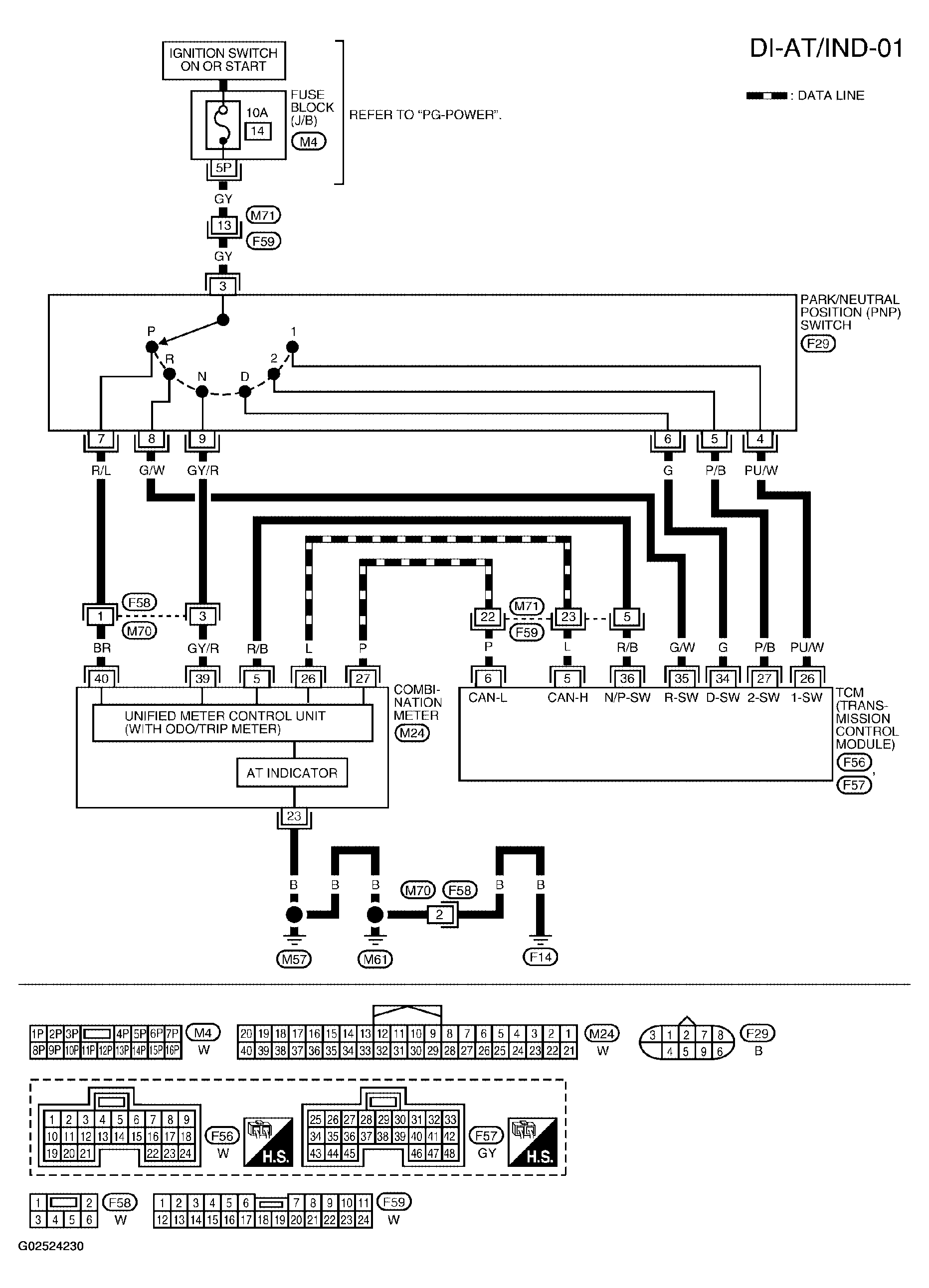

Fig 1: Wiring Diagram-AT/IND-4-SPEED A/T (DI-AT/IND-01)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
