Altima SE-R, Standard
›
Repair and Diagnosis
›
Electrical
›
Gauges
›
Driver Information System
›
Board Computer
›
Wiring Diagram-B/COMP --
Wiring Diagram-B/COMP --

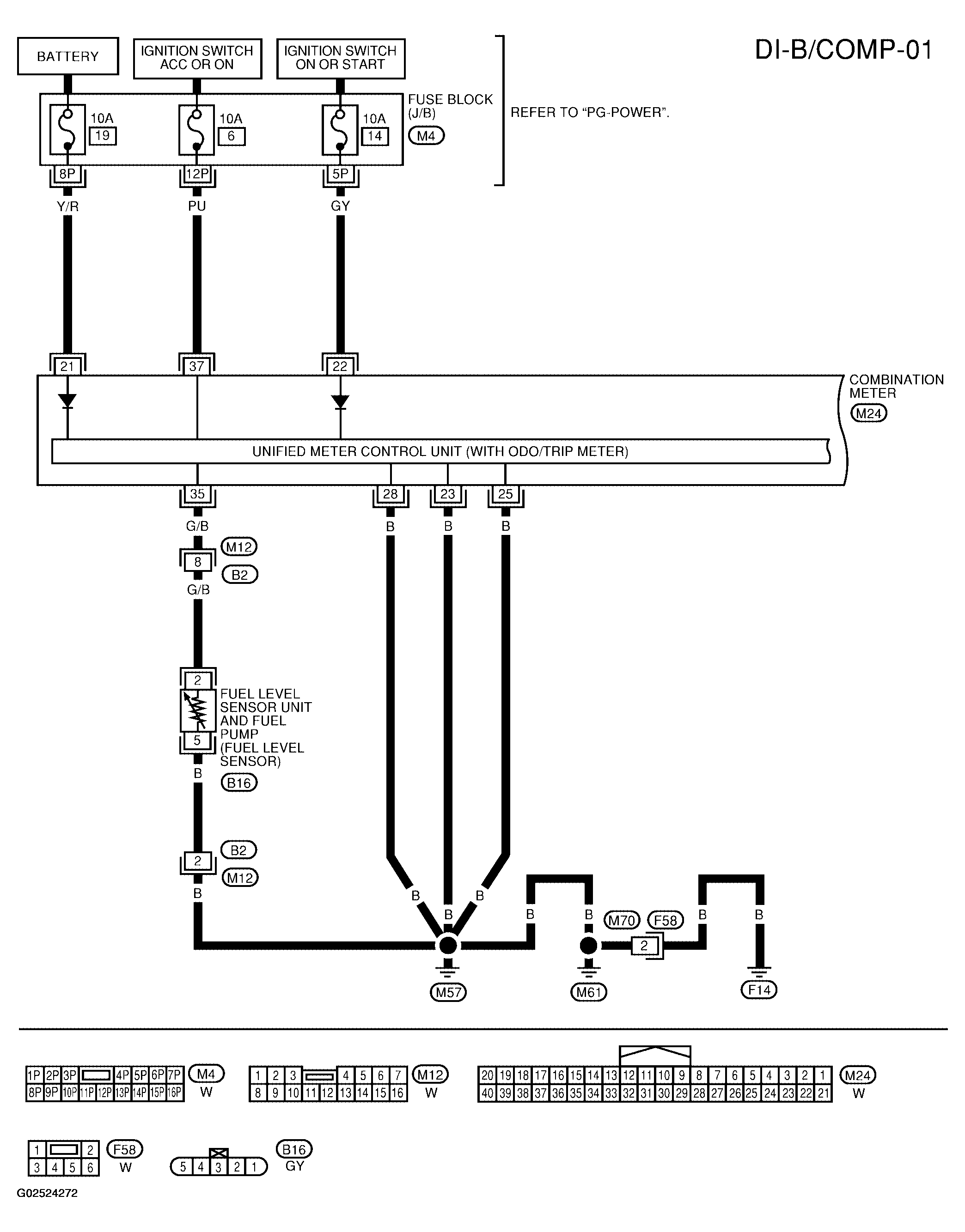

Fig 1: Wiring Diagram-B/COMP (DI-B/COMP-01)
Courtesy of NISSAN MOTOR CO., U.S.A.

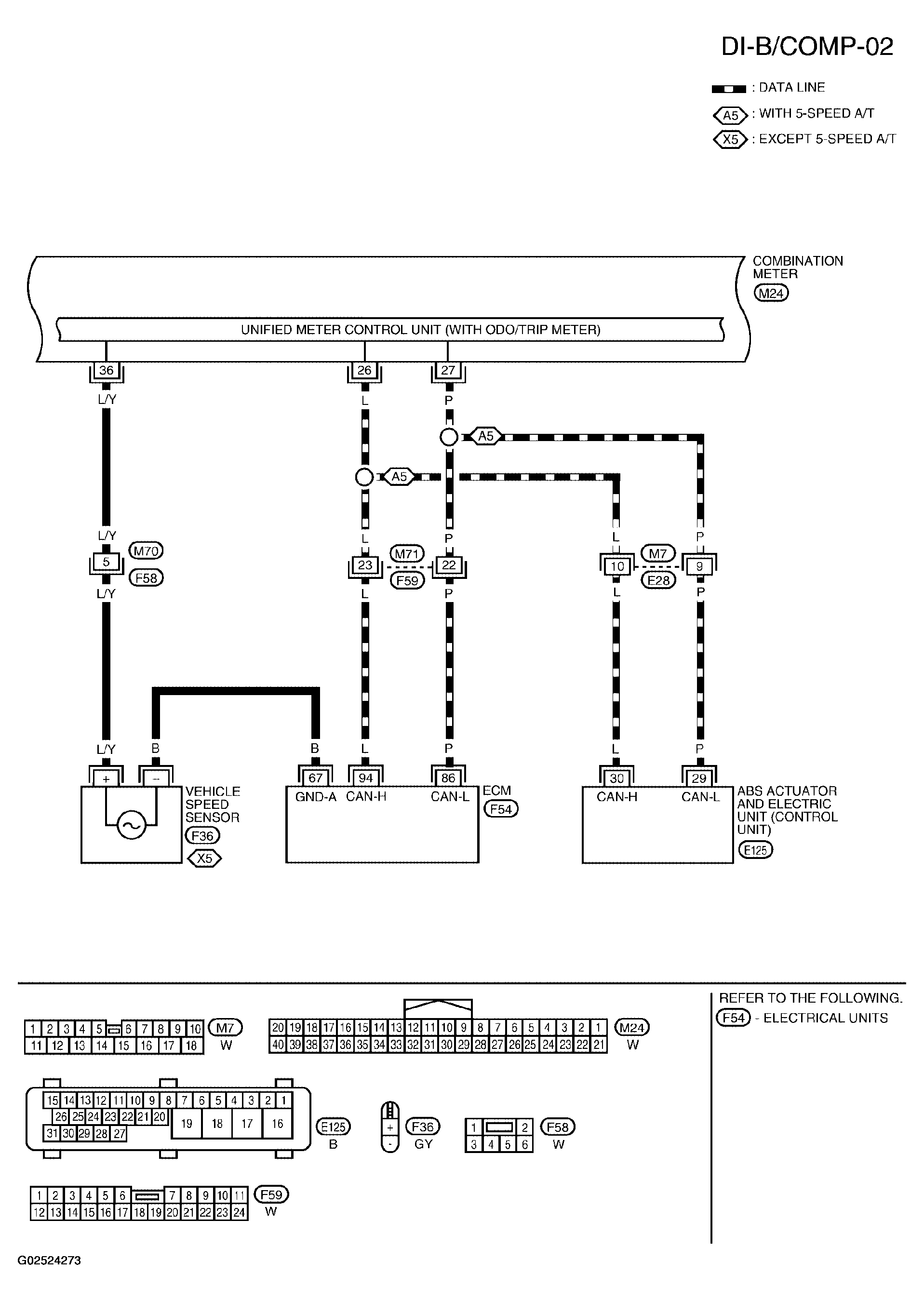

Fig 2: Wiring Diagram-B/COMP (DI-B/COMP-02)
Courtesy of NISSAN MOTOR CO., U.S.A.

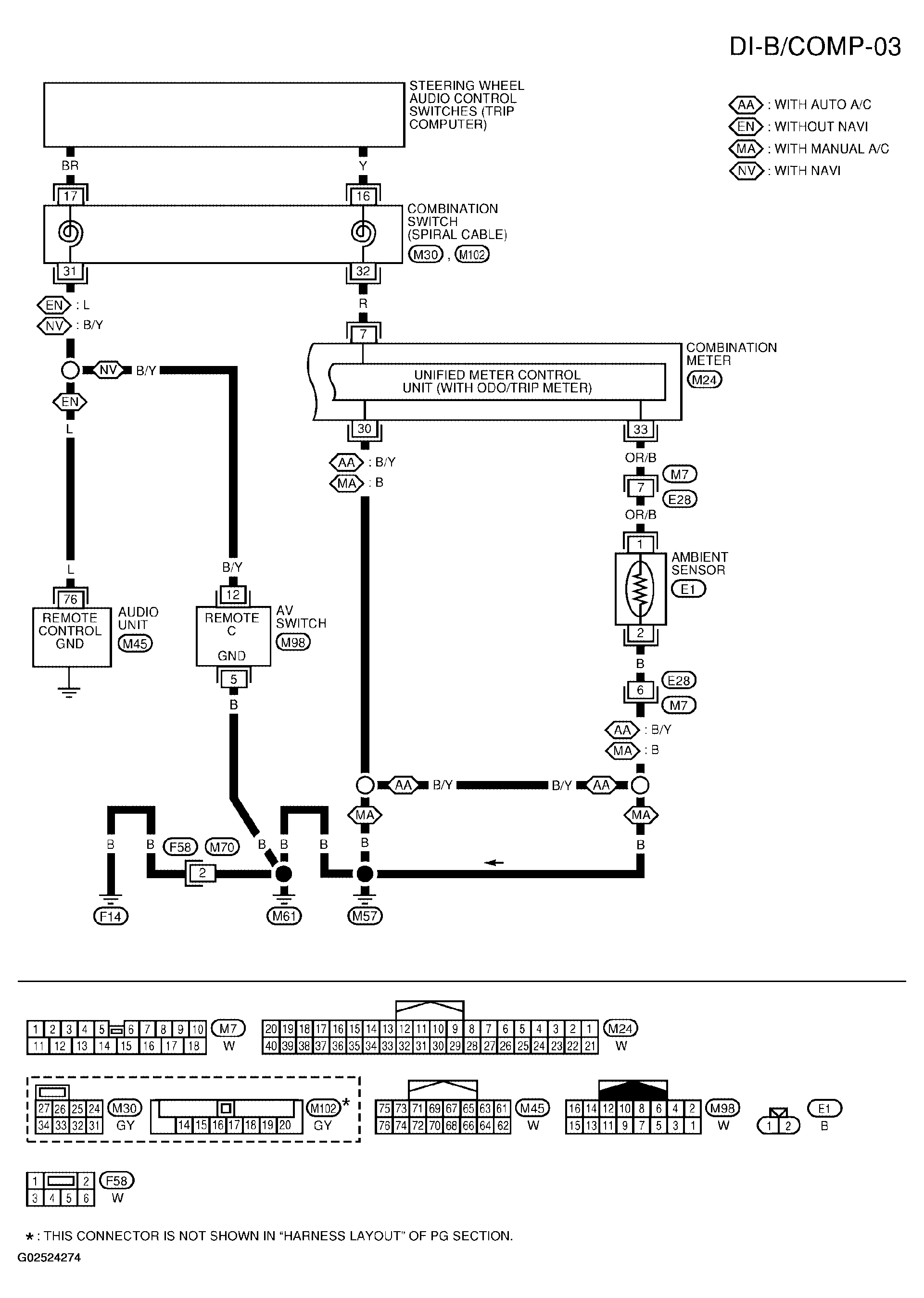

Fig 3: Wiring Diagram-B/COMP (DI-B/COMP-03)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
