Except 5-Speed A/T

CHECK VEHICLE SPEED SENSOR CIRCUITS
1. Remove vehicle speed sensor.
2. Turn ignition switch ON.
3. Rotate vehicle speed sensor while checking voltage between combination meter harness connector M24 terminal 36 (L/Y) and ECM harness connector F54 terminal 67 (B).

  Fig 1: Voltage Check Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

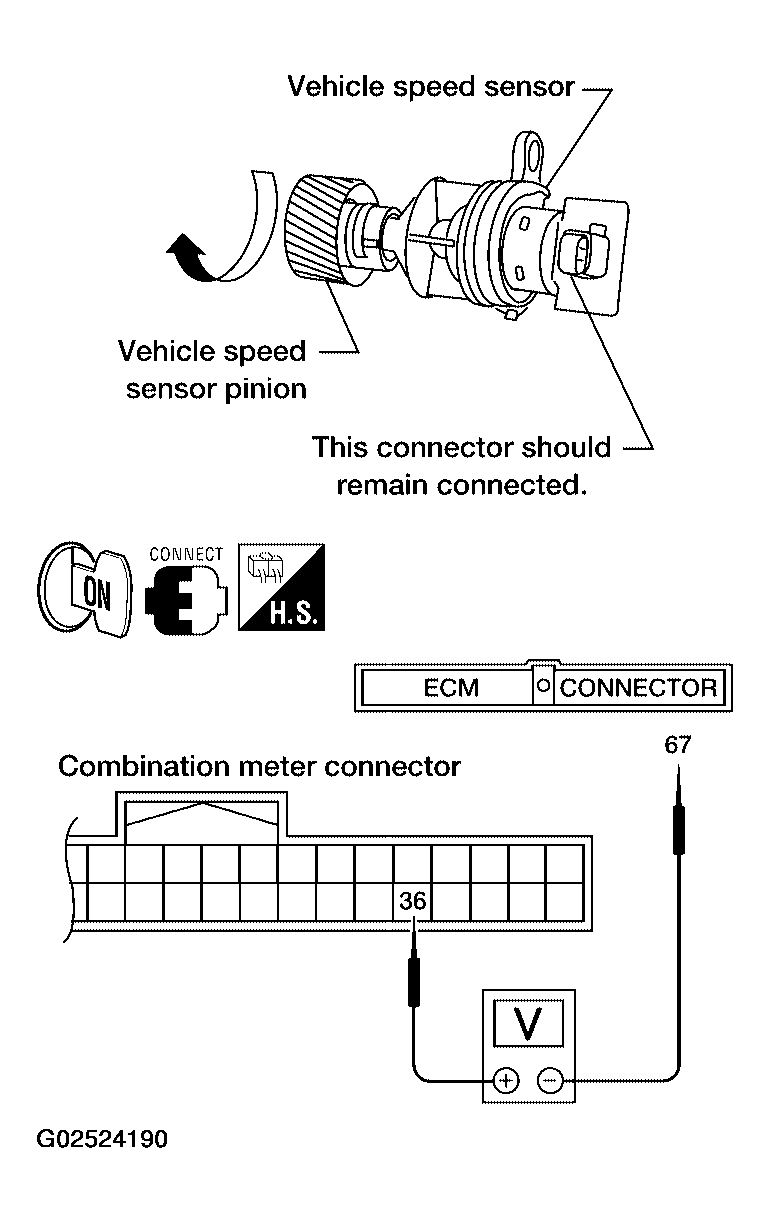

  Fig 2: Checking Voltage Between Combination Meter Connector M24 Terminal 36 (L/Y) And ECM Connector F54 Terminal 67 (B)
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace combination meter. Refer to "COMBINATION METER ".
- NG: GO TO 2.
CHECK VEHICLE SPEED SENSOR
1. Turn ignition switch OFF.
2. Disconnect vehicle speed sensor connector.
3. Check resistance between vehicle speed sensor terminals + and -.

  Fig 3: Resistance Check Chart
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Fig 4: Checking Resistance Between Vehicle Speed Sensor Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.

  OK or NG
  - OK: Check harness or connector between combination meter, vehicle speed sensor and ECM.
  - NG: Replace vehicle speed sensor.
