FixVault
Home
›
Nissan-Datsun
›
2005
›
Altima SE-R, Standard
›
Repair and Diagnosis
›
Engine Mechanical
›
Engine Lubrication System - VQ35DE
›
Lubrication System
›
System Drawing
System Drawing

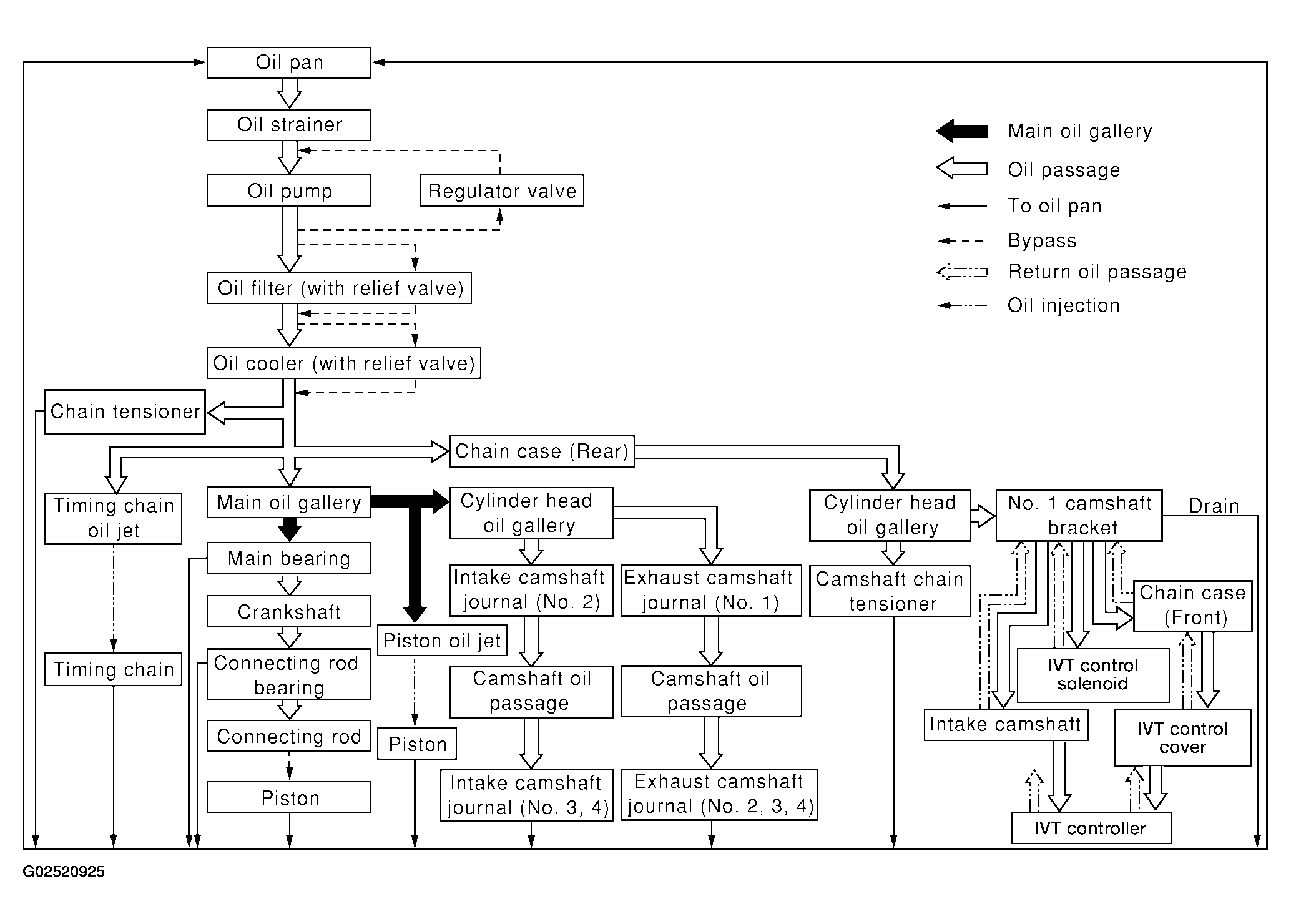

Fig 1: Lubrication System Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
