DTC P0117, P0118: ECT Sensor: Wiring Diagram

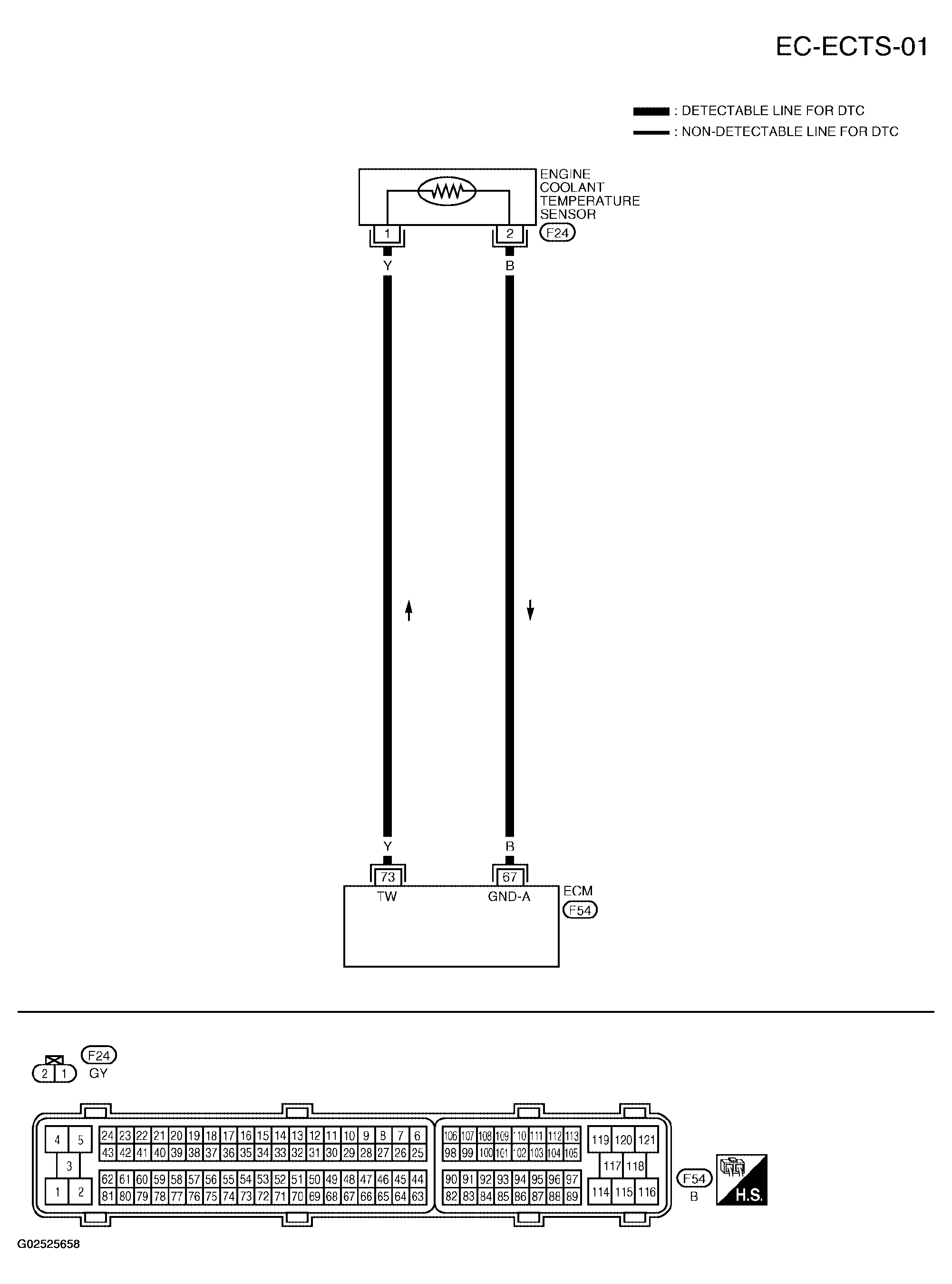

Fig 1: Wiring Diagram EC-ECTS-01
G02525658Courtesy of NISSAN MOTOR CO., U.S.A.
