Engine Control System - VQ35DE
›
Trouble Diagnosis
›
Trouble Diagnosis Introduction
›
Work Flow
›
Overall Sequence
Overall Sequence

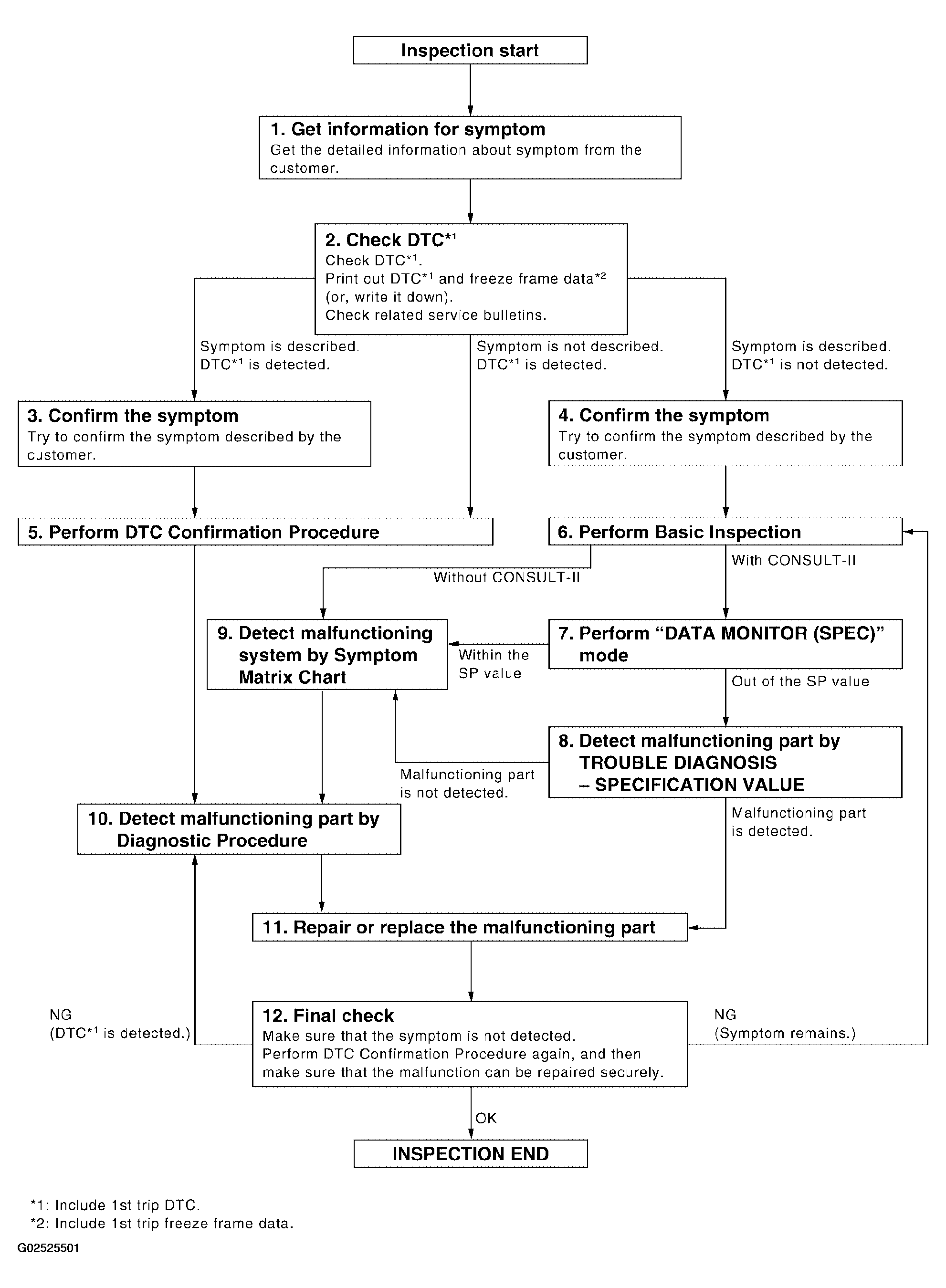

Fig 1: Problem Symptom Diagnostic Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
