Disassembly And Assembly: Notes

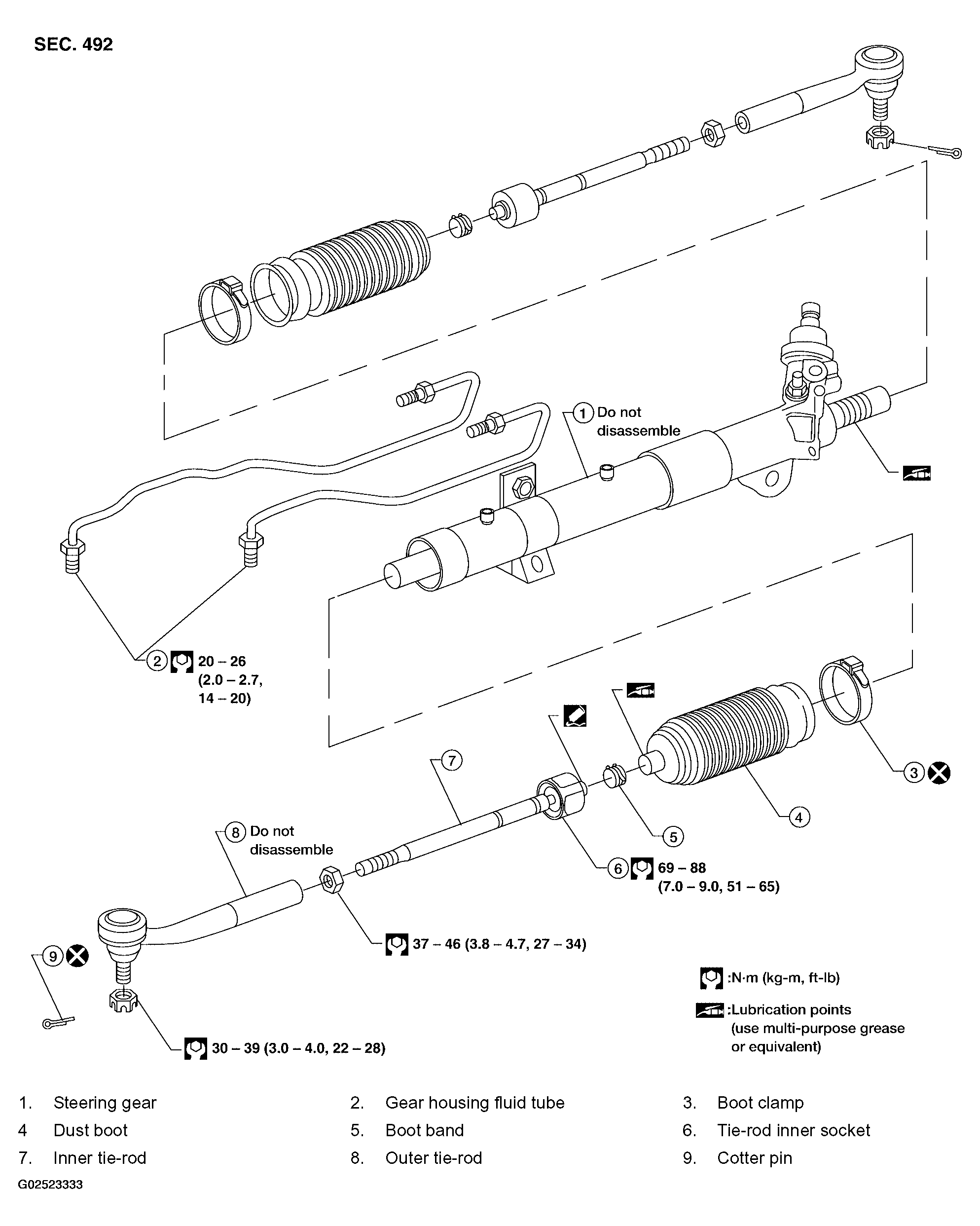

Fig 1: Exploded View Of Steering Gear
G02523333Courtesy of NISSAN MOTOR CO., U.S.A.
