Removal And Installation: Installation

Installation is in the reverse order of removal.

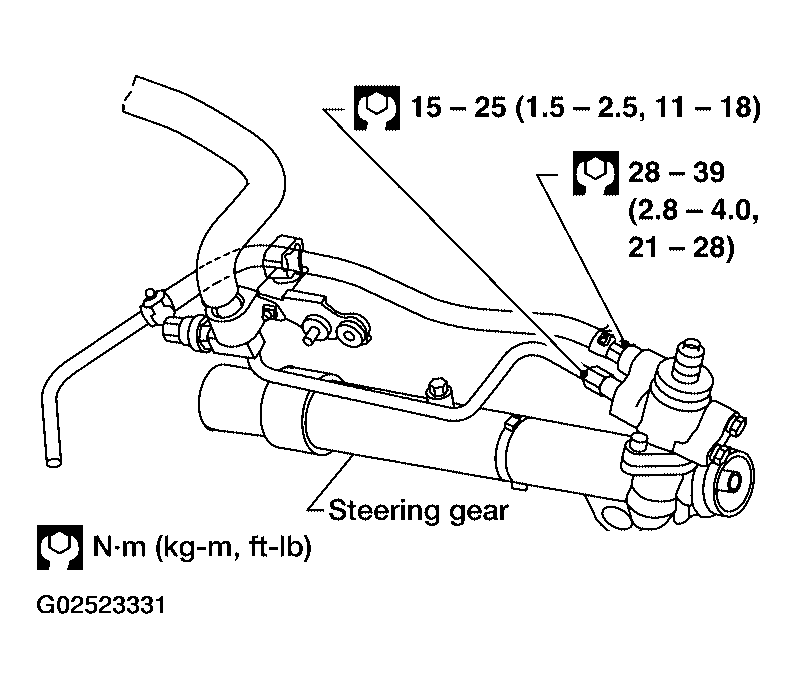

Install pipe connector.
Use the specified tightening torque when installing the high-pressure and low-pressure pipe connections. Excessive tightening will damage threads of connection or O-ring.

Fig 1: Installing Pipe Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
The O-ring in low-pressure pipe connector is larger than that in high-pressure connector. Take care to install the proper O-ring.

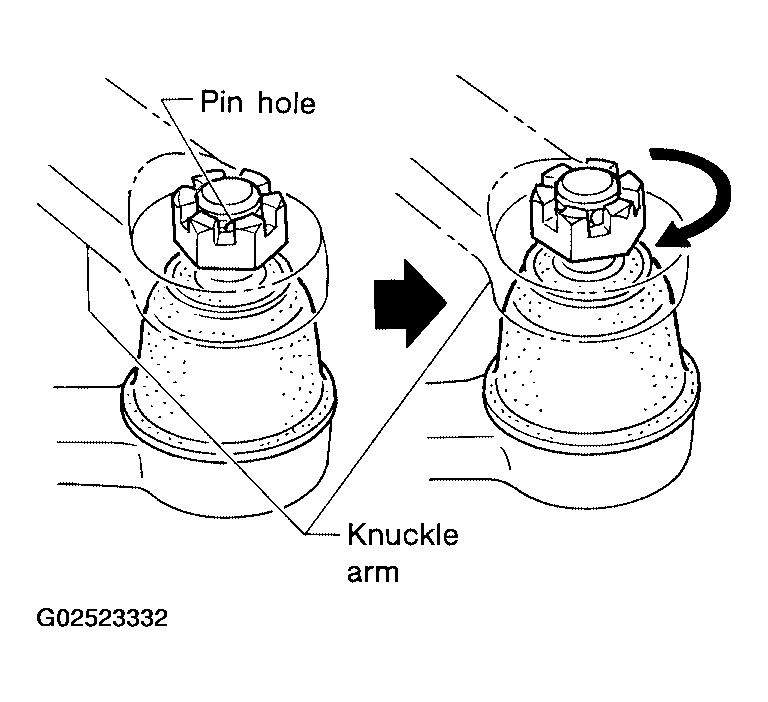

Initially, tighten nut on tie-rod outer socket and knuckle arm to specification. Then tighten further to align nut groove with first pin hole so that the cotter pin can be installed.
Outer tie-rod grooved nut : 29 - 39 N.m (3 - 4 kg-m, 22 - 29 ft-lb)

CAUTION: Tightening torque must not exceed 49 N.m (5 kg-m, 36 ft-lb).

Fig 2: Tightening Nut On Tie-Rod

Courtesy of NISSAN MOTOR CO., U.S.A.
