DTC P1122: Electric Throttle Control Function: Wiring Diagram

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS

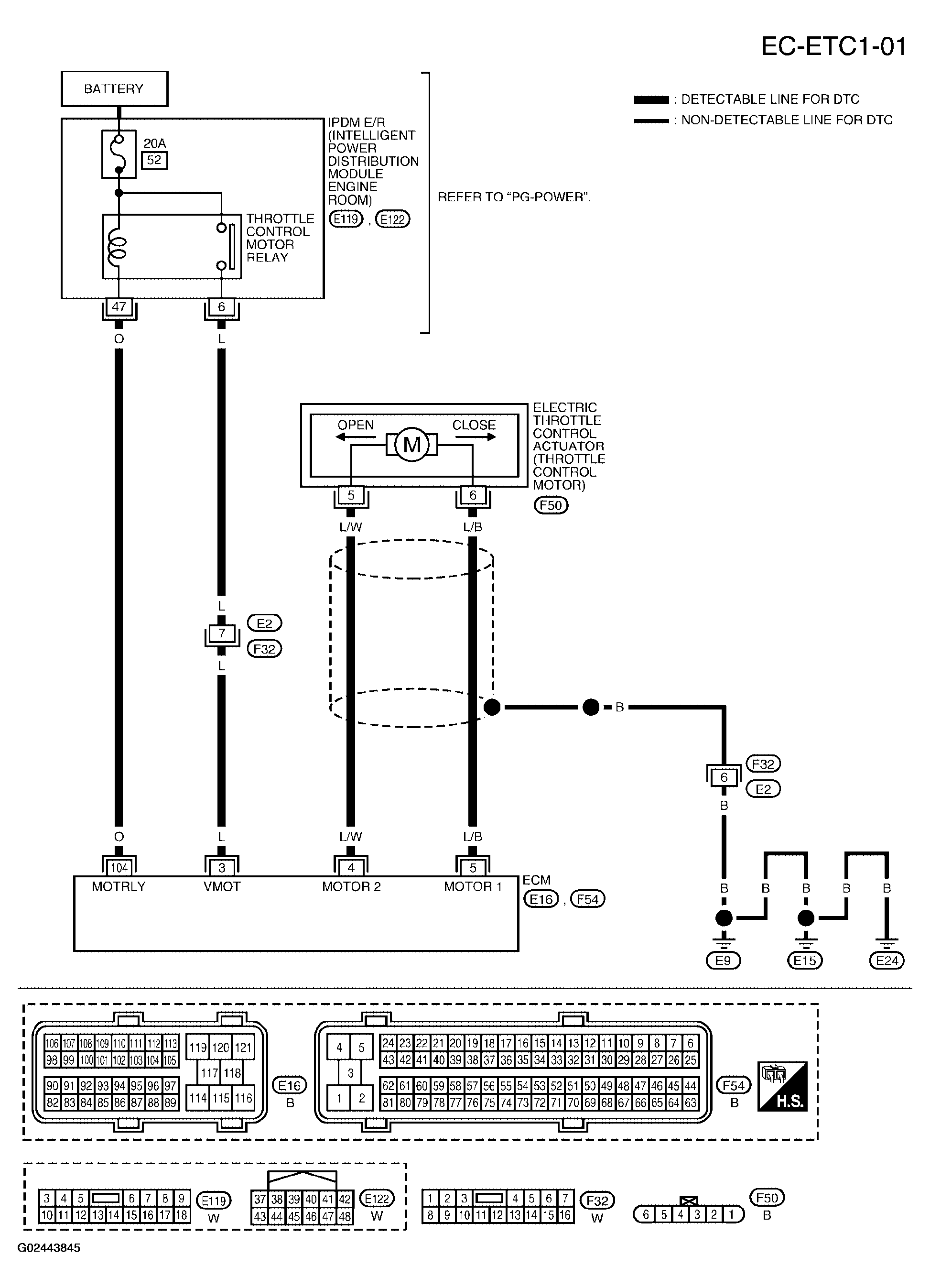

Fig 1: Wiring Diagram - (EC-ETC1-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

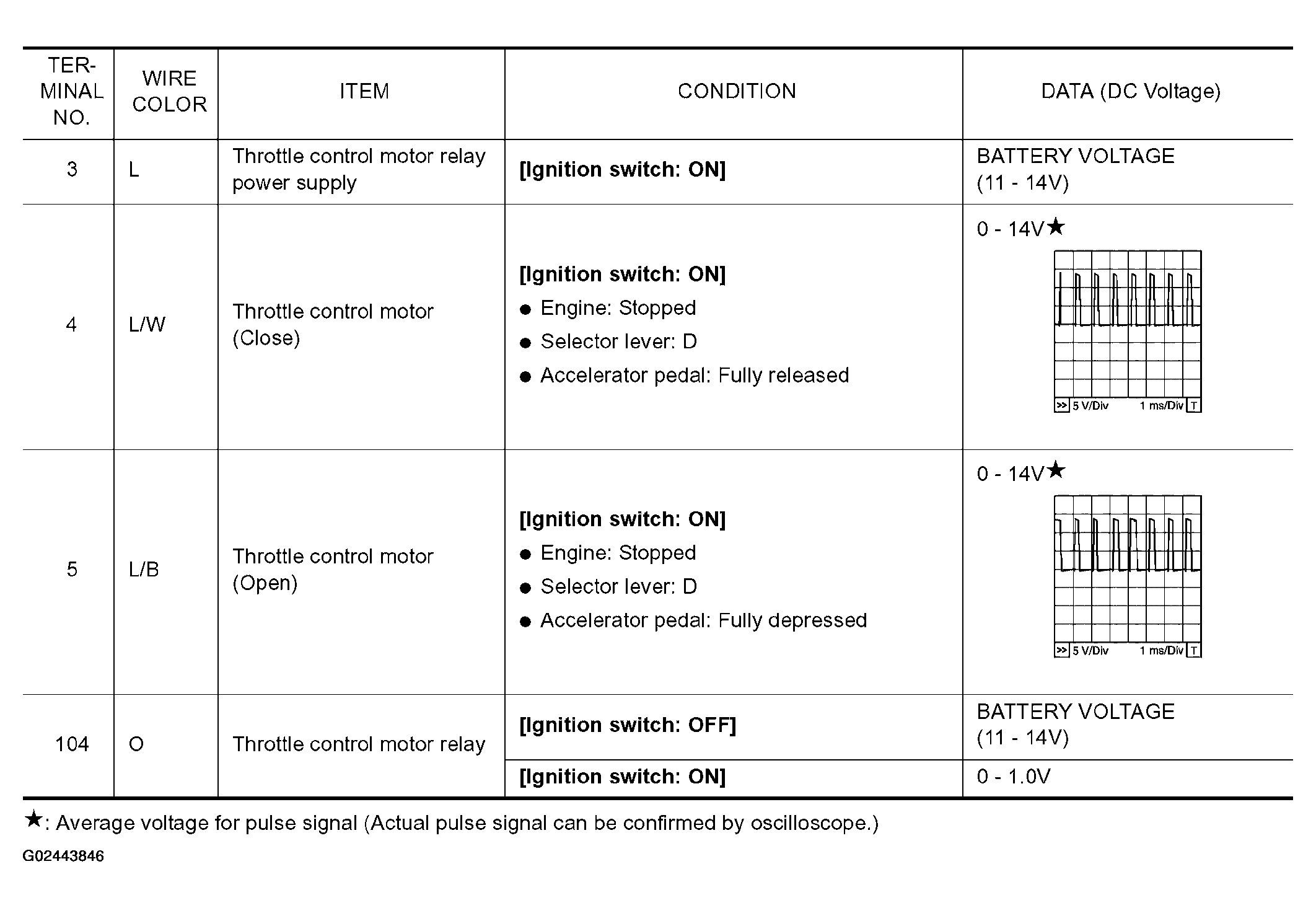

Fig 2: ECM Ground Terminals Input/Output Voltage Reference Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
