Armada LE, 4WD
›
Repair and Diagnosis
›
Transmission
›
Transfer Case
›
All-Mode 4WD System
›
System Description
›
Control System
›
Hydraulic Control Circuits
Hydraulic Control Circuits

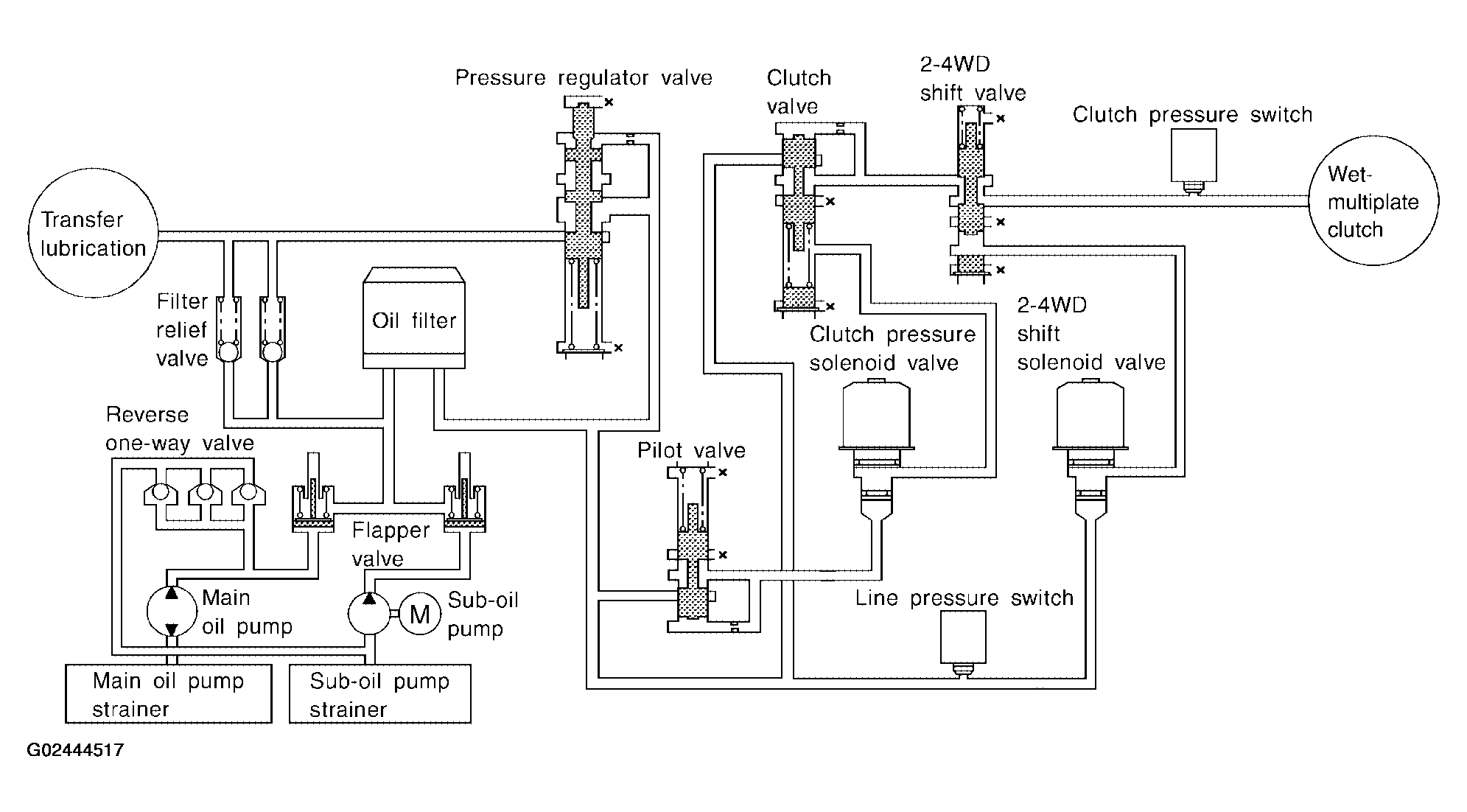

Fig 1: Hydraulic Control Circuits - Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
