All-Mode 4WD System
›
System Description
›
Control System
›
Notes
Control System: Notes

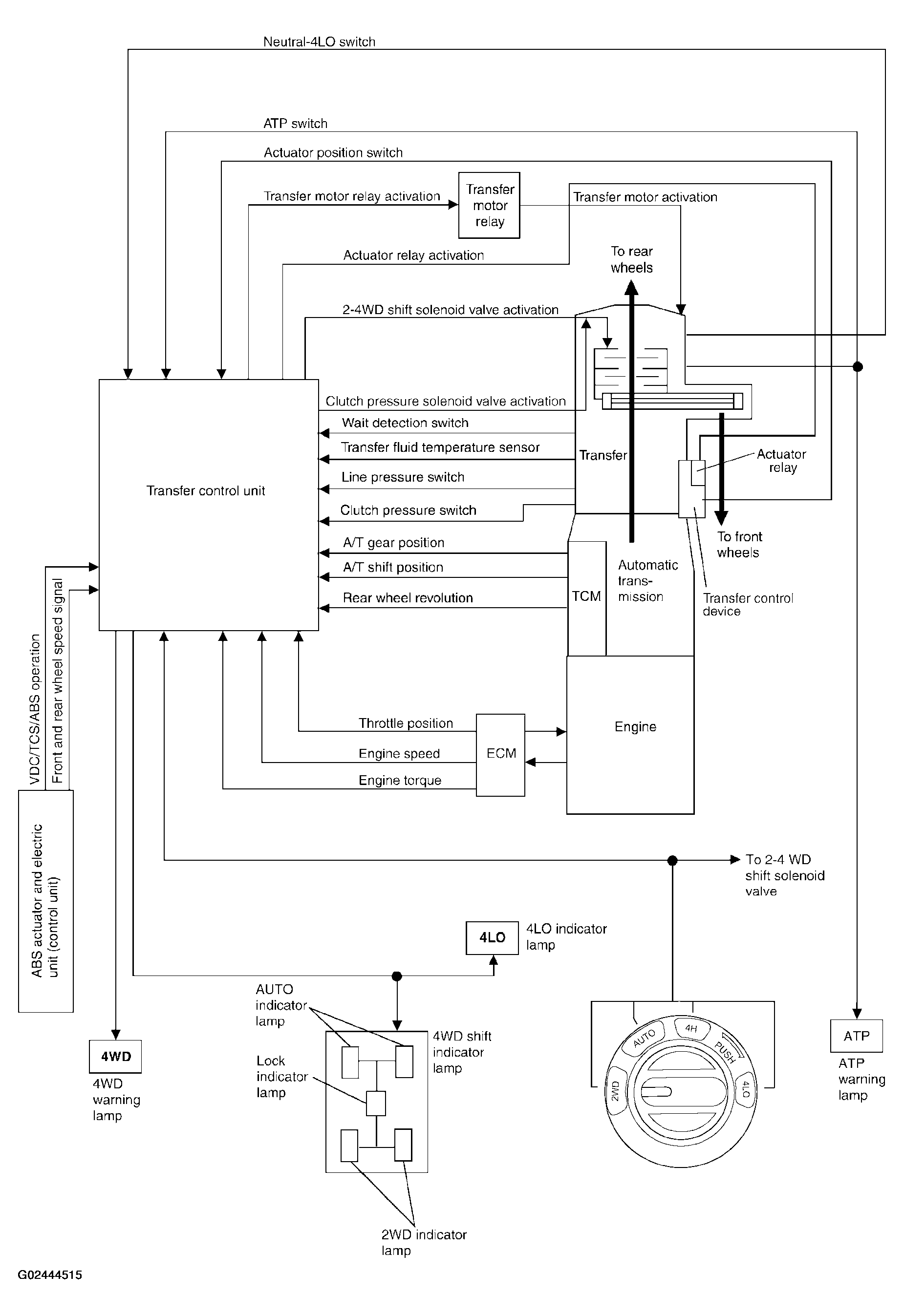

Fig 1: Control System Description Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
