System Diagram: Notes

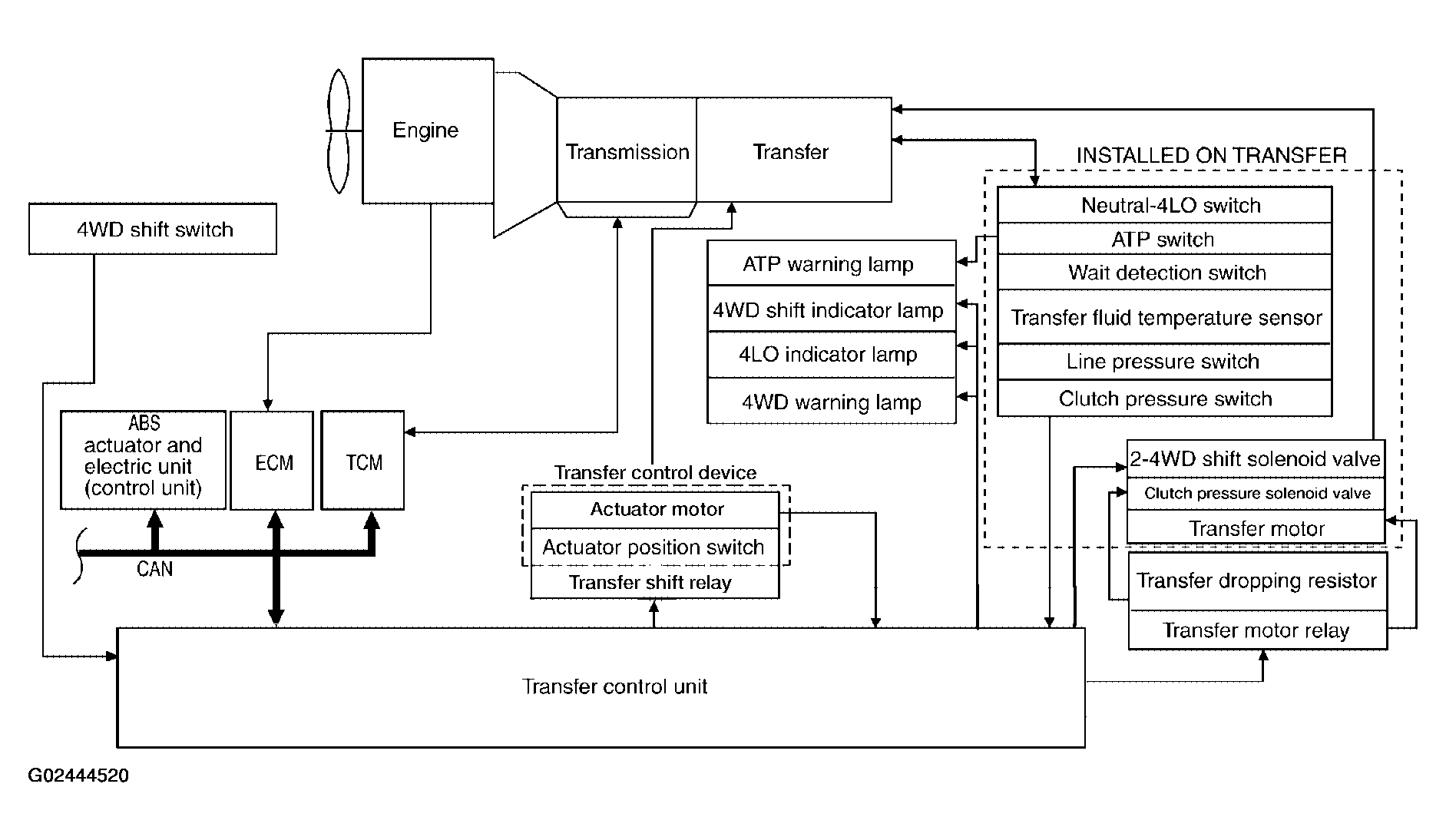

Fig 1: ATP Warning Lamp - System Diagram
G02444520Courtesy of NISSAN MOTOR CO., U.S.A.
