Wait Detection Switch
›
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Data are reference value.

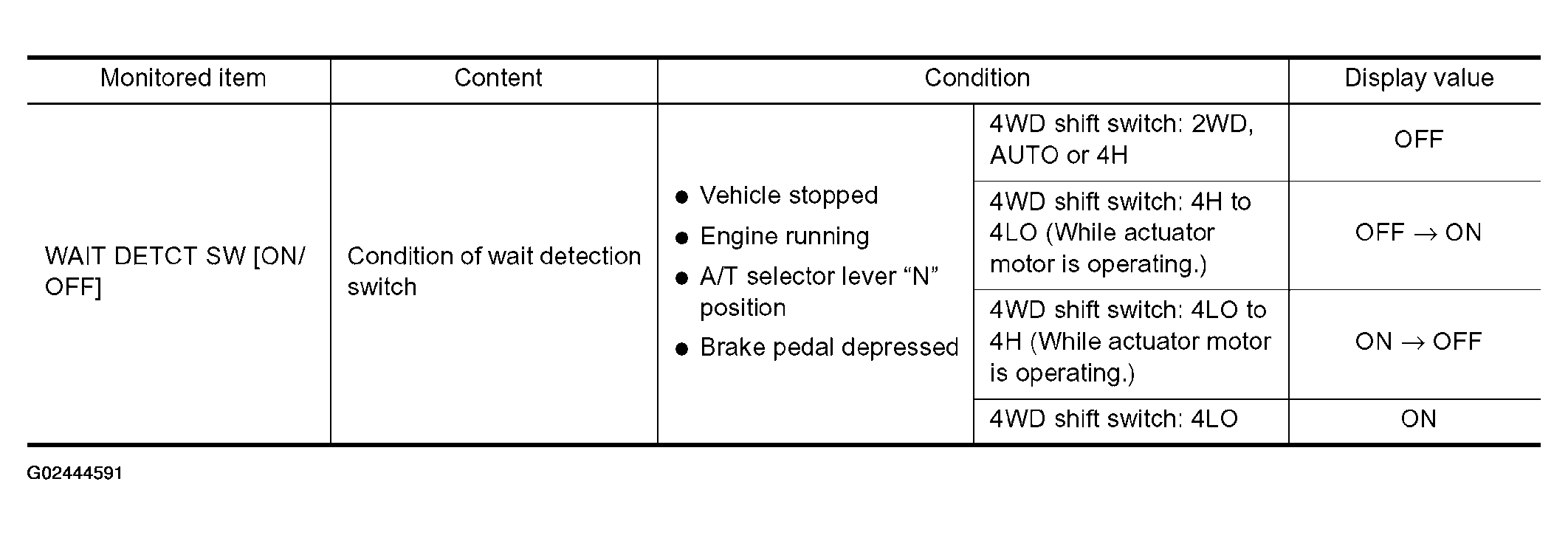

Fig 1: CONSULT-II Reference Value In Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
