Program Loading of NAVI Control Unit
Program Loading of NAVI Control Unit

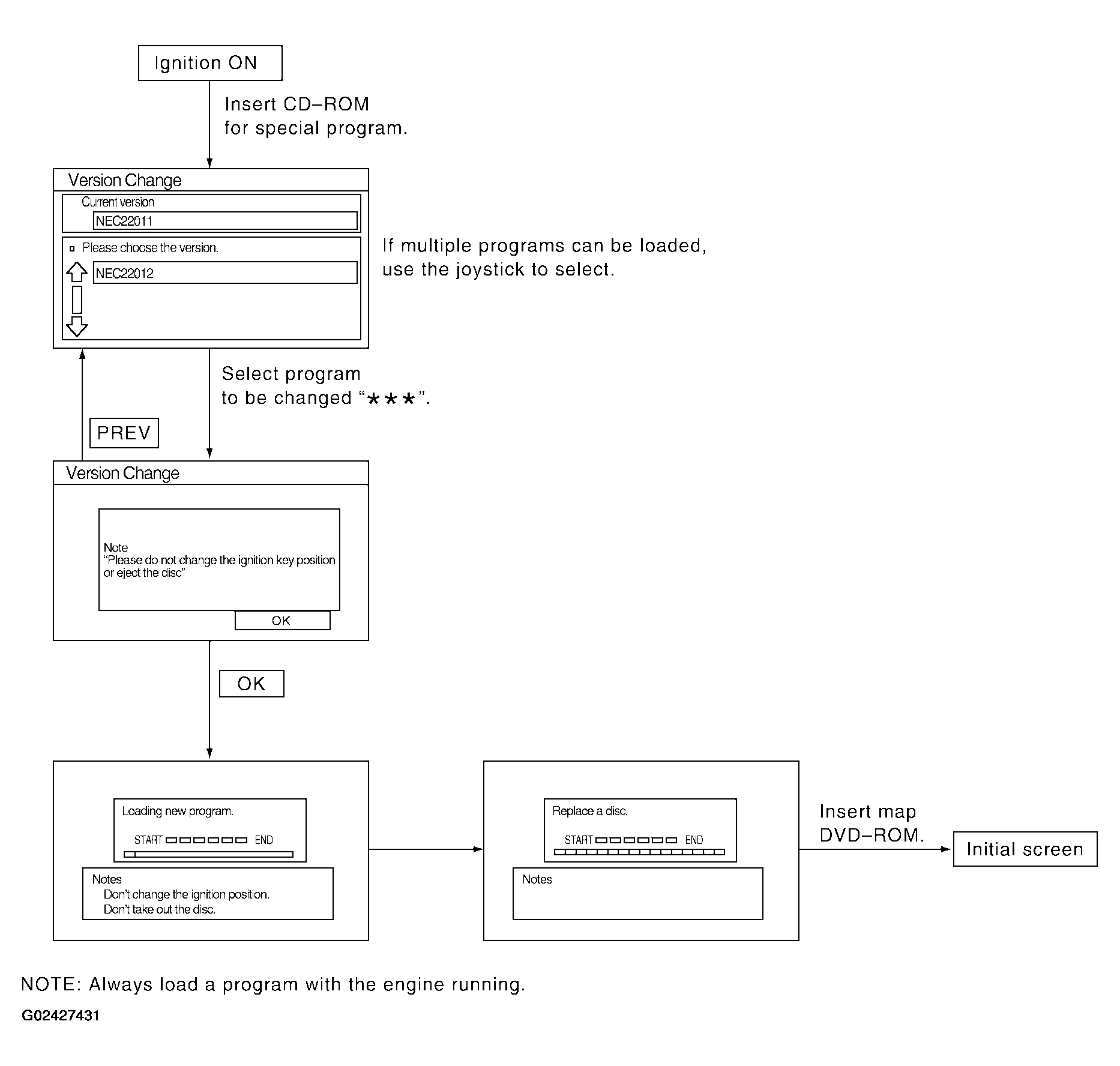

Fig 1: NAVI Control Unit Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
