Terminals and Reference Value for Display Control Unit
Terminals and Reference Value for Display Control Unit

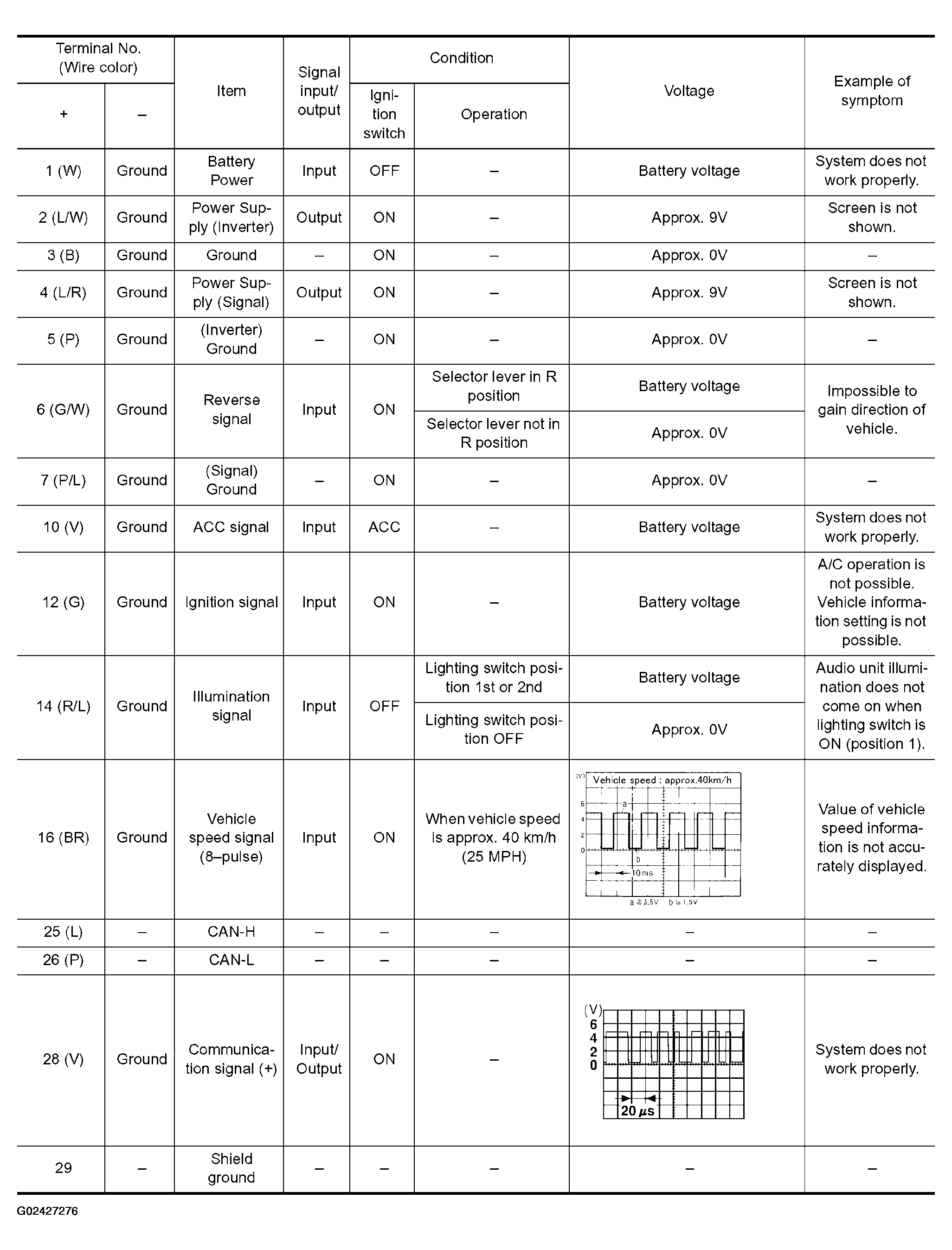

Fig 1: Connector Terminals Voltage Chart - Display Control Unit (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

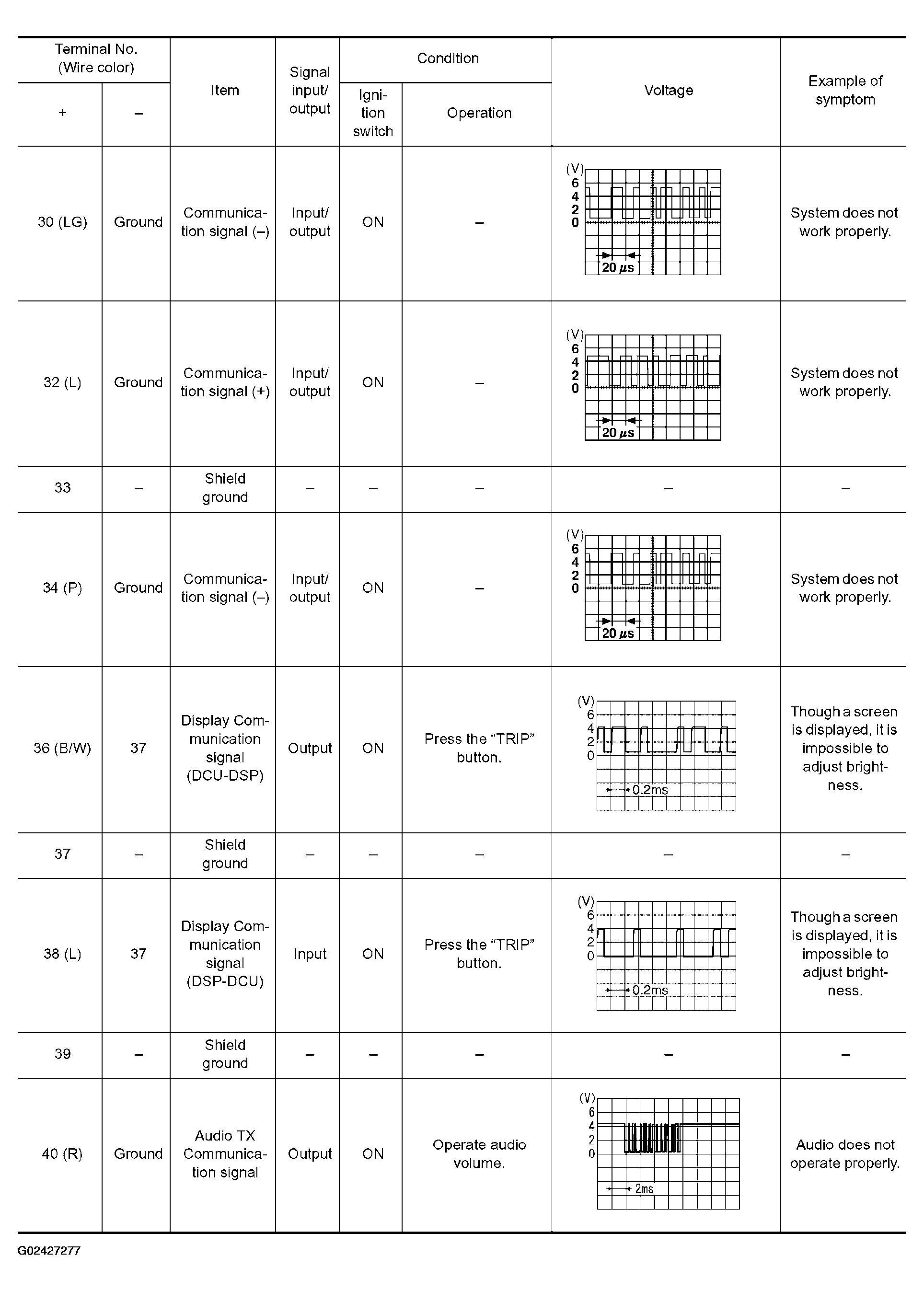

Fig 2: Connector Terminals Voltage Chart - Display Control Unit (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

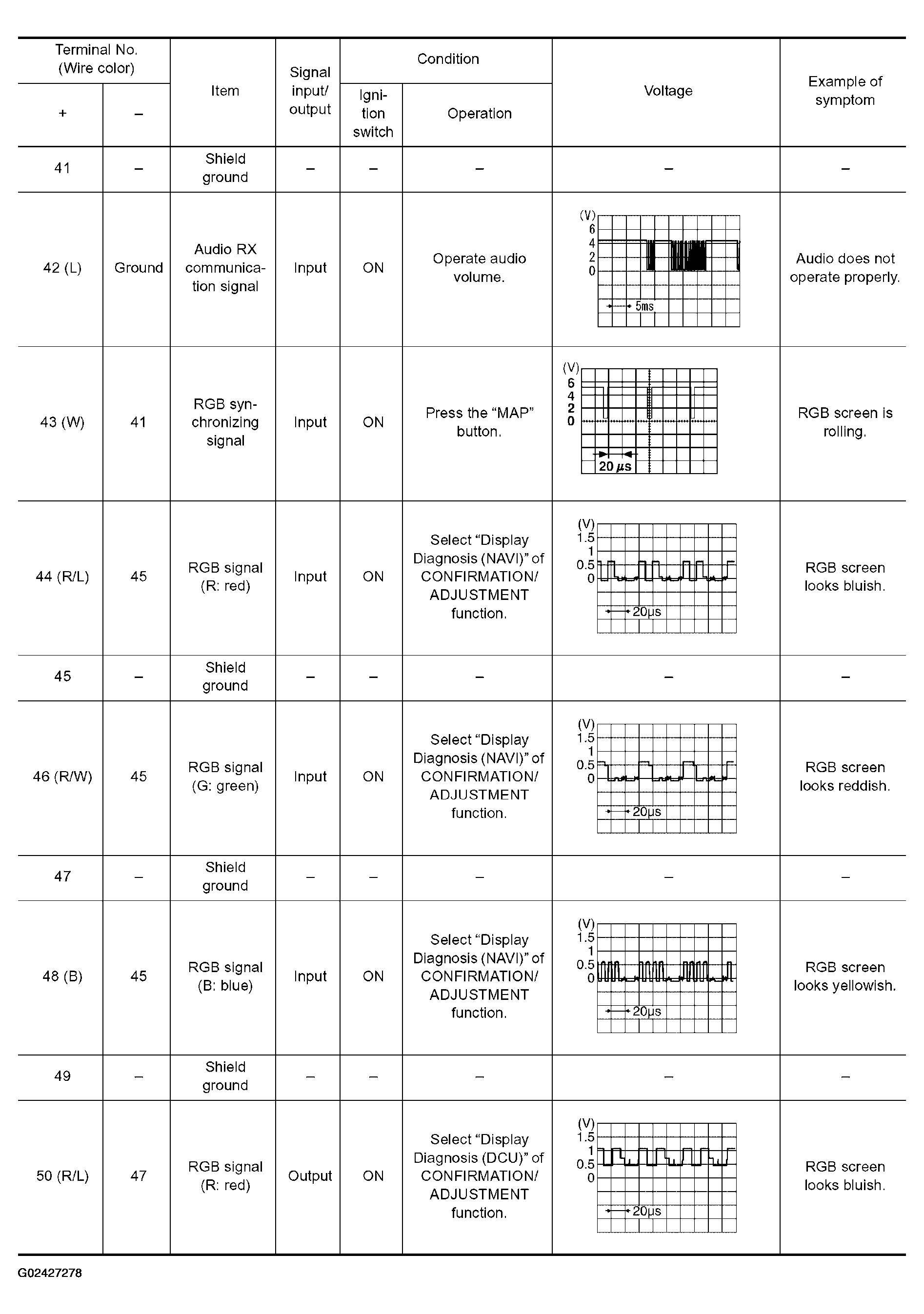

Fig 3: Connector Terminals Voltage Chart - Display Control Unit (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

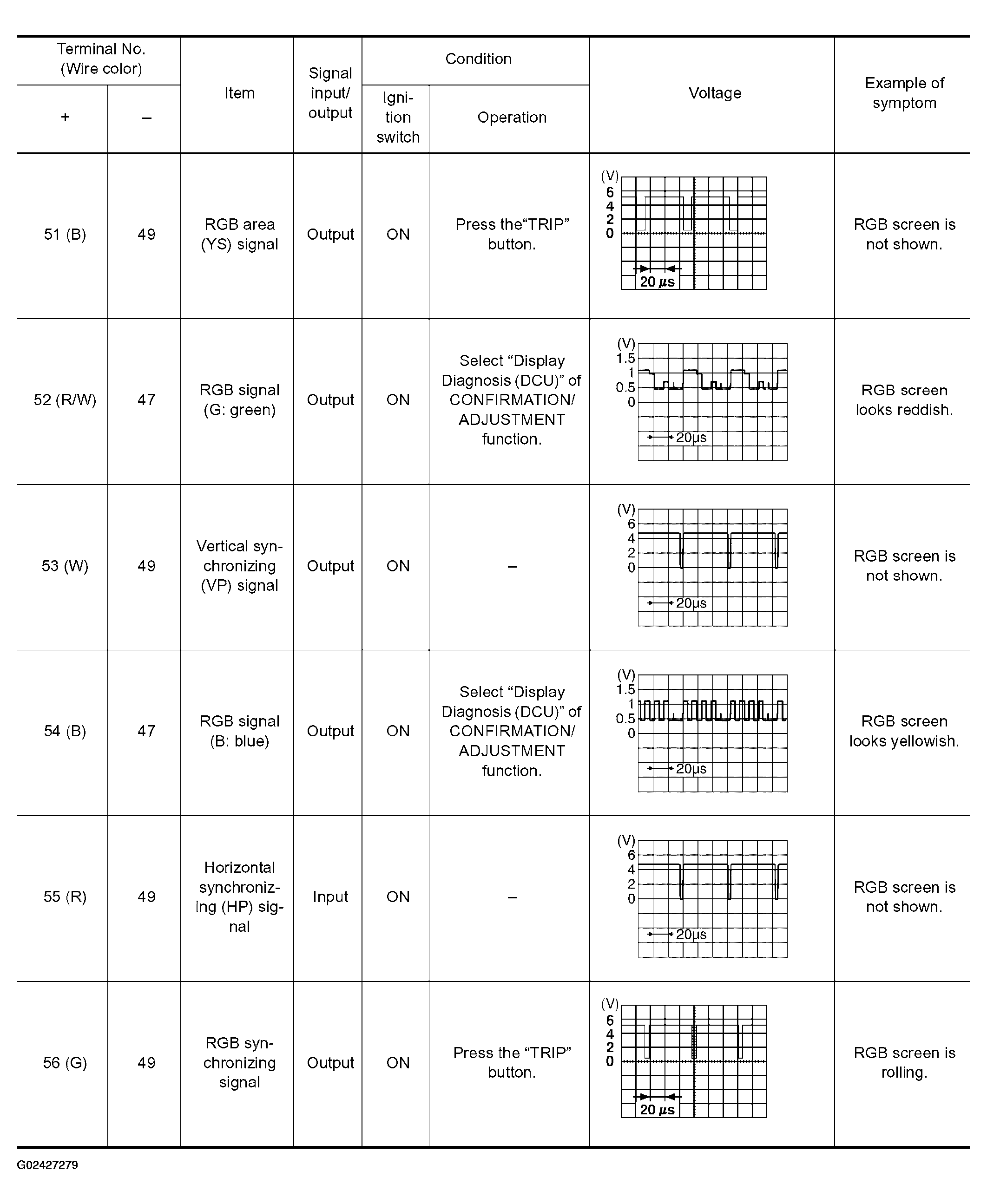

Fig 4: Connector Terminals Voltage Chart - Display Control Unit (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
