Disassembly and Assembly

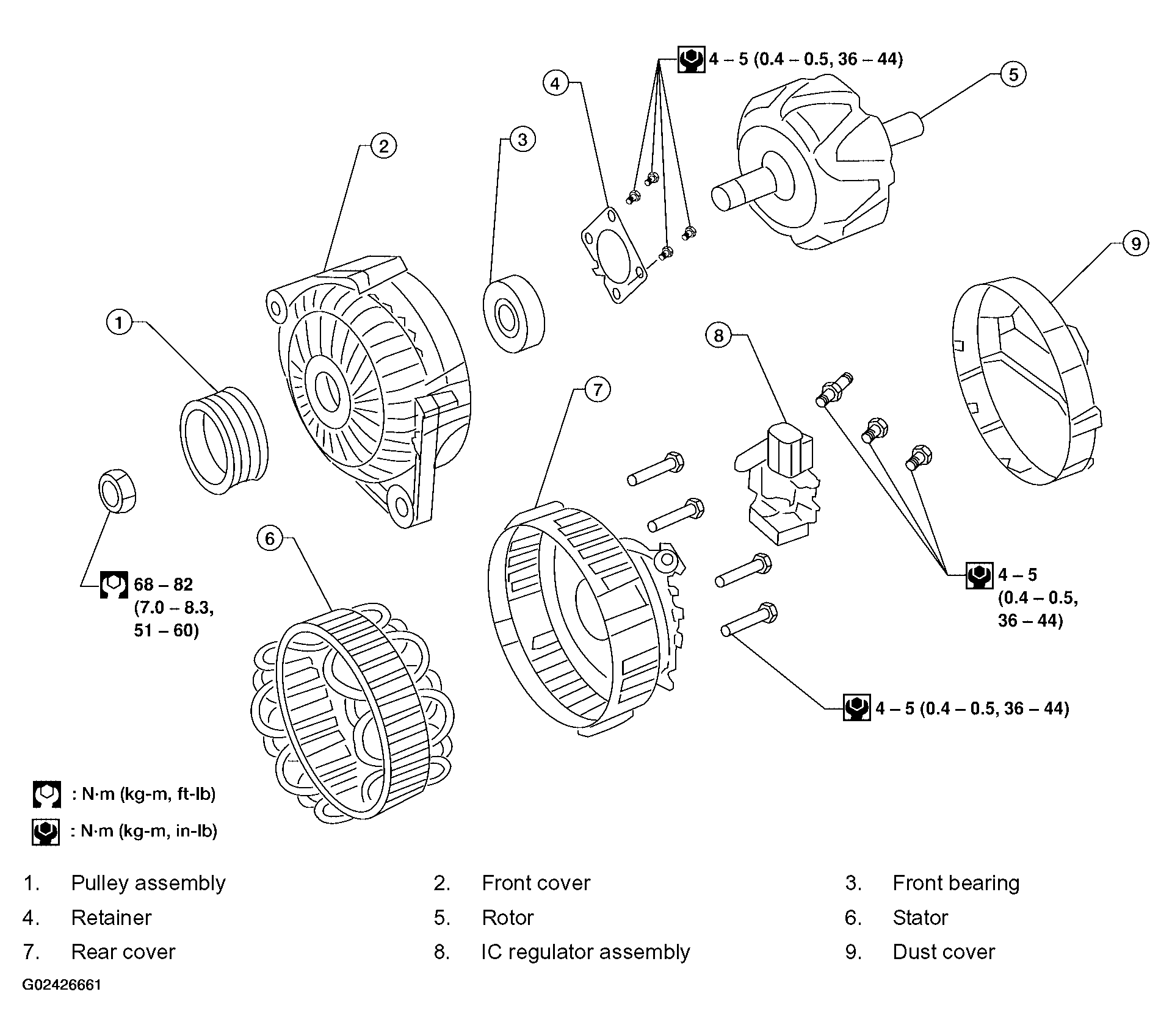

Fig 1: Exploded View Of Charging System With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
