Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

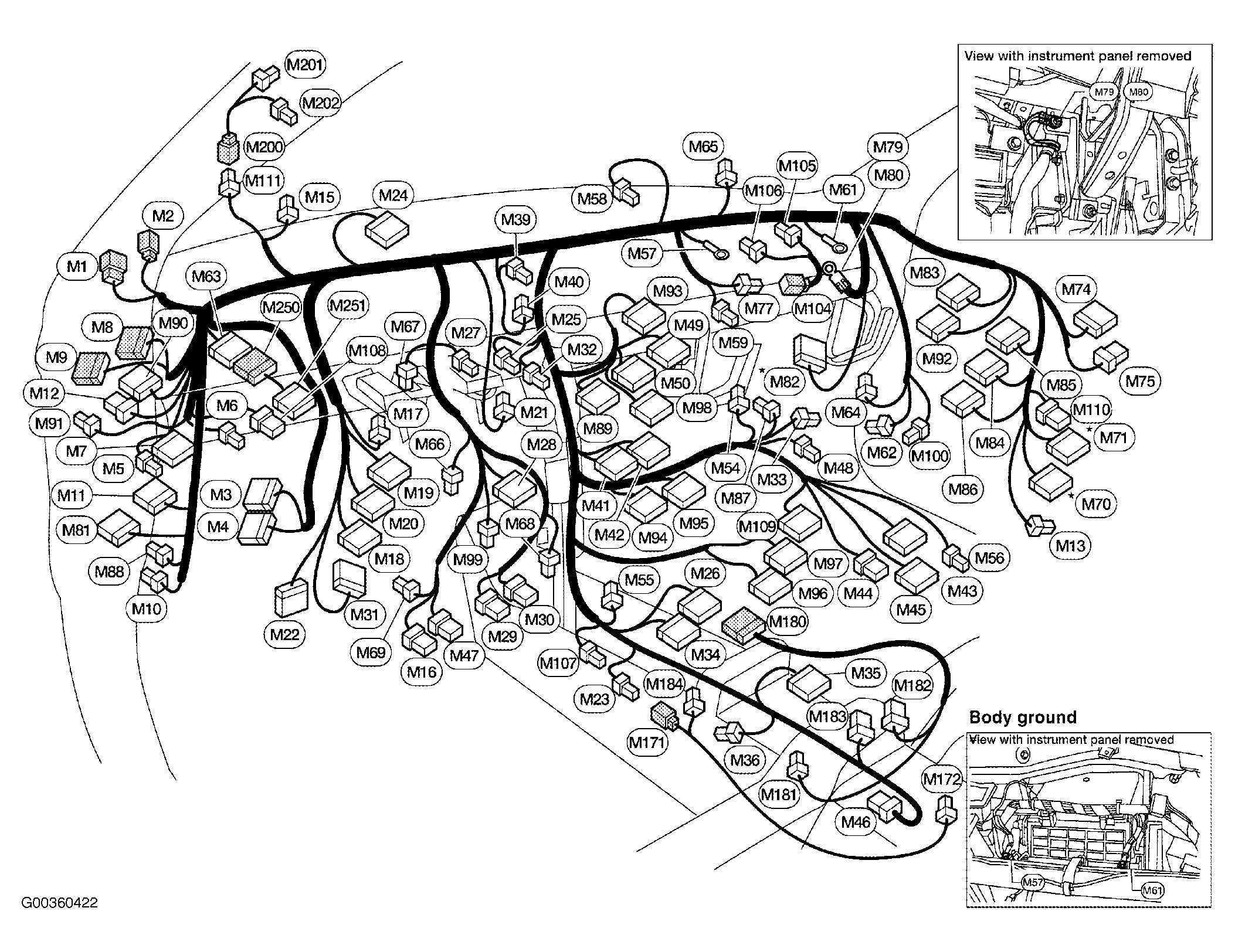

| Circuit Breaker (M17) | Behind left side of dash. See Figure . |

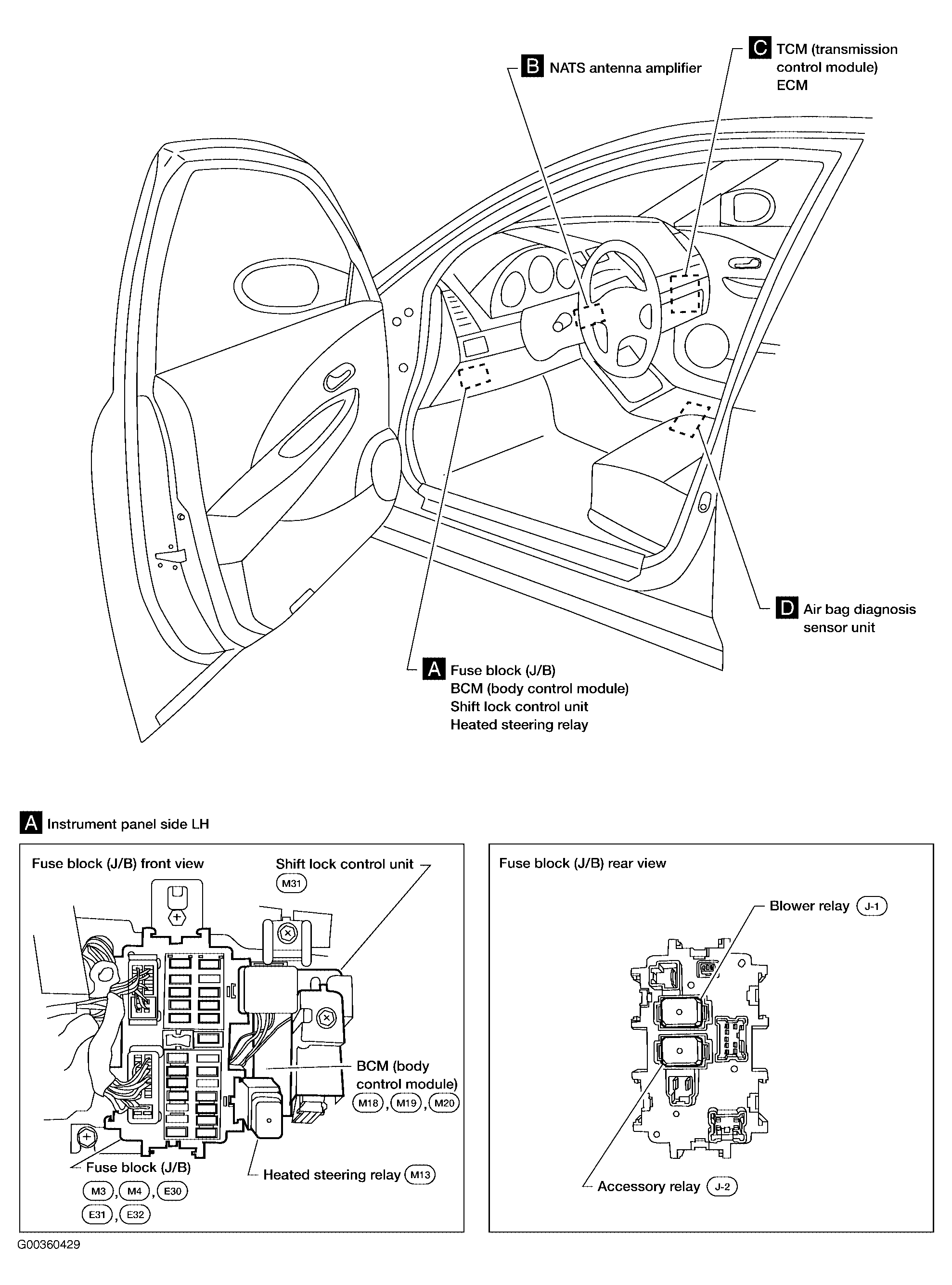

| Fuse Block (J/B) | Behind left side of dash. See Figure . |
| Fuse & Fusible Link Box | At left front of engine compartment. See Figure . |
| IPDM E/R | At right front of engine compartment. See Figure . |
